ABB AV2 User Manual

SUPPORT SERVICES
ADDITIONAL SPARE PARTS
9 - 8
Table 9-24. Bypass Valve Assembly (Optional)
Parts List (Part No. 5326945_1 — Fig. 9-2)
Item Part Number Description
1 5327226
_1 3-way valve
2 5326946
_1 Air line connection assy
3 195159
_3 Elbow connector
4 195727
_2 Brass nipple
5 195171
_3 Wheatherhead tee
6 1962833
_1 Designation plate
7 NBZAC16006 Screw, pan head
8 NTJAC09030 Lock washer
9 NLMAC16000 Nut, hex
10 1951041
_1 Sch pipe plug

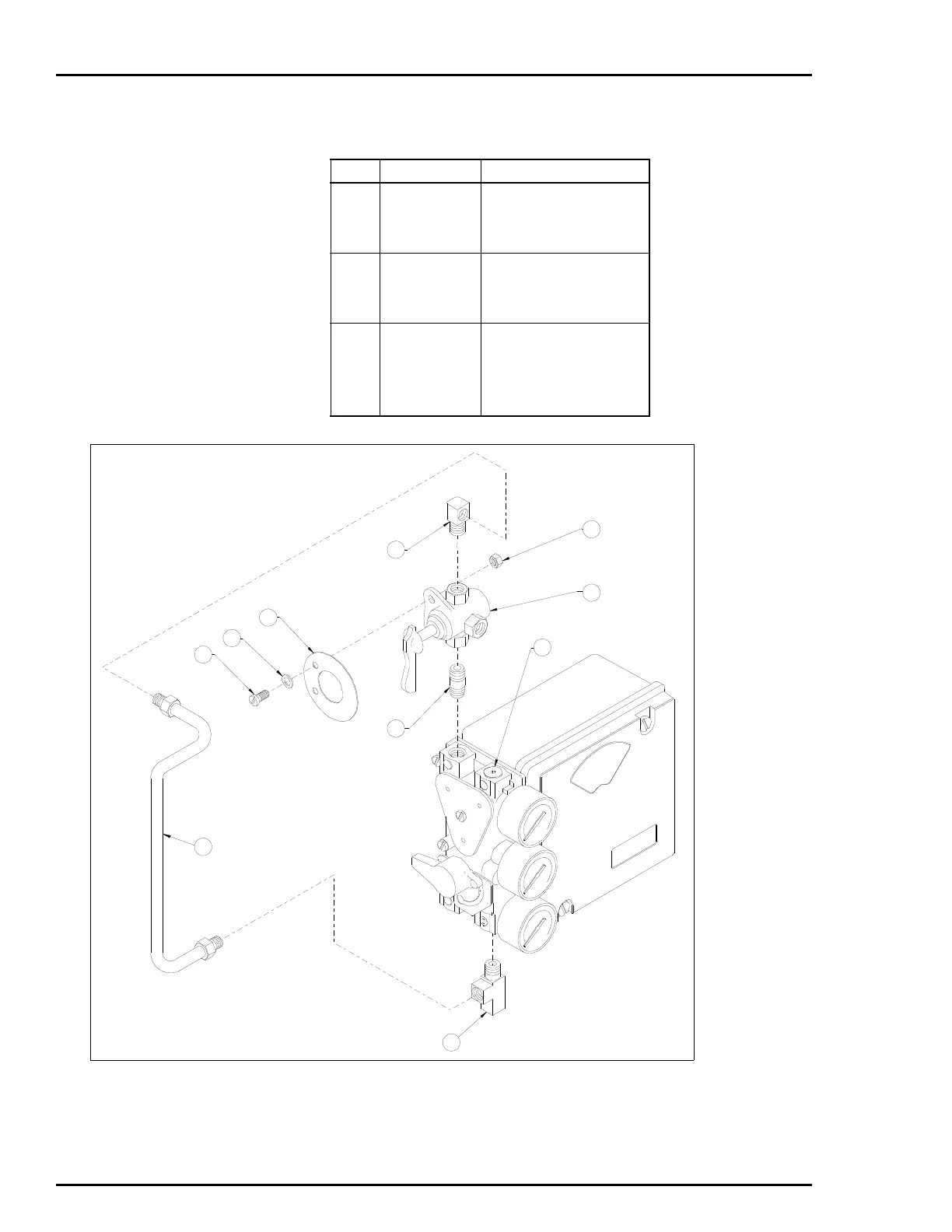

Figure 9-2. Bypass Valve Assembly
6
8
7
3
4
10
1
9
2
5
D5326945
T00786A
