ABB CL-LSR 12AC2 Series User Manual

Logic relay
16
1SVC 440 795 M0100

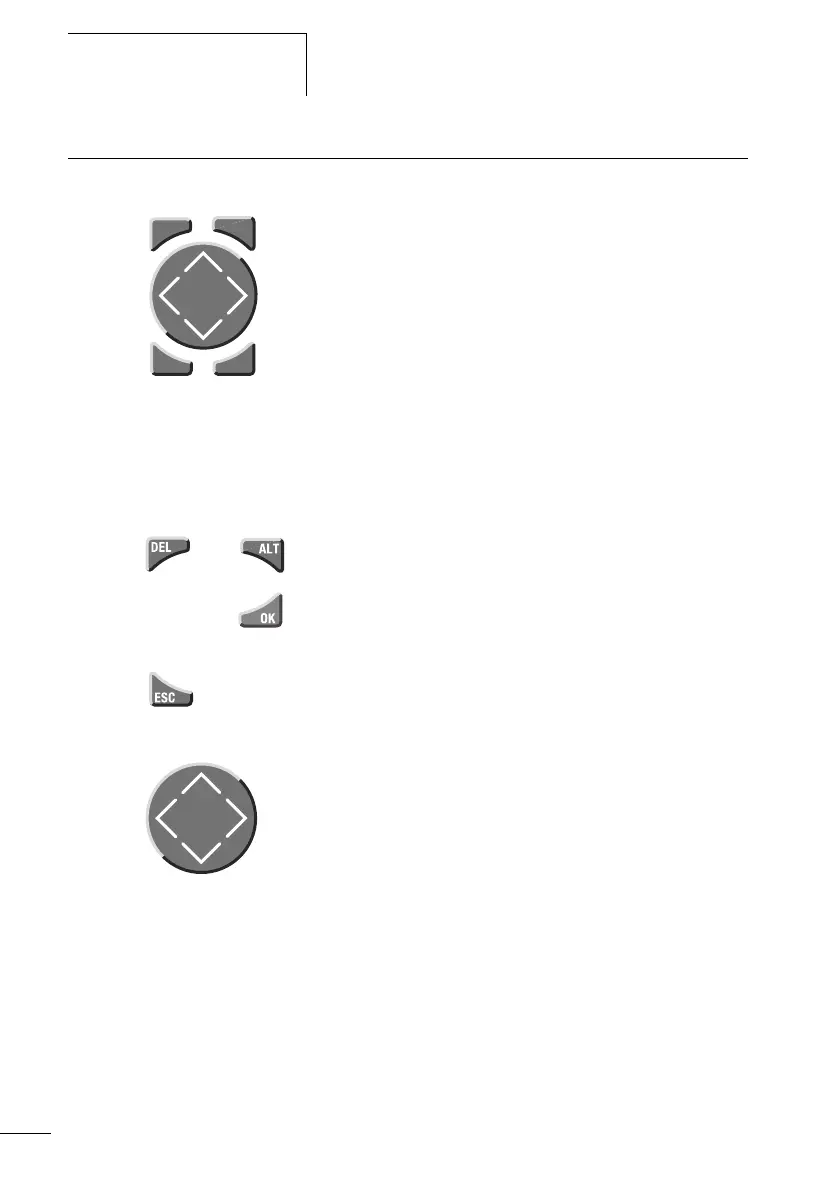

CL operating principles Keypad
Selecting menus and entering values
DEL: Delete object in circuit diagram
ALT: Special functions in circuit diagram, status display
Cursor buttons
úíÍÚ:
Move cursor
Select menu items
Set contact numbers, contacts and values
OK: Next menu level, save your entry
ESC: Previous menu level, cancel
ALT
DELDELDELDELDELDELDELDELDELDEL
ESC
OK
and
Show system menu
Move to next menu level
Call menu item
Activate, change, store entries
Move to previous menu level
Cancel entries since last OK
ÍÚ
úí
Change menu item
Change value
Change place
P buttons function:
ú
í
Input P1
Input P3
Í
Ú
Input P2
Input P4
