CL-SOFT
243
1SVC 440 795 M0100
CL-SOFT CL-SOFT is a PC program with which you can create, store,
test and manage CL circuit diagrams.

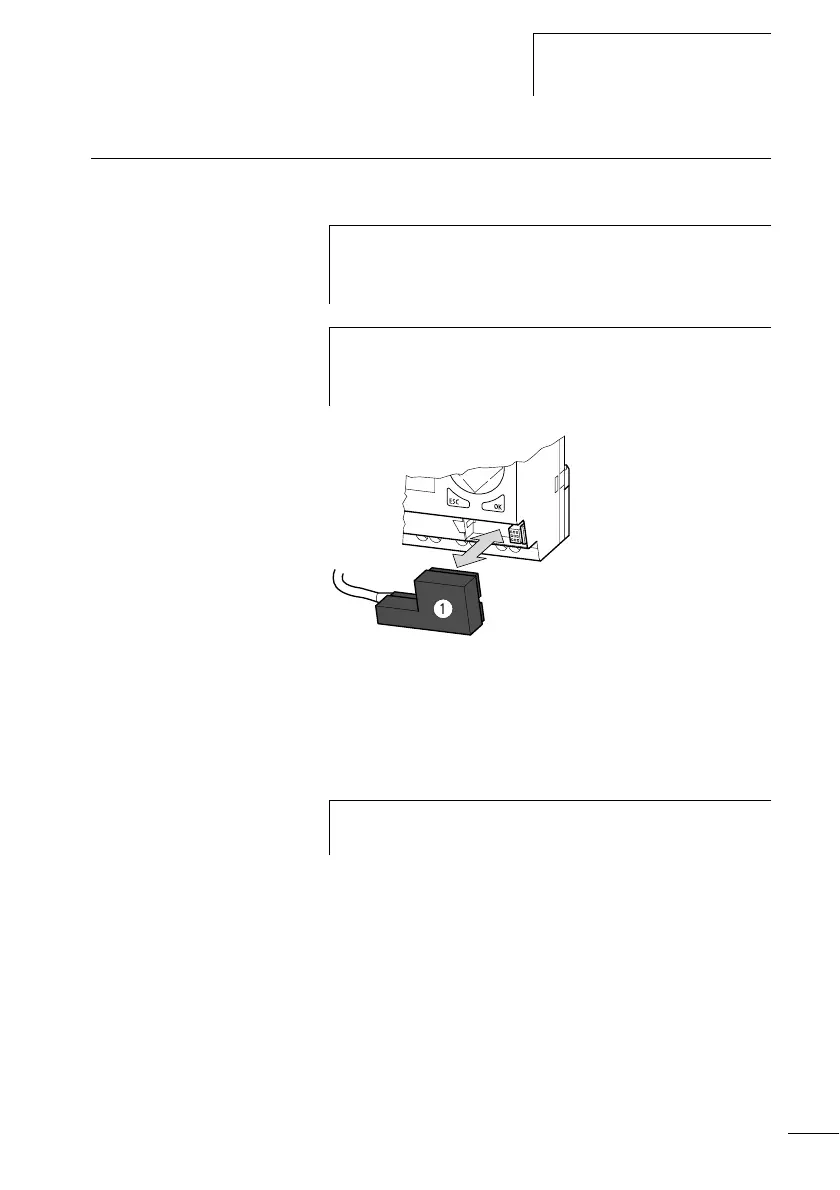

Figure 90: Inserting CL-LAS.TK001 a
X Connect the PC cable to the serial PC interface.
X Insert the CL plug in the opened interface.
X Activate the status display on the logic relay.
Use CL-SOFT to transfer circuit diagrams from your PC to the
logic relay and vice versa. Switch the logic relay to RUN
mode from the PC to test the program using the current
wiring.
CL-SOFT provides extensive help on how to use the software.
X Start CL-SOFT and click on Help.
The help provides all the additional information about
CL-SOFT that you will need.
h
You should only transfer data between the PC and the
logic relay using the special CL-PC connecting cable,
which is available as an optional accessory CL-LAS.TK001.
j
DANGER of electric shock with CL-AC units!
Safe isolation of the interface voltage is only ensured by
using the cable CL-LAS.TK001.
h
The logic relay cannot exchange data with the PC while
the circuit diagram display is on screen.
