4 Wiring with the logic relay
By working through the example in chapter 3 you should
now have gained an initial impression of just how simple it
is to create a circuit diagram in the logic relay. This chapter
describes the full range of logic relay functions and provides
further examples of how to use the logic relay.

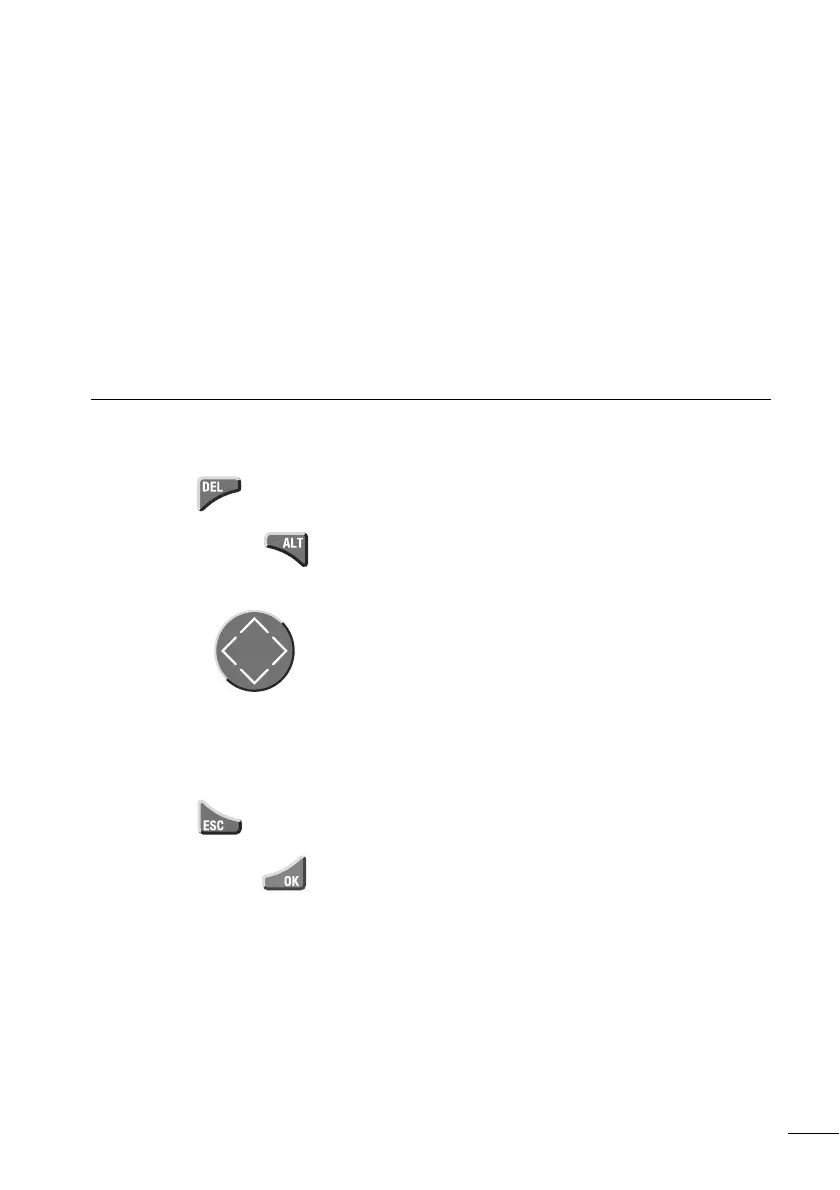

CL operation Buttons for editing circuit diagrams and function
relays
Delete rung, contact, relay or empty rung in the circuit
diagram
Toggle between n/c and n/o contact
Connect contacts, relays and rungs
Add rungs,
ÍÚ
úí
Change value
Move cursor up/down
Change place
Cursor left/right
Cursor buttons set as P buttons:
ú
í
Input P1,
Input P3,
Í
Ú
Input P2
Input P4
Undo setting from last OK
Leave current display, menu
Change, add new contact/relay,
Save setting
