Wiring with the display system
116
1SVC 440 795 M1100
Coils
Coils are the actuating mechanisms of relays. In RUN mode,
the results of the wiring are sent to the coils, which switch
on or off accordingly. Coils can have seven different coil
functions.
Table 6: Usable contacts
Das
The display system works with different contacts, which can
be used in any order in the contact fields of the circuit
diagram.

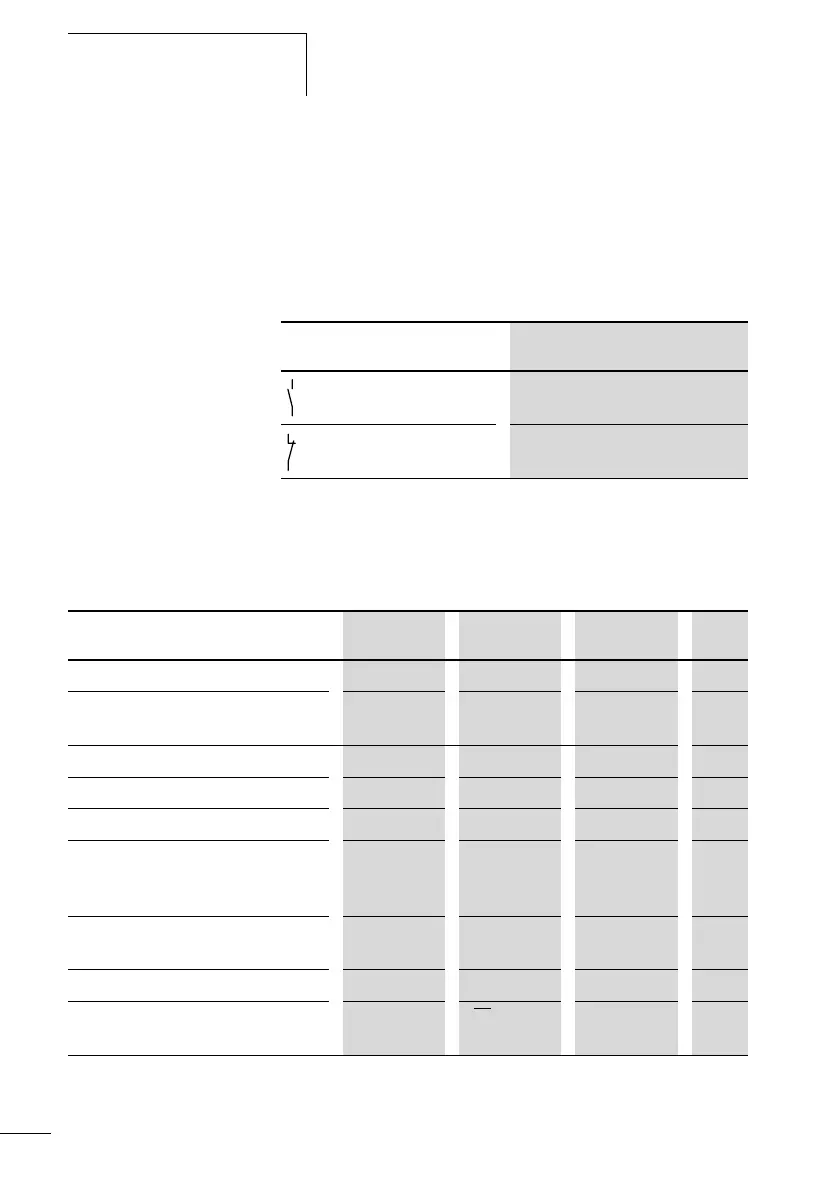

Table 7: Contacts
Contact
Display system display
N/O contact,
open in release position
I, Q, M, A, ….
Other contacts a Table
N/C contact,
closed in release position
i, q, m, a, …
Other contacts a Table
Contact N/O contact N/C contact Number Page
Inputs
Inputs of a network station
* = Station address 1 to 8
*I *i 01…12 322
COM slave inputs 1I 1i 01..12 –
Display system input terminal I i 01…12 –
Cursor button P p 01…04 –
Network station expansion input
terminal
* = Station address 1 to 8
*R *î 01…12 322
Input terminal for expansion unit
COM slave
1R 1î 01...12 –
Input terminal for expansion unit R î 01…12 –
Bit inputs via the network
* = Station address 1 to 8
*RN *RN 01…32 322
