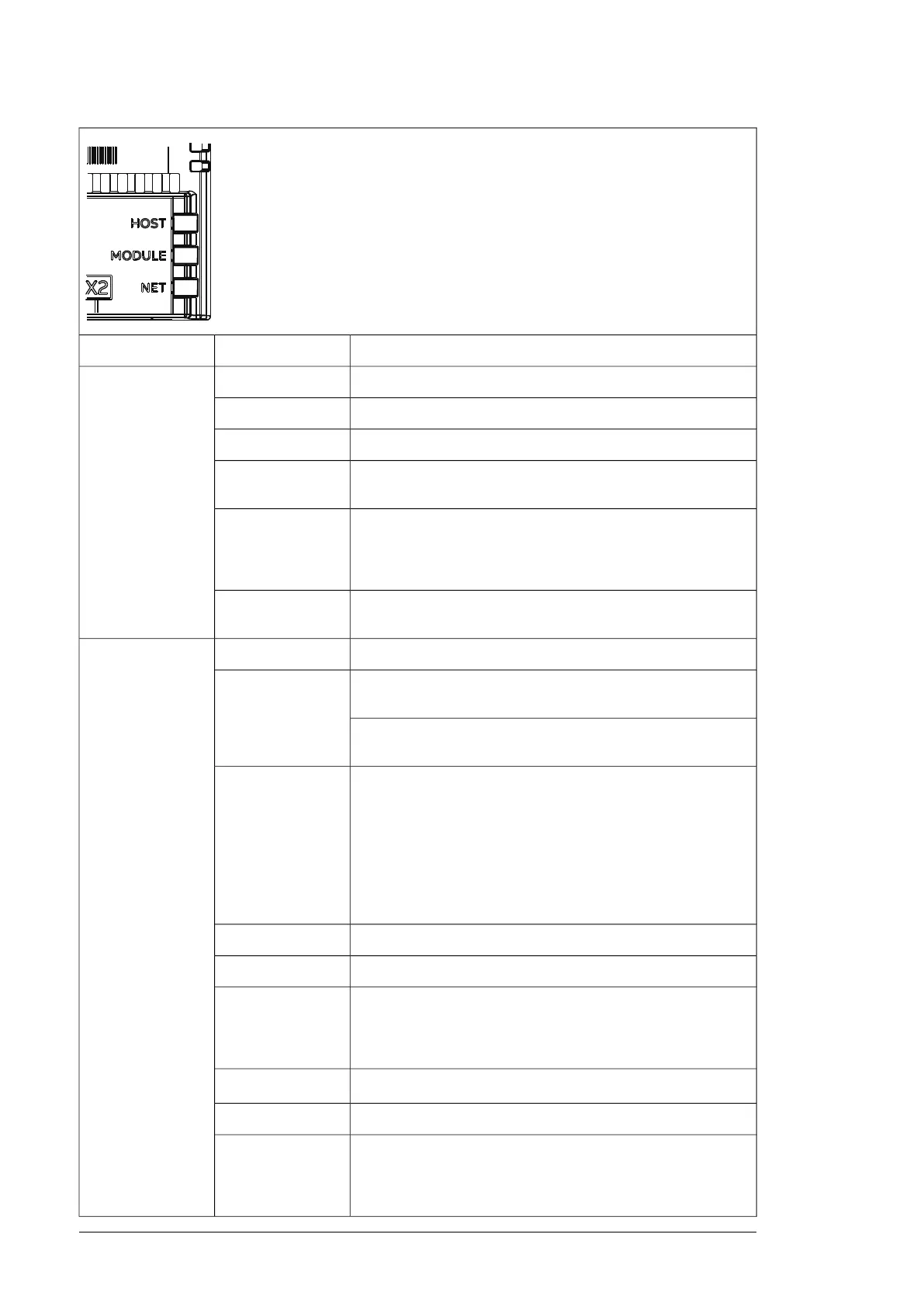

FunctionColorName
Establishing communication to drive control unitFlashing green
HOST
Connection to drive control unit OKGreen
Communication to drive control unit lost temporarilyFlashing red
Fail-safe, see FSPS-21 module modes and states (page 117)
Red, with MODULE
red
Internal file system error. The error may be cleared by cycling
drive power. If the error persists, contact your local ABB repres-
entative.
Flashing orange, al-
ternating with the
MODULE flashing
orange
STO is active; eg. STO signal is 0V (Shown when connection to
drive control unit is OK and no fail-safe is indicated.)
Orange
There is no power applied to the device.Off
MODULE
Device is attempting to obtain IP configuration from DHCP server
if network LED is off.
Flashing orange
Used for identification. The flashing is started by the PROFINET
master and also the network LED is flashing green.
Device needs commissioning due to configuration missing, incom-
plete or incorrect. The device may be in the Standby state.
This may be caused by the adapter waiting for a response from
a DHCP server.
This may also be caused by the adapter waiting for Duplicate
Address Detection to complete. If Duplicate Address Detection
has detected an IP conflict, the IP is configured to 0.0.0.0 and can
be reconfigured by PLC.
Flashing green
Device is operating in a normal condition.Green
Ethernet link is down.Flashing red
Ethernet interface is disabled. Duplicate Address Detection may
have detected a duplicate address. Check the IP configuration
and either initiate a Fieldbus Adapter parameter refresh or cycle
power to the drive.
Red
Fail-safe, see FSPS-21 module modes and states (page 117)
Red, with HOST red
Device is in Self Test.Flashing red-green
Internal file system error. The error may be cleared by cycling
drive power. If the error persists, contact your local ABB repres-
entative.
Flashing orange, al-
ternating with the
HOST flashing or-
ange
184 Fault tracing
