ABB FSPS-21 User Manual

Hardware description
Contents of this chapter
This chapter gives a short description of the module.

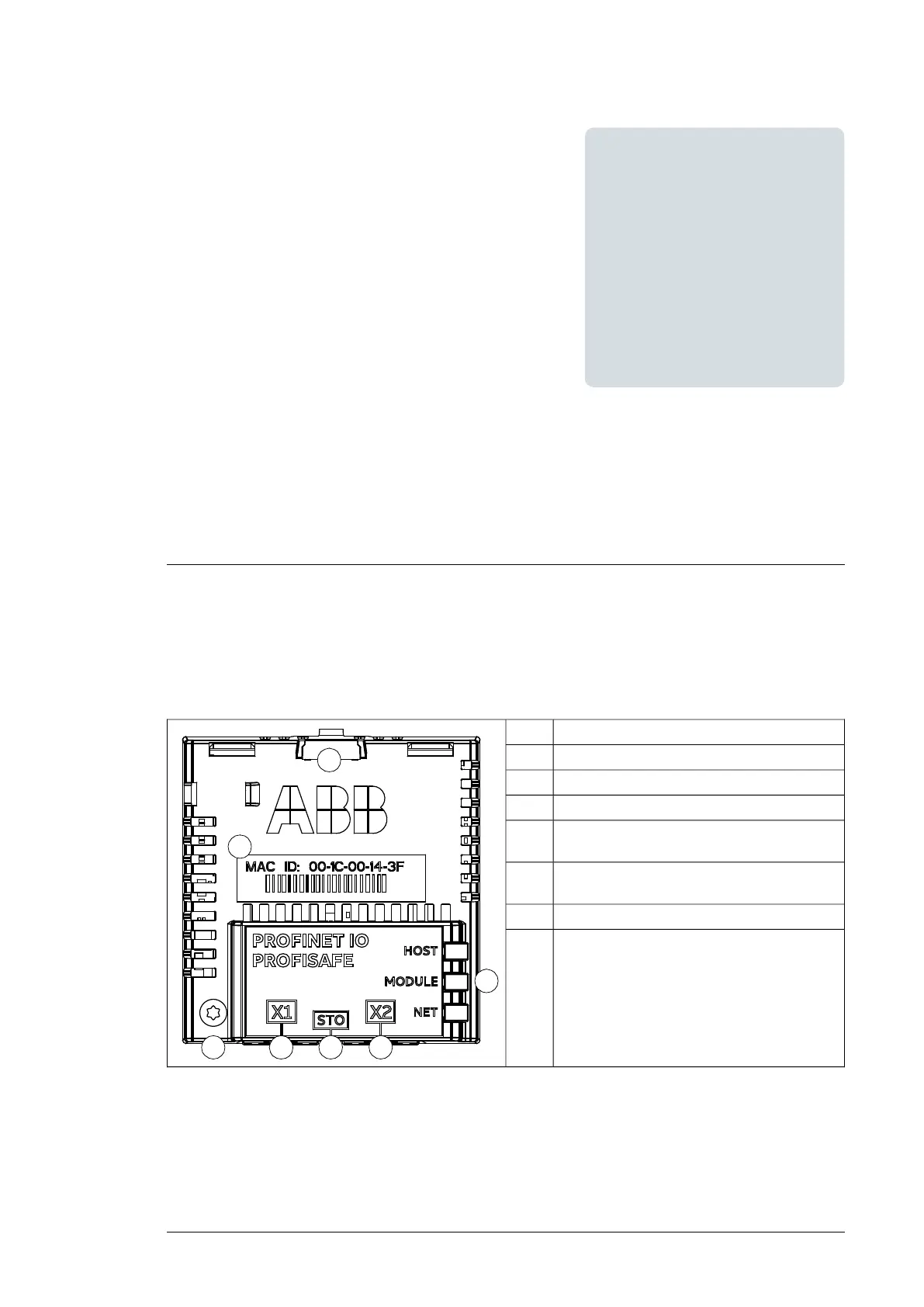

FSPS-21 layout
DescriptionNo.
Electrical installation
 Layout of the module
 Connection procedure
1. Connect the network cable to connector [X1] on the module.
2. If you want to create a daisy chain network with the FSPS-21 modules, connect connector [X2] of the
first module to connector [X1] on the next module, and so on.
3. Connect the STO cable to the FSPS-21 module (black connector).
4. ACS880: Connect the yellow connector to drive’s STO connector. ACS380/580: Remove the yellow
connector from the cable and connect the wires to drive’s STO connectors (see figure below).
Start-up
See the user’s manual.
Further information
See the latest version of FSPS-21 safety functions fieldbus
module user's manual (3AXD50000158638 [English]) in ABB
library (www.abb.com/drives/documents
).
For more information on ABB safety information and solutions,
see ABB Safety information and solutions web page
(new.abb.com/safety
).
No. Description
1Lock
2 Mounting and grounding screw
3 RJ-45 connector [X1] to Ethernet
4 RJ-45 connector [X2] for chaining another module
5 STO connector (under connectors [X1] and [X2])
6 Diagnostic LEDs
7MAC ID
6
32
4
1
5
7
ACS580 drive
Control unit
FSPS-21
ACS380 drive
Control unit
S+
SGND
S1
S2
FSPS-21
Red
White
Black
Yellow
STO
34
35
36
37
38
STO
Red
White
Black
Yellow
STO
STO
3AXD50000158591 Rev A (EN) 2018-02-08
FSPS-21 manual
ABB Safety information and solutions
Lock1
Mounting and grounding screw2
RJ-45 connector [X1] to Ethernet3
RJ-45 connector [X2] for chaining another
module
4
STO connector (under connectors [X1] and
[X2])
5
Diagnostic LEDs6
MAC ID7
6
Hardware description 31
