PROFINET IO – Communication protocol 83
For more information on the above function blocks, see document
Communication Function Blocks for PROFIBUS DP and
PROFINET IO v2.0 available at www.profibus.com
.
 Parameter data transfer examples
The following examples show how parameter data is transferred
using the DP-V1 mechanisms READ and WRITE.
Note: Only the data block part of the request is presented in the
examples. See section Read and write blocks on page 75.
Example 1a: Reading a drive parameter (array
element)
Drive parameters are addressed so that the drive parameter group
corresponds to the Parameter index (PNU), and the drive
parameter number within the group corresponds to the Subindex
(IND). In the following example, a value is read from drive
parameter 12.04 (0C.04h).
• DP-V1 Write request (Read parameter value):
DP
header
01 01 B0 2F 0A 05 01 01 01 10 01 00 0C 00 04
DP trailer
DP-V1 Command PROFIdrive V3 Parameter Channel
Slot number
Subslot number
Index
Data length
Request reference
Request ID (01h= Request Parameter
Drive object ID
Number of parameters
Attribute (10h = Value)
Number of elements
Parameter index
Subindex
DP-V1_Write_request_1.pdf

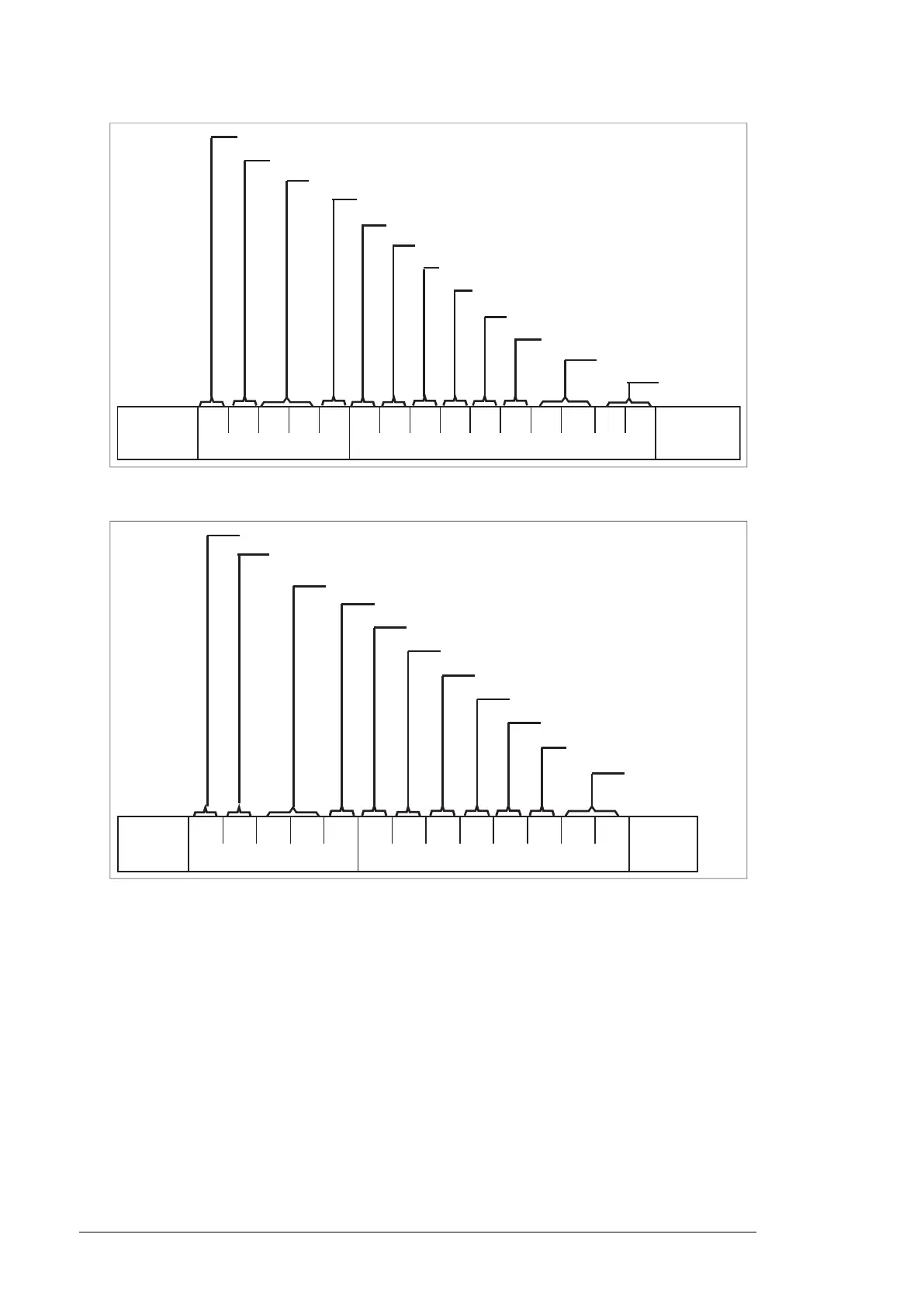

• Positive Read response to DP-V1 Read request:
84 PROFINET IO – Communication protocol
• Positive Read response to DP-V1 Read request:
• Negative response to PROFIdrive Read request:
DP
header
01 01 B0 2F 08 05 01 01 01 42 01 05 64
DP
trailer
DP-V1 Response PROFIdrive V3 Parameter Channel
DP
header
01 01 B0 2F 08 85 01 01 01 44 01 00 00
DP
trailer
DP-V1 Response PROFIdrive V3 Parameter Channel
Slot number
Subslot number
Index
Data length
Response reference (mirrored)
Response ID
Drive object ID
Number of parameters
Format (42h = Word)
Number of values
Parameter value
Slot number
Subslot number
Index
Data length
Response reference (mirrored)
Response ID
Drive object ID (mirrored)
Number of parameters
Format (44h = Error)
Number of values
PROFIdrive error
code
Reserved
DP-V1_Read_request_1.pdf
PROFIdrive_Read_request.pdf
• Negative response to PROFIdrive Read request:
98 PROFINET IO – Communication protocol
