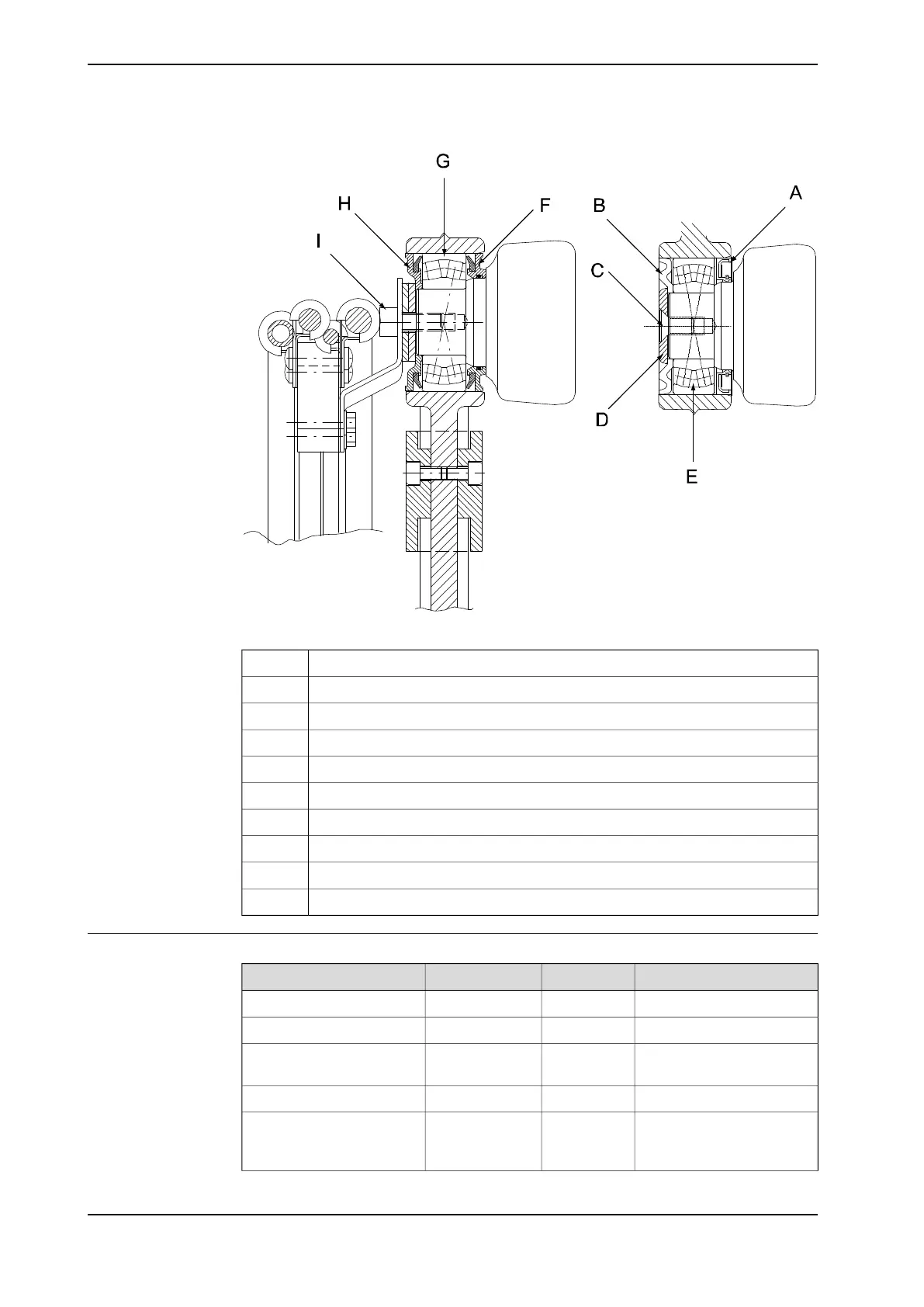

xx0200000443
Bearing sealingA
Back up ringB
Attachment screwC
Locking washerD
Spherical roller bearingE
Upper connection IRB 2400 5 kg
Bearing sealingF
Spherical roller bearingG
Bearing sealingH
ScrewI
Required equipment
NoteArt. no.Spare part no.Equipment, etc.
Loctite 2433HAB7116-1Locking liquid
3HAB3537-1Grease
3HAB6324-1Press tool, parallel bar
bearing
Used to fit the tie rod.3HAB6331-1Mounting tool, parallel bar
The content is defined in the
section Standard tools on
page 229.
-Standard toolkit
Continues on next page
150 Product manual - IRB 2400
3HAC022031-001 Revision: P
© Copyright 2004-2018 ABB. All rights reserved.
4 Repair
4.5.2 Replacement of tie rod
Continued
