2.4.2 Mechanically restricting the working range of axis 1
Restrictions in the working range

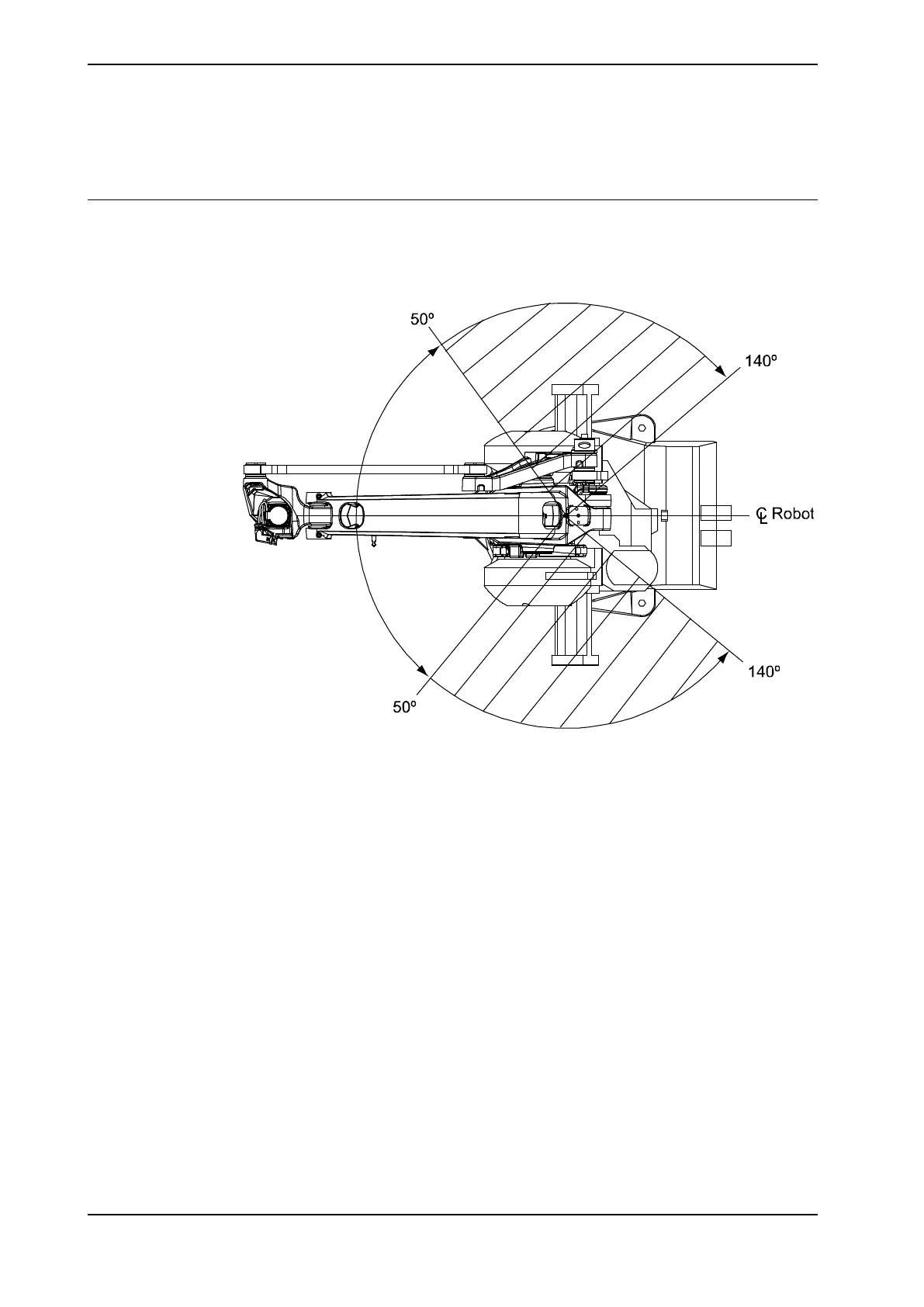

The working range of axis 1 can be restricted within the area from 50º to 140º as
shown in the figure below. The restrictions are made by fitting two extra stops to
the robot base and adjusting the system parameter configuration.
xx0500002105
Continues on next page
72 Product manual - IRB 2400
3HAC022031-001 Revision: P
© Copyright 2004-2018 ABB. All rights reserved.
2 Installation and commissioning
2.4.2 Mechanically restricting the working range of axis 1
