3.3.2 Inspecting Signal lamp (option)

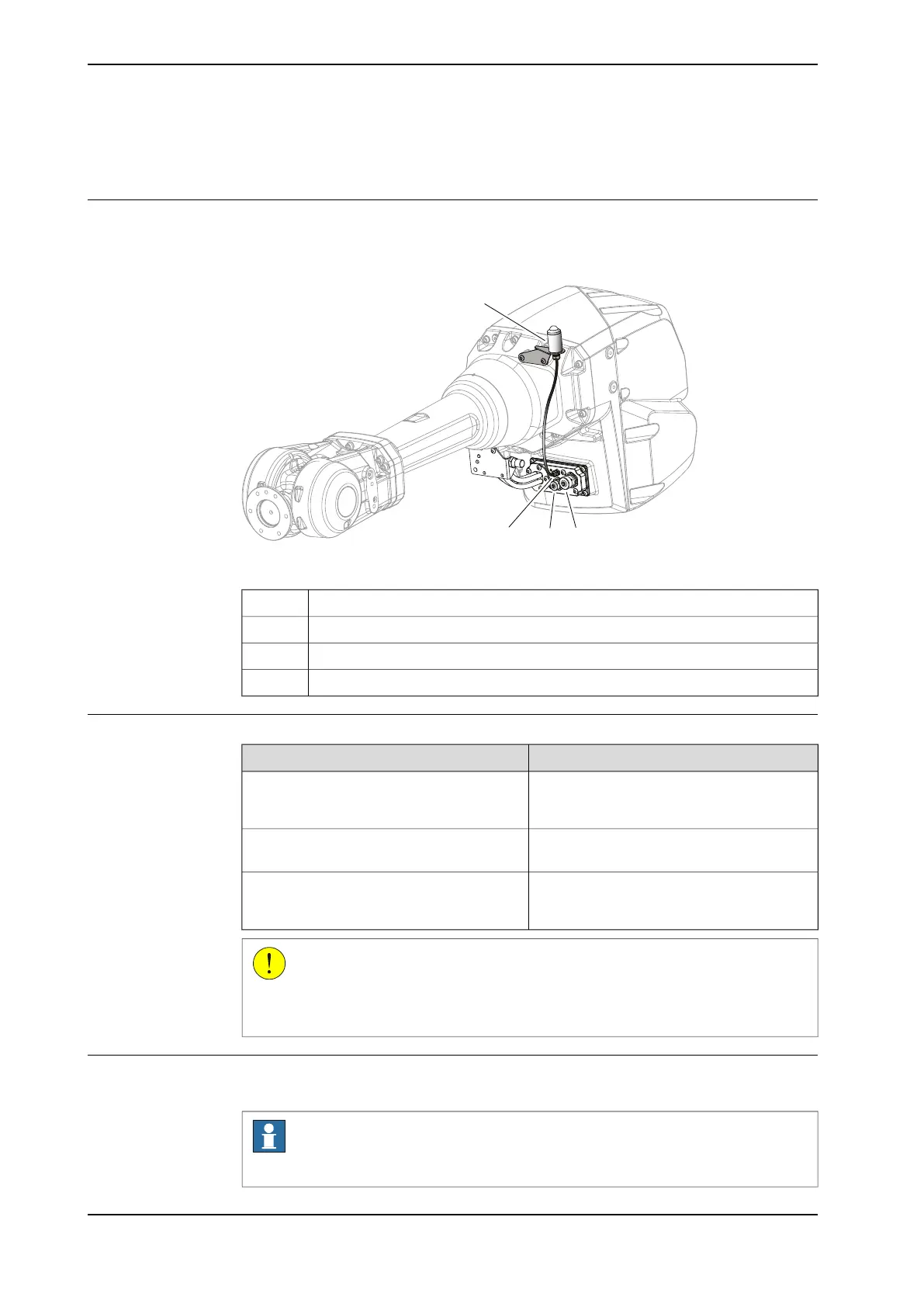

Location of signal lamp
Signal lamp is an option.
Located as shown in the figure.
xx0800000290
Signal lampA
R3.H1 +, R3.H2 -B
R2.CPC
R2.CSD
Required equipment
NoteEquipment
For spare parts no. see Spare parts - Spare
parts options in Product manual, spare
parts - IRB 2600.
Signal lamp
Content is defined in section Standard tools
on page 229.
Standard toolkit
These procedures include references to the
tools required.
Other tools and procedures may be required.
See references to these procedures in the
step-by-step instructions below.
CAUTION
Always cut the paint with a knife and grind the paint edge when disassembling
parts. See Cut the paint or surface on the robot before replacing parts on page 117.
Inspecting signal lamp
Use this procedure to inspect the function of the signal lamp.
Note
If the signal lamp is damaged, it shall be replaced!
