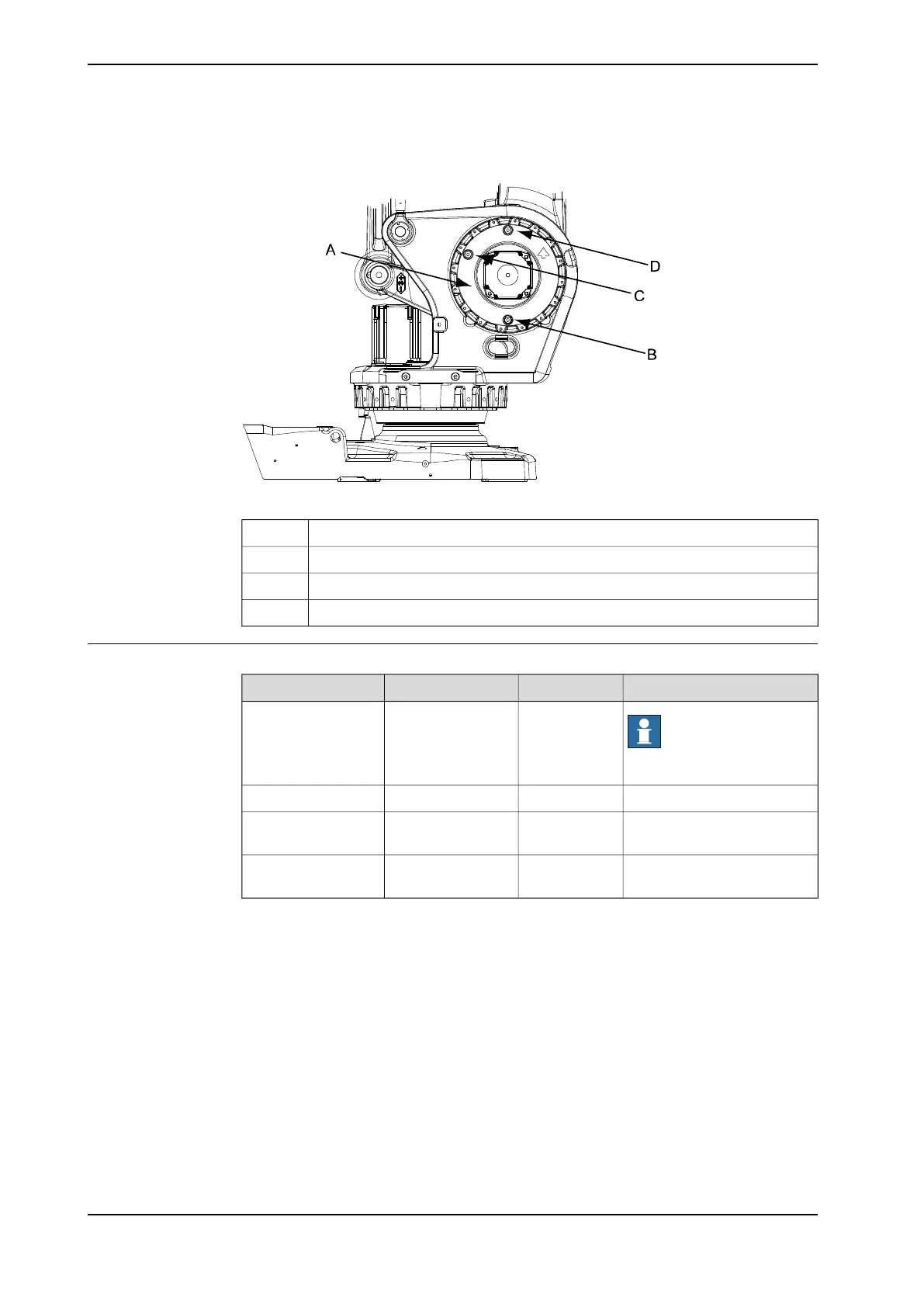

The figure shows position of gearbox, axis 3.
xx0500002483
Gearbox, axis 3A
Oil plug, drainingB
Oil plug, fillingC
Ventilation hole plug, gearbox axis 3D
Required equipment
NoteAmountArt. no.Equipment etc.
Note
Do not mix with other oils!
See Type and
amount of oil in
gearboxes on
page 144.
See Type and
amount of oil in
gearboxes on
page 144.
Lubricating oil
Capacity: 6,000 mlOil collecting vessel
Content is defined in section
Special tools on page 382.
3HAC021745-001Oil exchange equip-
ment
Content is defined in section
Standard tools on page 381.
-Standard toolkit
Continues on next page
150 Product manual - IRB 6660
3HAC028197-001 Revision: S
© Copyright 2007-2018 ABB. All rights reserved.
3 Maintenance
3.4.3 Changing oil, gearbox axes 2 and 3
Continued
