ABB IRB 6700 Series User Manual

Robot cable, signals
Article numberSignal cable length
3HAC2493-17 m
3HAC2530-115 m
3HAC2540-122 m
3HAC2566-130 m

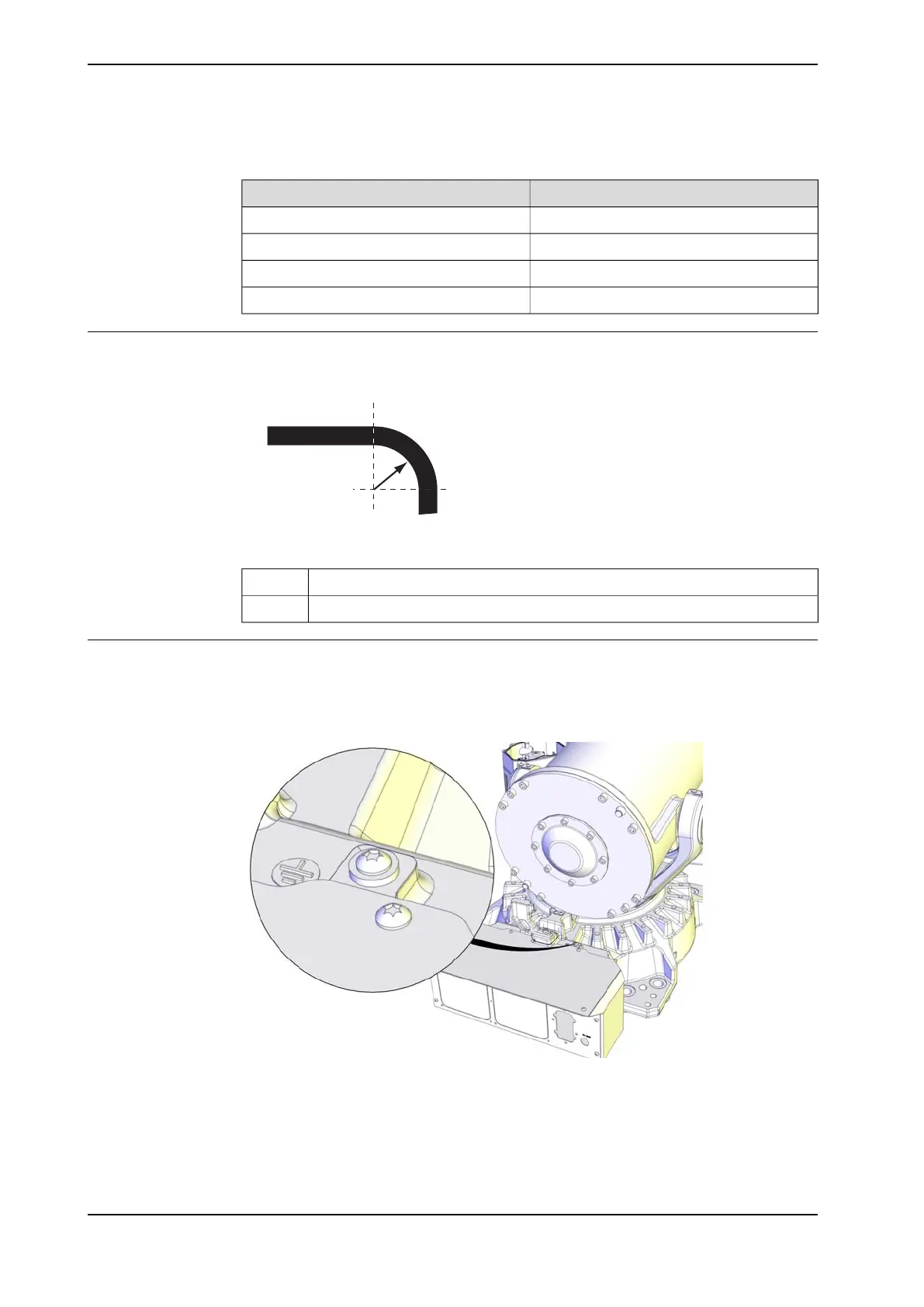

Bending radius for static floor cables
The minimum bending radius is 10 times the cable diameter for static floor cables.
A
B
xx1600002016
DiameterA
Diameter x10B
Grounding and bonding point on manipulator
There is a grounding/bonding point on the manipulator base. The grounding/bonding
point is used for potential equalizing between control cabinet, manipulator and any
peripheral devices.
xx1500001600
Continues on next page
100 Product manual - IRB 6700
3HAC044266-001 Revision: N
© Copyright 2013 - 2018 ABB. All rights reserved.
2 Installation and commissioning
2.6.1 Robot cabling and connection points
Continued

ABB IRB 6700 Series Specifications

General

Payload	150-300 kg
Reach	2.60-3.20 m
Number of Axes	6
Protection Rating	IP67
Controller	IRC5
Protection	Foundry Plus 2
Mounting	Floor
