28 | RMC-100 | 2105551MNAD
The RMC default Ethernet mode is 1 Network (2-port switch mode).
Ethernet ports are enabled by default.
If you are connected to one of the Ethernet ports to configure the
-100, changing the Ethernet configuration and restarting the interface will cause you to
lose connection. Make sure to configure your laptop
with an IP address compatible with the
address assigned to the RMC. Re-
establish connection using the new RMC IP address
after the device restarts.
7.2.1 Configure the RMC for 1 Network mode (2-port switch)
To configure the network parameters:
1. Connect the Ethernet cable from the RMC to the network communication equipment (hub, switch,
router, etc.).
2. Verify the Ethernet port LED is green (the network Ethernet link is on).
3. Start PCCU on the laptop.
4. Configure the network parameters:
a. Select Communications on the PCCU navigation tree. The Communications Setup tab
displays.
b. Select the Networking tab (Figure 7-5
).
c. Verify that the Ethernet Mode is set to 1 Network (default).
d. Verify that the Ethernet interface State is set to Enable.
e. If using DHCP for dynamic addressing, set DHCP to Enable.
f. If using static addresses, type each of the parameters: IP Address, Default Gateway, and
Subnet Mask.

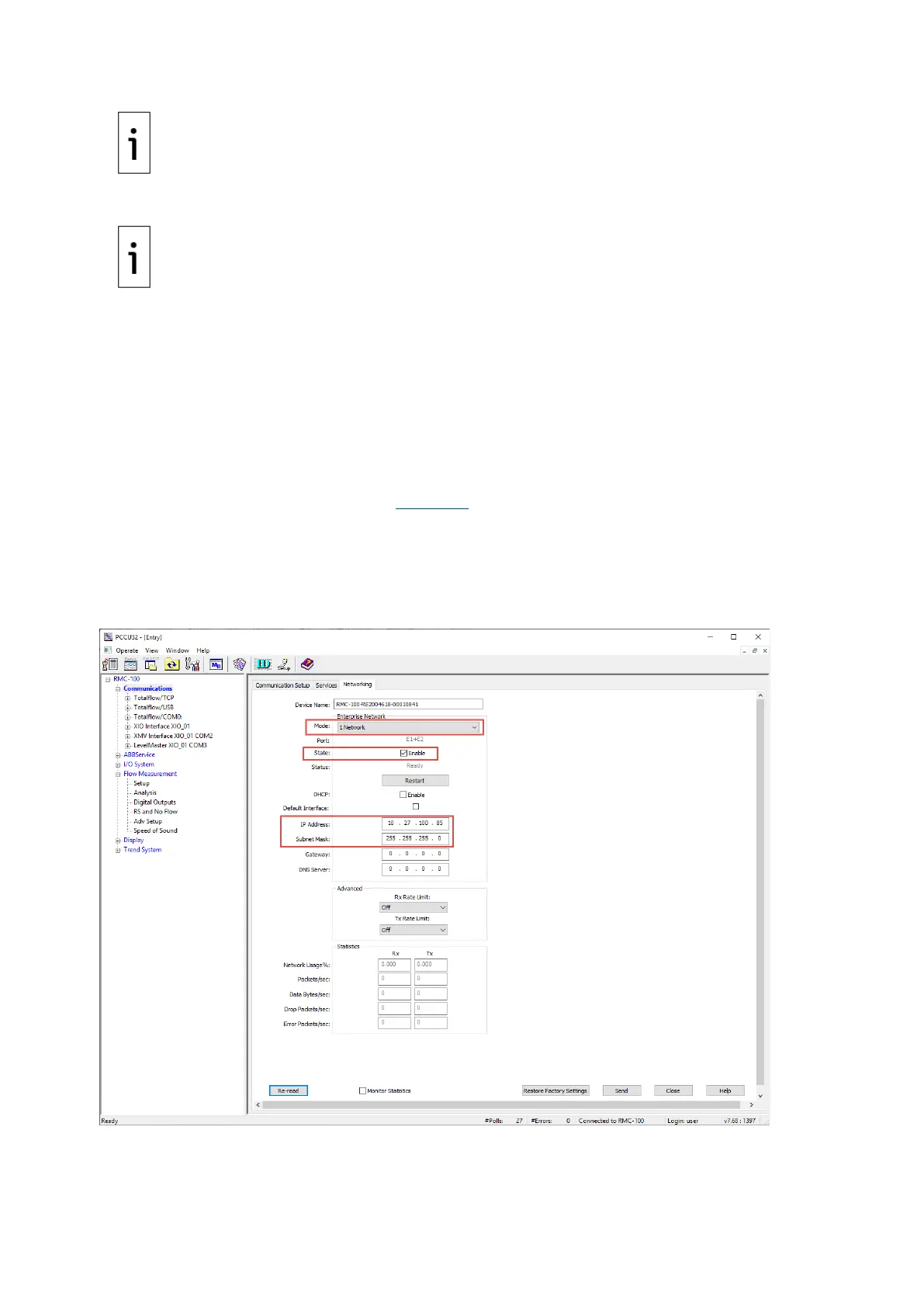

Figure 7-5: Network communication for 1 Network mode
5. Click Send. The device saves the updated configuration.
6. Click Restart. A warning displays to confirm.
