ABB RMC-100 Startup Guide

2105551MNAD | RMC-100 | 35

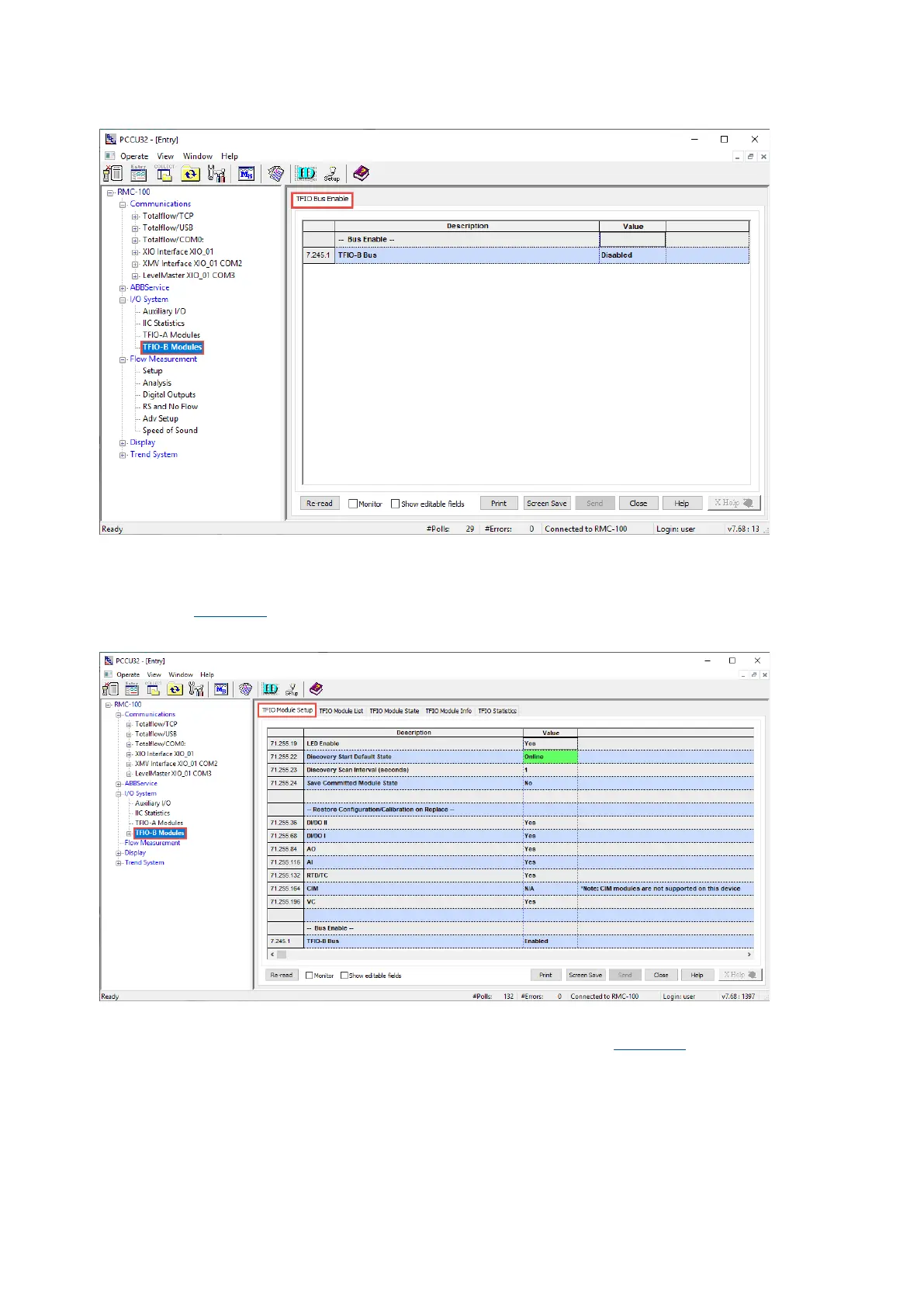

Figure 9-3: TFIO-B Bus Enable tab (bus disabled by default)
a. Select the TFIO-B Bus field to change to Enabled.
b. Click Send. The TFIO Bus Enabled screen clears and the navigation tree refreshes.
c. Select TFIO-B Modules from the navigation tree. The TFIO Module Setup tab displays
(Figure 9-4).
Figure 9-4: TFIO-B Module Setup
d. Click the TFIO Module List tab.
e. Verify all TFIO modules are connected and their type listed (Figure 9-5
).
