2105551MNAD | RMC-100 | 29

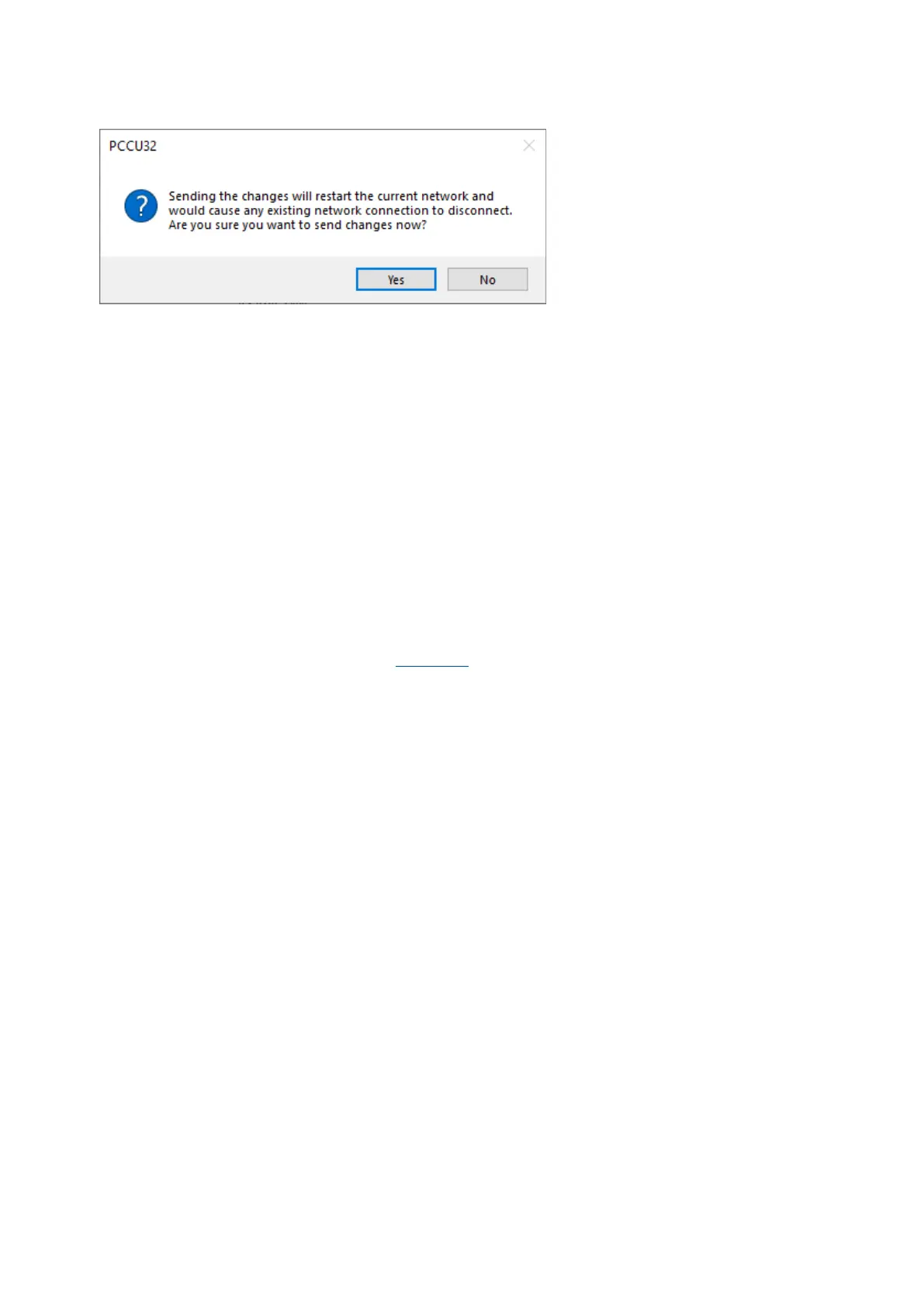

Figure 7-6: Warning before Ethernet interface restart
7. Click Yes.
8. Click OK.
9. Verify that the configuration is correct. If DCHP is enabled, ensure the RMC has obtained its
required IP parameters (the IP parameter fields must be automatically populated after the
restart).
10. Ping the device from the WAN or field network. The RMC should reply to the ping from the
network.
11. If connecting another device to the RMC-100 in daisy chain fashion, configure the device with a
unique IP address in the same subnet as the IP address configured on the RMC.
12. Verify that you can reach the connected device by pinging its IP address.
7.2.2 Configure the RMC for 2 Network mode
To configure network parameters:
1. Connect the Ethernet cable from the RMC to the network communication equipment (hub, switch,
router, etc.).
2. Verify the Ethernet port LED is green (the network Ethernet link is on).
3. Configure the Ethernet mode.
a. Select Communications on the PCCU navigation tree. The Communications Setup tab
displays.
b. Select the Networking tab (Figure 7-5
).
c. Verify that the Ethernet Mode is set to 2 Networks. The screen displays parameter fields for
two interfaces since each port will be assigned to a separate network.
4. Configure Ethernet interfaces for the appropriate subnet. For each interface:
a. Verify that the Ethernet interface State is set to: Enable.
b. If using DHCP for dynamic addressing, set DHCP to: Enable.
c. If using static addresses, type each of the parameters: IP Address, Default Gateway, and
Subnet Mask.
