2105552MNAE | RMC-100 | 109

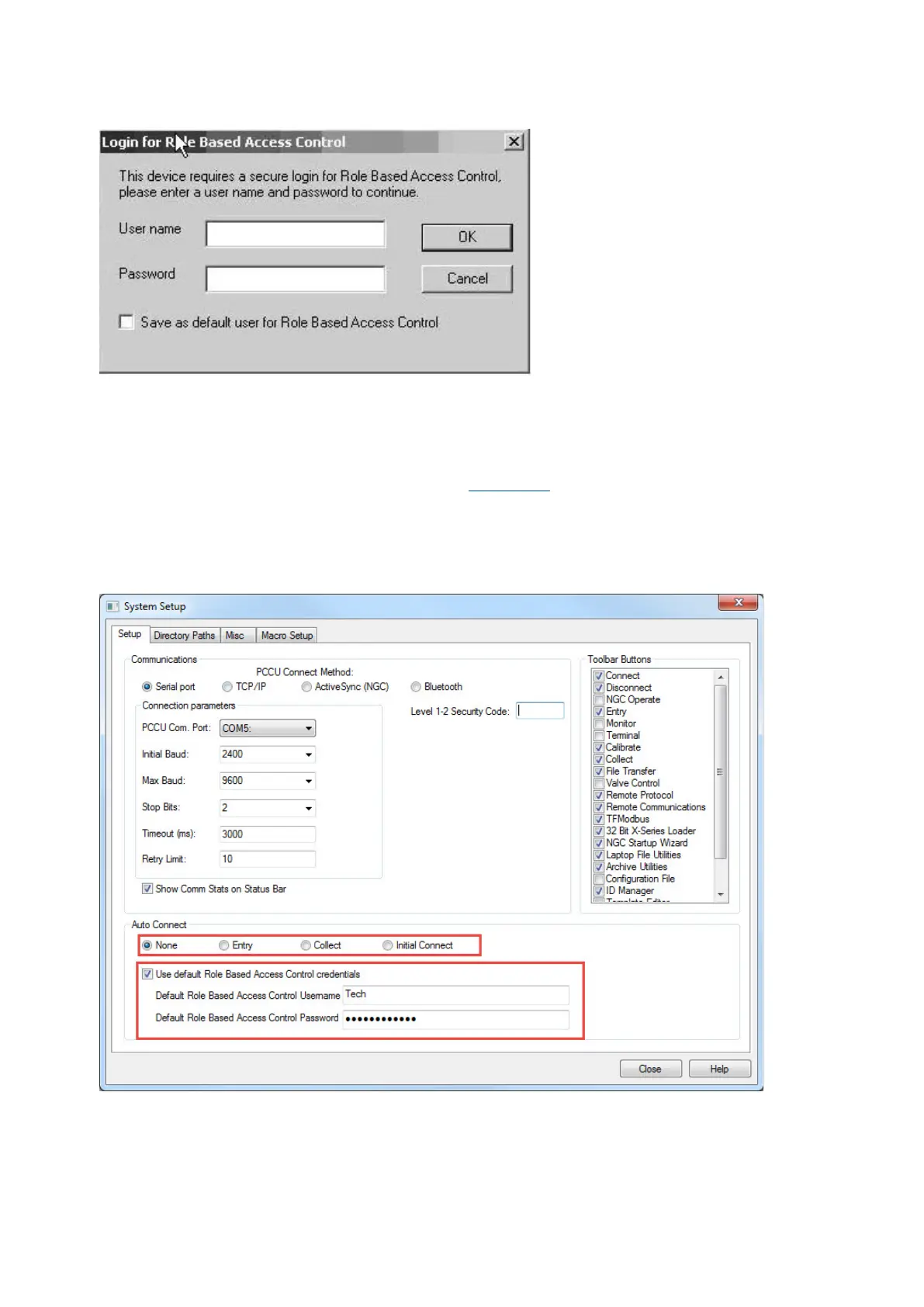

Figure 6-10: Login dialog box
Set the user name and password as default credentials in PCCU, if necessary. The User Name and
Password fields autofill with the default credentials on subsequent logins.
To create, change or disable the RBAC credentials in PCCU:
1. Click Setup on the toolbar or click Operate > Setup > System Setup.
2. Set the defaults in the Auto Connect section (Figure 6-11
):
a. Select Entry, Collect, or Initial Connect. Click Help for additional details.
b. Select Use Default Role Based Access Control credentials.
c. Type the user name into Default Role Based Access Control Username.
d. Type the password into Default Role Based Access Control Password.
Figure 6-11: System Setup Auto Connect and RBAC credentials
3. Click Close to exit PCCU connection setup.

ABB RMC-100 Specifications

General

Brand	ABB
Model	RMC-100
Category	Controller
Language	English
