ABB RMC-100 User Manual

12 | RMC-100| 2105552MNAE

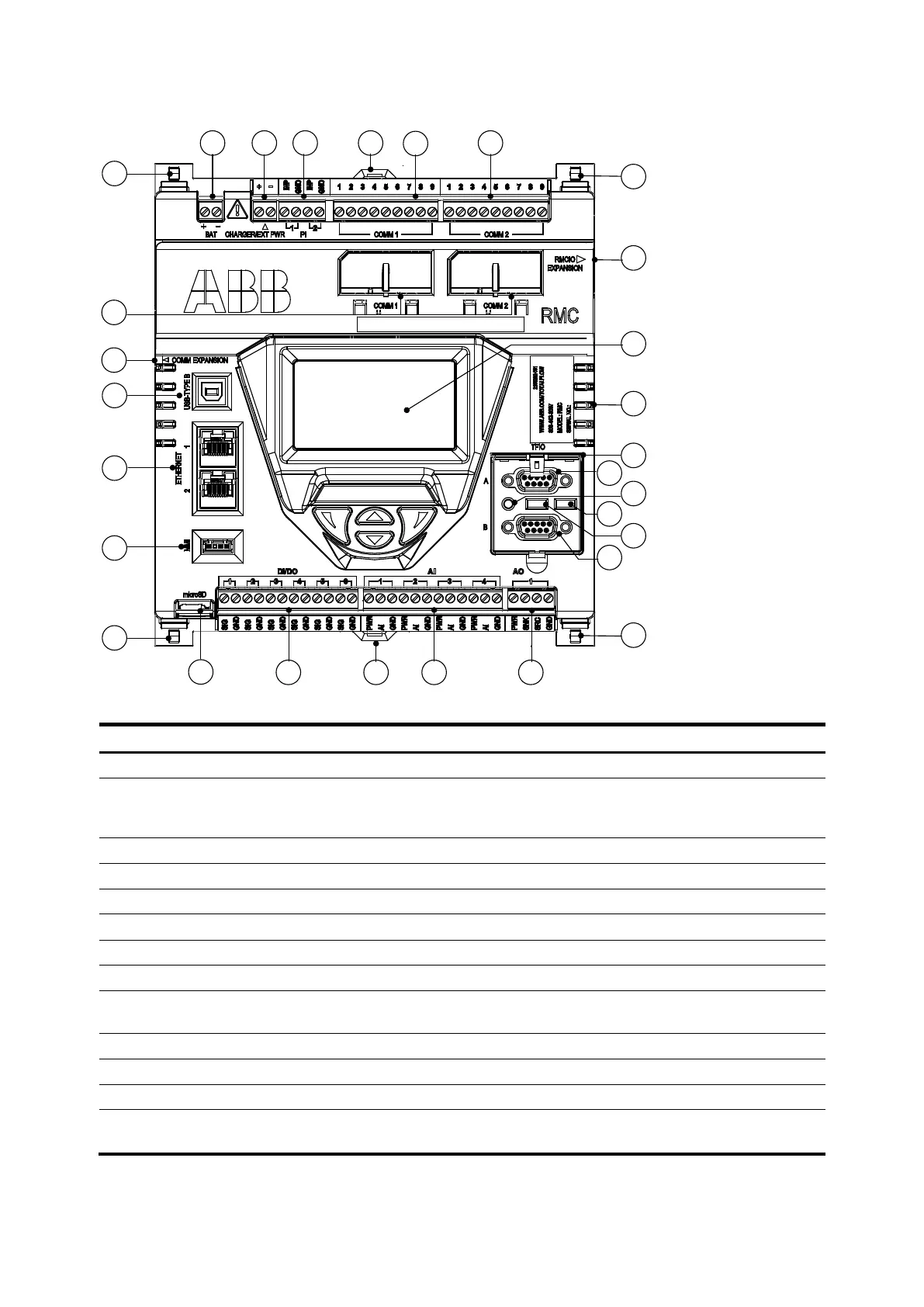

Figure 2-1: RMC-100 housing cover exterior
Legend for Figure 2-1: RMC-100 housing cover exterior
ID
Description
ID
Description
1
Battery connection (BAT)
13
Reset button
2
Charger input when battery-powered, or
external power supply when not battery-
powered (CHARGER/EXT PWR)
14
Security switch
3
Pulse input (Pulse Input, PI)
15
Lithium battery switch
4
DIN rail release clip
16
TFIO B I/O module interface
5
COMM 1 connector
17
Analog output (Analog Output, AO)
6
COMM 2 connector
18
Analog input (Analog Input, AI)
7
Clip to hold the top to the housing base
19
Digital input/output (DI/DO)
8
RMC I/O expansion connector (future use)
20
Micro SD card holder (future use)
9
LCD display assembly and 4 directional
buttons
21
MMI port (MMI)
10
Vents
22
Ethernet 1 and 2 ports
11
TFIO cover
23
USB Type B port
12
TFIO A I/O module interface
24
COMM Expansion (future use)
25
COMM 1 and COMM 2 plug-in module slot
covers
1 2 3 4
5
6
7
8
9
10
11
12
13
14
15
16
7
171819
20
4
21
7
22
23
7
24
25
