Acer Aspire V5-571 User Manual

Machine Maintenance 3-27
Removing the WLAN Module 0
1. Perform the “Removing the Palmrest Module/Upper Case” procedure described on
page 3-18.
2. Unplug the two (2) antenna cables from the WLAN module.

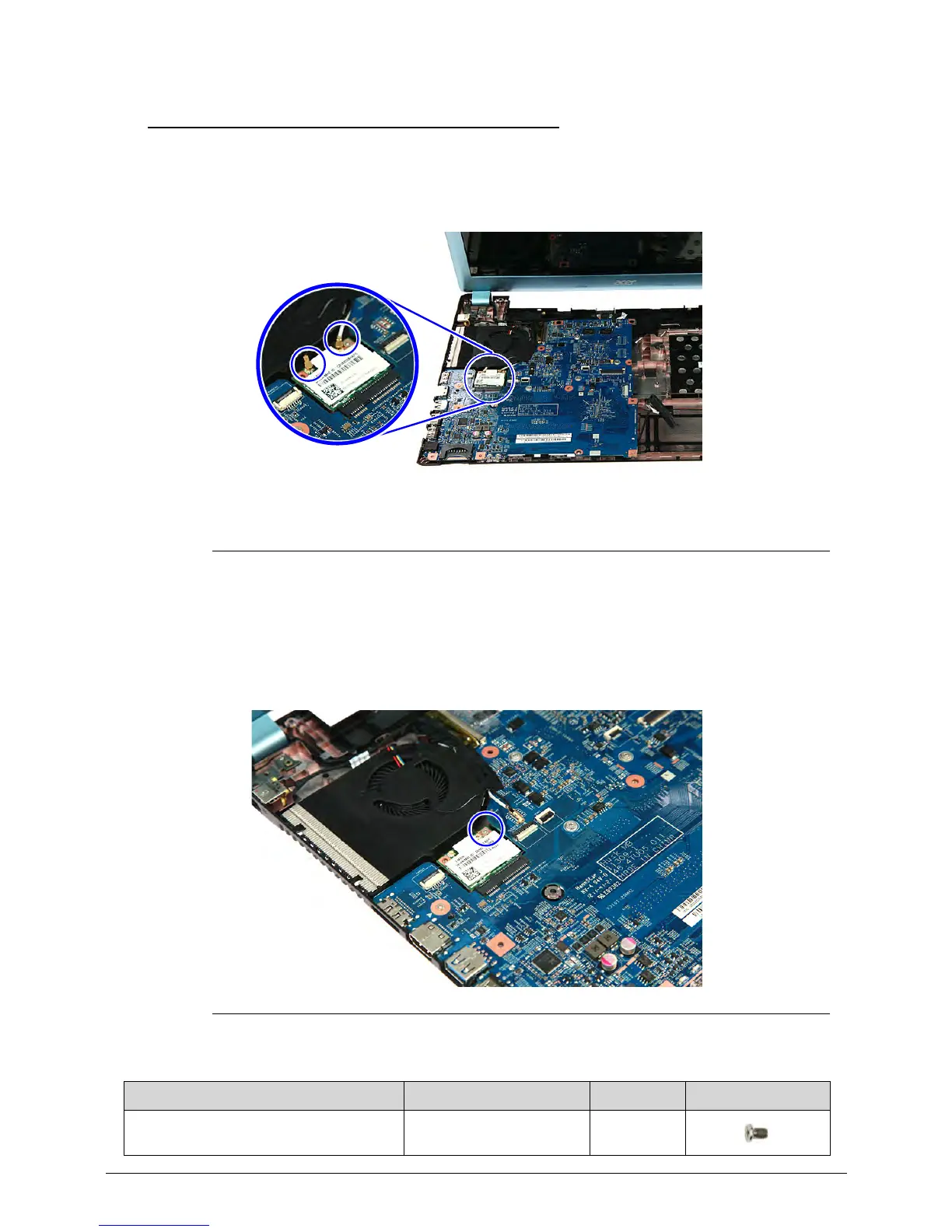

Figure 3-31. WLAN Module Antennas
IMPORTANT:
+
For reference during machine reassembly, note which cable color
corresponds to the main (black) and auxiliary (white) connectors.
3. Remove the screw securing the WLAN module to the mainboard.
Figure 3-32. WLAN Module Screw
Table 3-32. Screw
Step Screw Quantity Screw Type
WLAN Module Disassembly M2 × L3 1

Acer Aspire V5-571 Specifications

General

Graphics	Intel HD Graphics 4000
Operating System	Windows 8
Processor	Intel Core i3/i5/i7 (depending on model)
RAM	4GB DDR3
Storage	500GB HDD
Display	15.6-inch HD (1366 x 768)
Battery	4-cell Li-ion battery
Weight	2.3 kg
Ports	2 x USB 2.0, 1 x USB 3.0, HDMI, Ethernet
Wireless	802.11b/g/n
Webcam	HD webcam
