6-4 FRU (Field Replaceable Unit) List

Aspire MS2361 0

Exploded Diagrams 0

Main Assembly 0

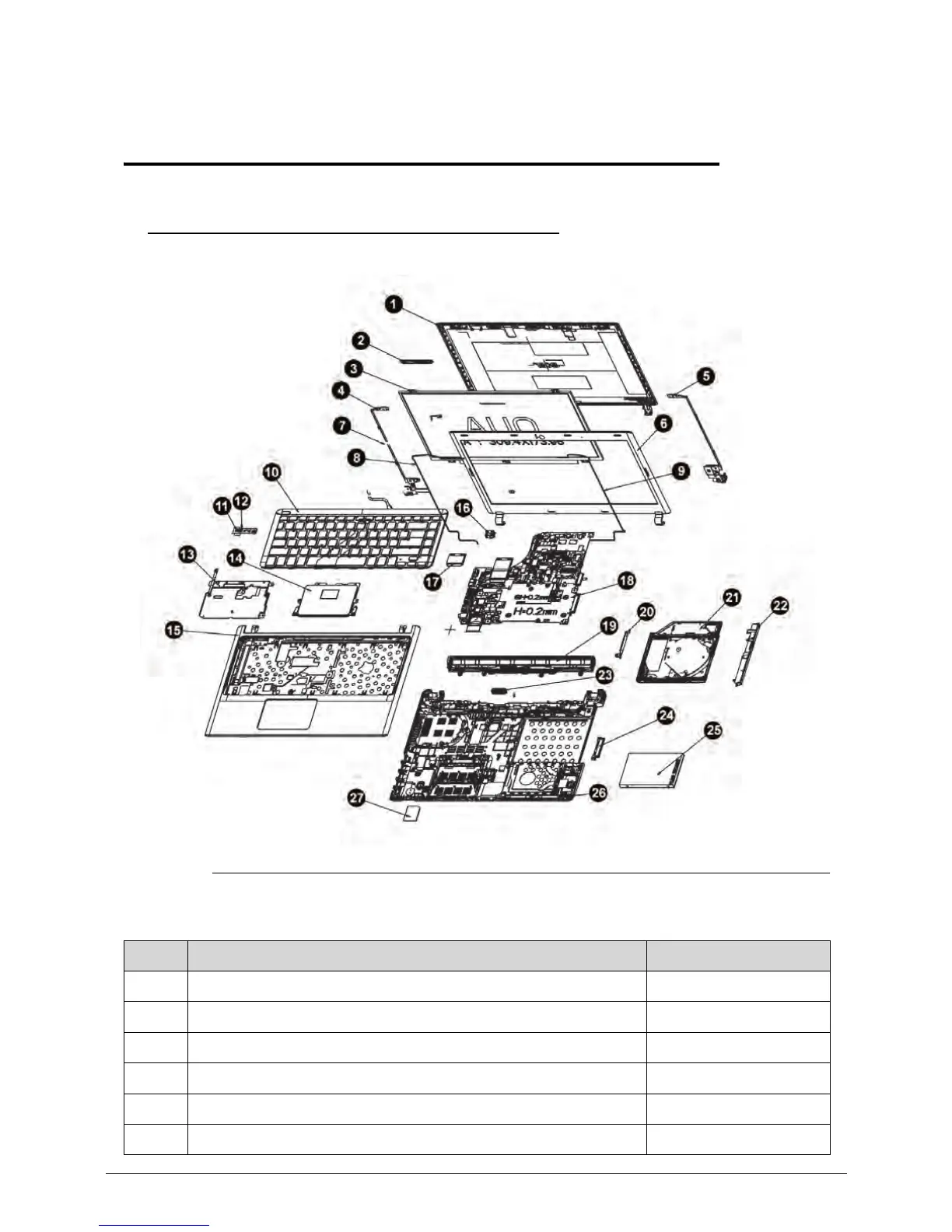

Figure 6-1. Main Assembly Exploded Diagram

Table 6-1. Main Assembly Exploded Diagram

No. Description Part Number

1 Panel assembly 60.4TU13.011

2 CCD module

3LCD module

4 Husk hinge (left) 34.4TU15.001

5 Husk hinge (right) 34.4TU14.001

6 LCD bezel assembly 60.4TU14.001
