Acer Aspire V5-571 User Manual

Machine Maintenance 3-23

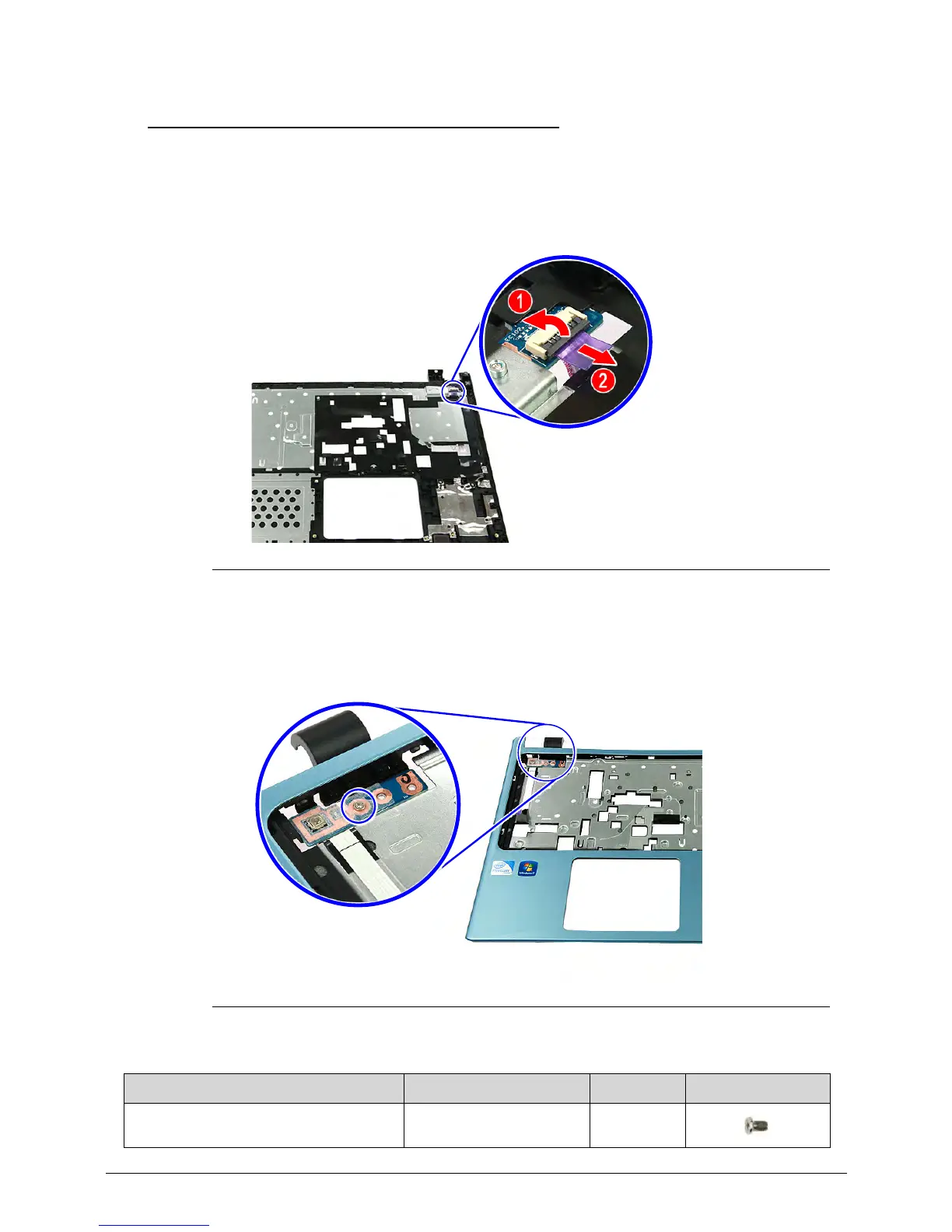

Removing the Power Button Board 0
1. Perform the “Removing the Palmrest Module/Upper Case” procedure described on
page 3-18.
2. Release the connector latch from the power button board (1), then disconnect the power
button cable (2).
Figure 3-24. Power Button Cable
3. Turn the upper case over.
4. Remove the screw securing the power button board to the upper case.
Figure 3-25. Power Button Board Screw
Table 3-25. Screw
Step Screw Quantity Screw Type
Power Button Board Disassembly M2 × L3 1

Acer Aspire V5-571 Specifications

General

Graphics	Intel HD Graphics 4000
Operating System	Windows 8
Processor	Intel Core i3/i5/i7 (depending on model)
RAM	4GB DDR3
Storage	500GB HDD
Display	15.6-inch HD (1366 x 768)
Battery	4-cell Li-ion battery
Weight	2.3 kg
Ports	2 x USB 2.0, 1 x USB 3.0, HDMI, Ethernet
Wireless	802.11b/g/n
Webcam	HD webcam
