Acer Aspire V5-571 User Manual

Jumper and Connector Locations 5-3
Jumper and Connector Locations
Mainboard Layout 0

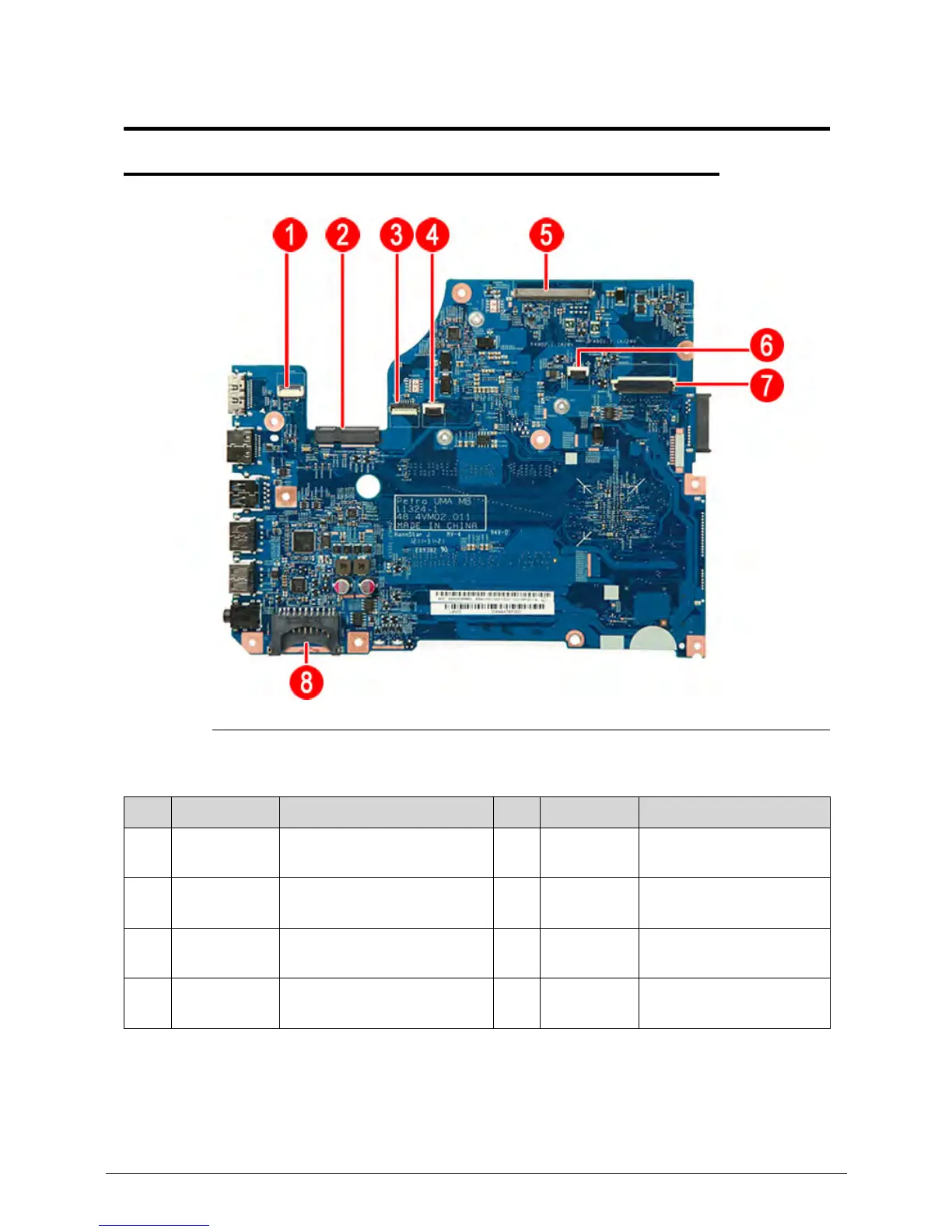

Figure 5-1. Mainboard Top View (UMA)
Table 5-1. Mainboard Top View (UMA)
No. Code Component No. Code Component
1 PWRCN1 Power button board cable
connector
5 LCD1 LCD cable connector
2 WLAN1 Mini card slot (for wireless
module)
6 KB2 Backlight keyboard
cable connector
3 TPAD1 Touchpad cable connector
(15” models)
7 KB1 Keyboard cable
connector
4 TPAD2 Touchpad cable connector
(14” models)
8 CARD1 Card reader connector

Acer Aspire V5-571 Specifications

General

Graphics	Intel HD Graphics 4000
Operating System	Windows 8
Processor	Intel Core i3/i5/i7 (depending on model)
RAM	4GB DDR3
Storage	500GB HDD
Display	15.6-inch HD (1366 x 768)
Battery	4-cell Li-ion battery
Weight	2.3 kg
Ports	2 x USB 2.0, 1 x USB 3.0, HDMI, Ethernet
Wireless	802.11b/g/n
Webcam	HD webcam
