Acer Aspire V5-571 User Manual

3-32 Machine Maintenance
Removing the Thermal Module 0
1. Perform the “Removing the Mainboard” procedure described on the preceding on
page 3-29.
2. Disconnect the thermal module fan cable from the mainboard.

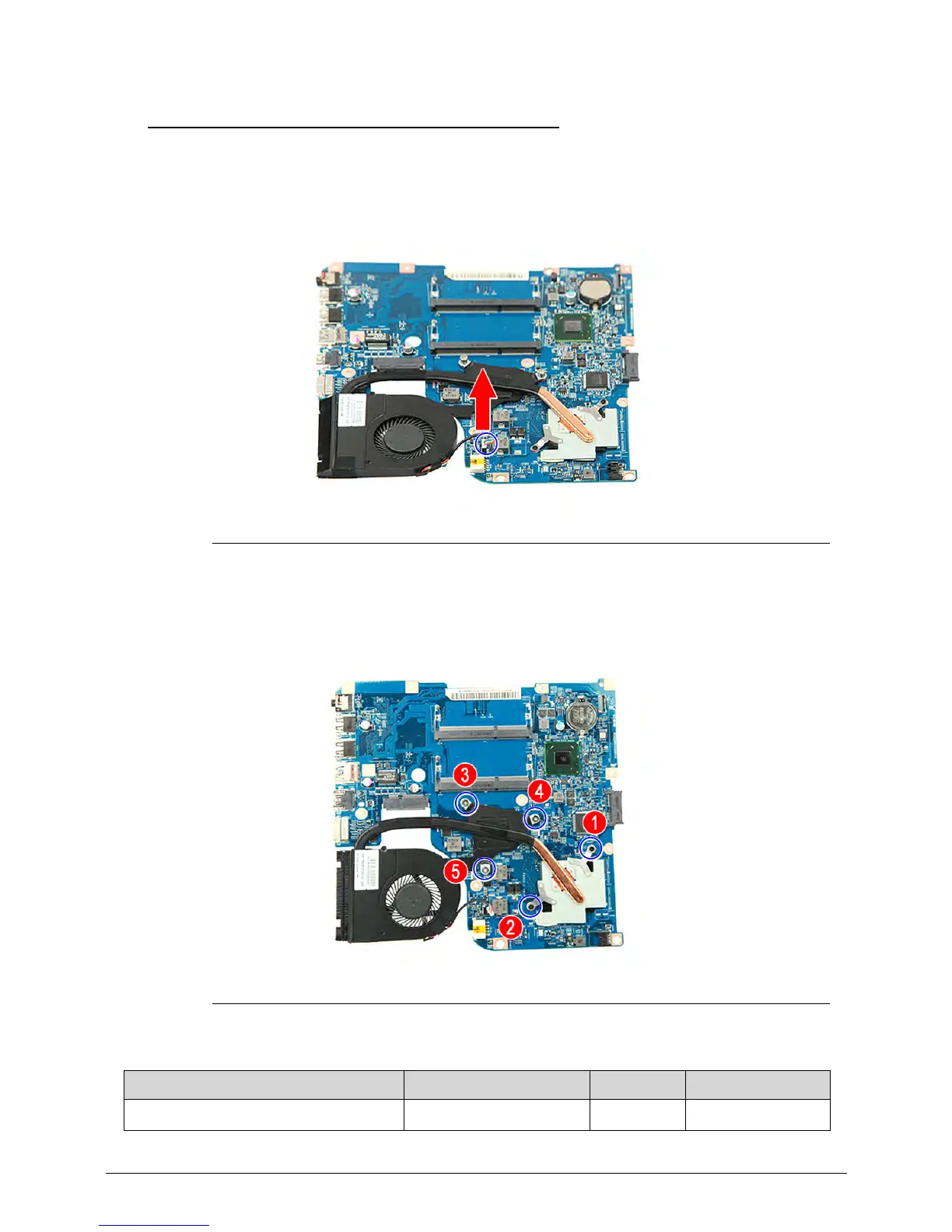

Figure 3-39. Fan Cable
3. Loosen the spring-loaded captive screws securing the thermal module. Follow the screw
sequence indicated on Figure 3-40.
Figure 3-40. Thermal Module Screws
Table 3-40. Screws
Step Screw Quantity Screw Type
Thermal Module Disassembly – 5 –

Acer Aspire V5-571 Specifications

General

Graphics	Intel HD Graphics 4000
Operating System	Windows 8
Processor	Intel Core i3/i5/i7 (depending on model)
RAM	4GB DDR3
Storage	500GB HDD
Display	15.6-inch HD (1366 x 768)
Battery	4-cell Li-ion battery
Weight	2.3 kg
Ports	2 x USB 2.0, 1 x USB 3.0, HDMI, Ethernet
Wireless	802.11b/g/n
Webcam	HD webcam
