Acer Aspire V5-571 User Manual

3-38 Machine Maintenance
Removing the LCD Module 0
1. Perform the “Removing the Mainboard” procedure described on page 3-29.
2. Gently pull out the WLAN antenna cables from lower case; remove the adhesive tapes
securing the cables and release the cables from the latches.

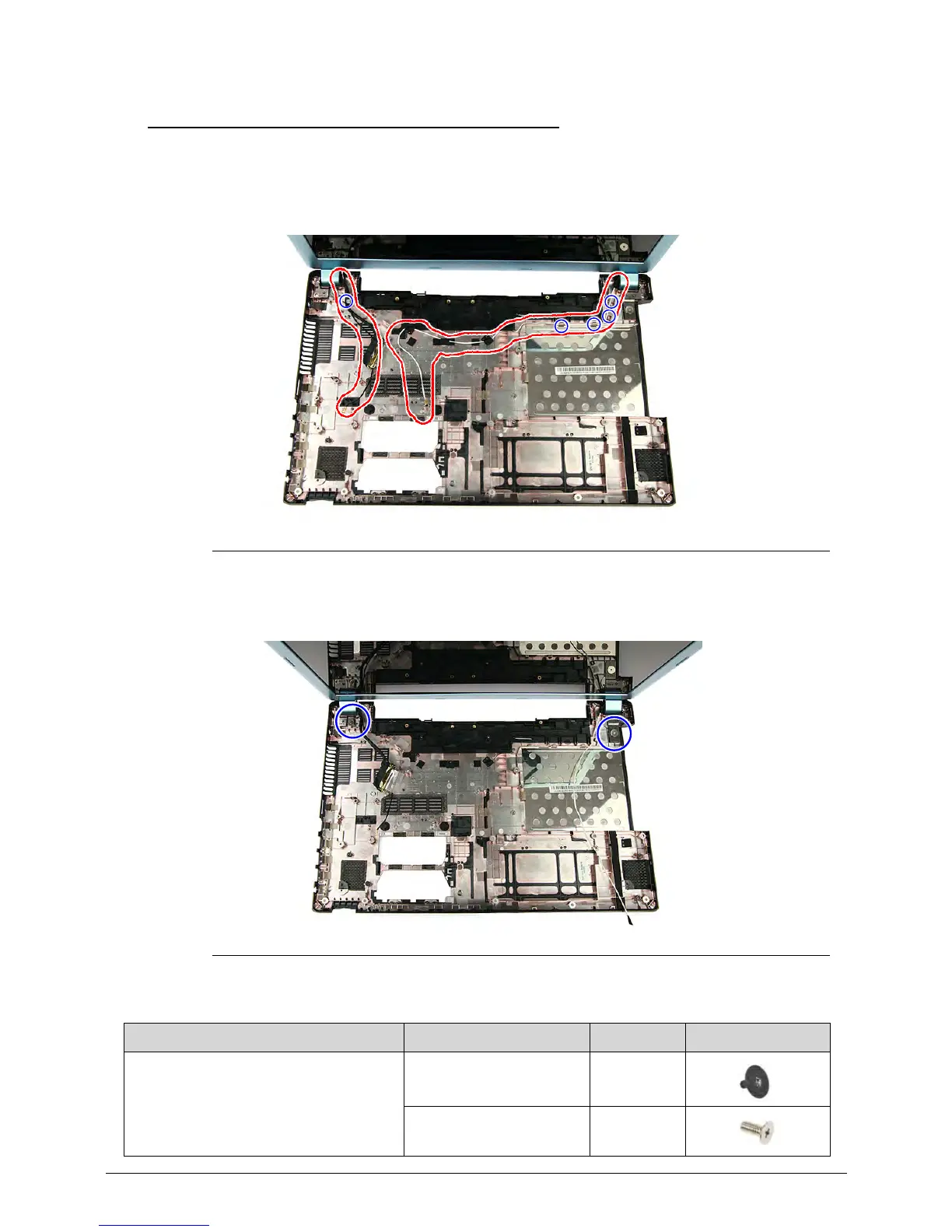

Figure 3-48. WLAN Antenna Cables - Latches and Adhesive Tapes
3. Remove the two screws securing the LCD module.
Figure 3-49. LCD Module Hinge Screws
Table 3-49. Screws
Step Screw Quantity Screw Type
LCD Module Disassembly M2 ×3 1
M2.5 ×L5 1

Acer Aspire V5-571 Specifications

General

Graphics	Intel HD Graphics 4000
Operating System	Windows 8
Processor	Intel Core i3/i5/i7 (depending on model)
RAM	4GB DDR3
Storage	500GB HDD
Display	15.6-inch HD (1366 x 768)
Battery	4-cell Li-ion battery
Weight	2.3 kg
Ports	2 x USB 2.0, 1 x USB 3.0, HDMI, Ethernet
Wireless	802.11b/g/n
Webcam	HD webcam
