Hardware Features

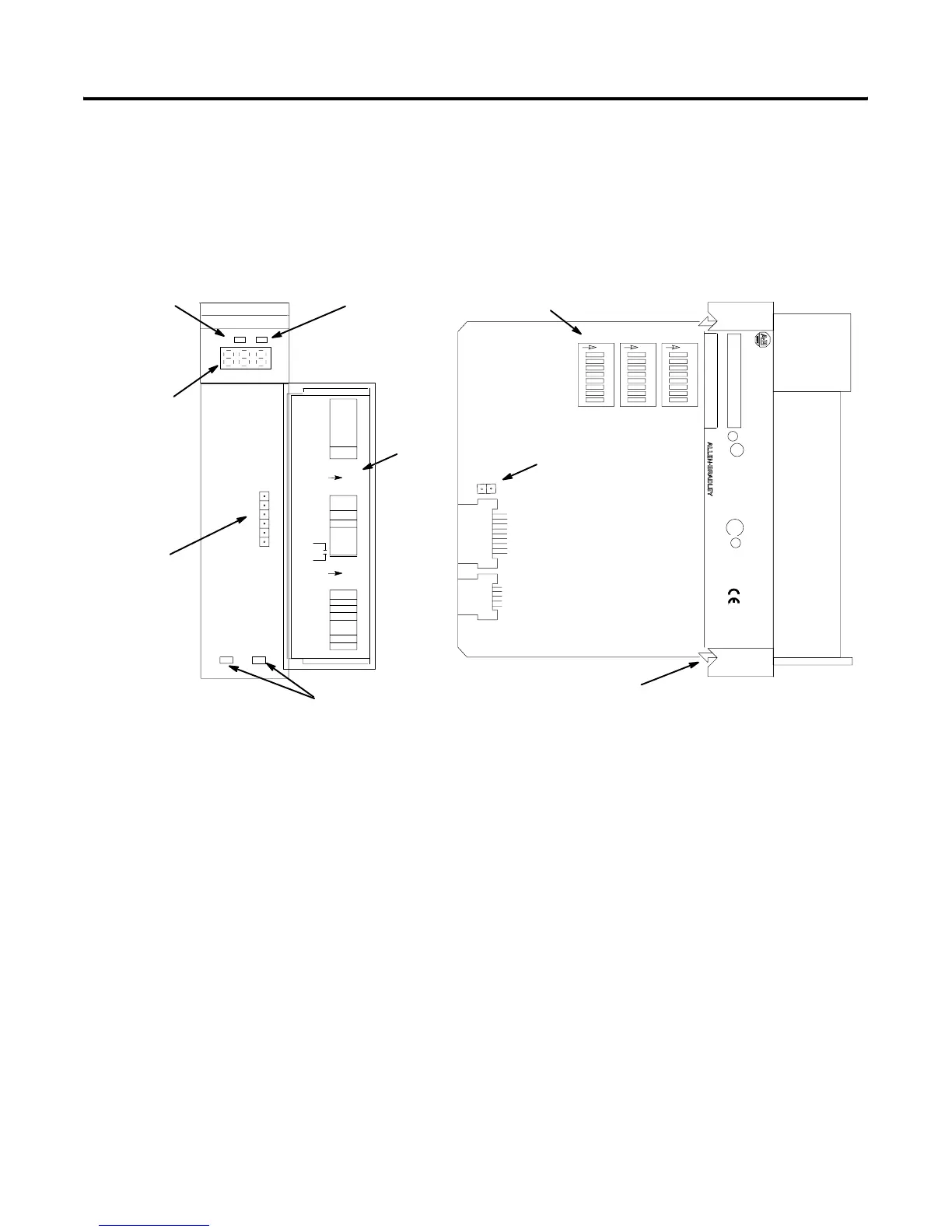

The 1747-ASB module's hardware features are highlighted below.
Detailed installation, operation, and troubleshooting information is
contained in chapters 5, 6, and 7.
Status Display and LEDs
The Status Display provides alphanumeric status of the 1747-ASB
module and RIO link. When combined with the COMM and FAULT
LEDs, they are very effective troubleshooting tools.
DIP Switches
The 1747-ASB module's three DIP switches allow you to configure the
following items:
• Starting Logical Rack Number (Logical Rack) - is the
1747-ASB module's starting logical rack number in the scanner's
image.
• Starting Logical Group Number (Logical Group) - is the
1747-ASB module's starting logical group number within the
scanner's image.
SLC 500
CAT SER
SERIAL NO. FRN
U
L
SA
ADAPTER
FAULT LED
(Red)
Door
Label
Status Display
Cable Tie Slots
DIP Switches
RIO Link and
Processor
Restart
Lockout
Connector
Self-Locking Tab
1 2 3 4 5 6 7 8
SW1
O
N
1 2 3 4 5 6 7 8
SW2
O
N
1 2 3 4 5 6 7 8
SW3
O
N
COMM LED
(Green)
IMPORTANT:
INSTALL IN SLOT ZERO OF MODULAR CHASSIS ONLY
REMOTE I/O ADAPTER MODULE
FAC 1M MADE IN USA
CURRENT REQUIREMENT: 375mA
LISTED IND. CONT. EQ.
FOR HAZ. LOC. A196
CLASS 1, GROUPS A, B, C AND D, DIV. 2
OPERATING
TEMPERATURE
CODE T3C
1 234567 8
SW1
1 2 3 4 5 6 7 8
SW2
1 2 3 4 5 6 7 8
SW3
O
N
O
N
LINE 1
SHLD
LINE 2
NC
IN
RET
(MSB)
LOGICAL
RACK
(LSB)
LOGICAL
GROUP
BAUD
RATE
PRI/COMP
RSV
(MSB)
(LSB)
SIZE
HLS
PRL
RESP
LAST CHA
ADDR
MODE
SP MODE
KEY
1747–ASB
Manufacturing Test Plug
ST ATUS
COMM FAULT
R
R
