Publication 1747-UM006B-EN-P - June 2003
Installation and Wiring 5-7
Octal Label Kit Installation
The octal filter and door label must be used when working with a PLC
processor as a master. An octal label kit is included with the I/O
modules listed in the table on page 5-8. The kits can also be obtained
through your Rockwell Automation distributor.
Applying the Octal Filter Label
1. Remove the octal filter label from its paper carrier.
2. Align the octal filter label numbers horizontally to the module
color bar and over the decimal filter numbers, as shown in the
illustration below.
3. Apply the octal label to the filter.
4. Press firmly to ensure proper adhesion of the label.
Applying the Octal Door Label
1. Remove the octal door label from its paper carrier.
2. Align it over the decimal door label on the inside of the door.
3. Press firmly to ensure proper adhesion of the label.

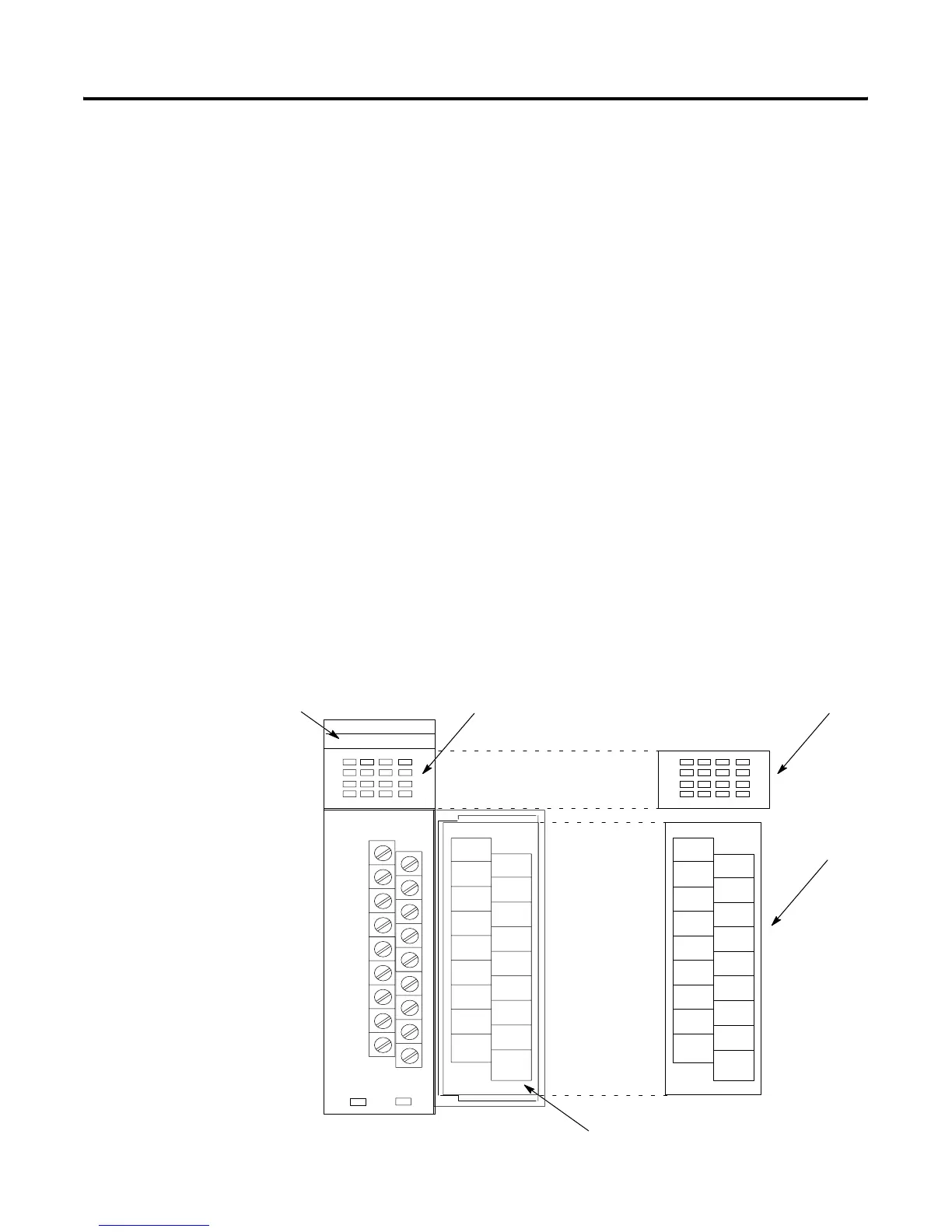

INPUT
1746-XXXX 1746-XXXX (OCTAL)
OCTAL
Module Color Bar
Decimal Filter Label
Octal Filter Label
Octal Door Label
Decimal Door Label
