Allen-Bradley 1747-ASB User Manual

Publication 1747-UM006B-EN-P - June 2003
Configuration 4-23

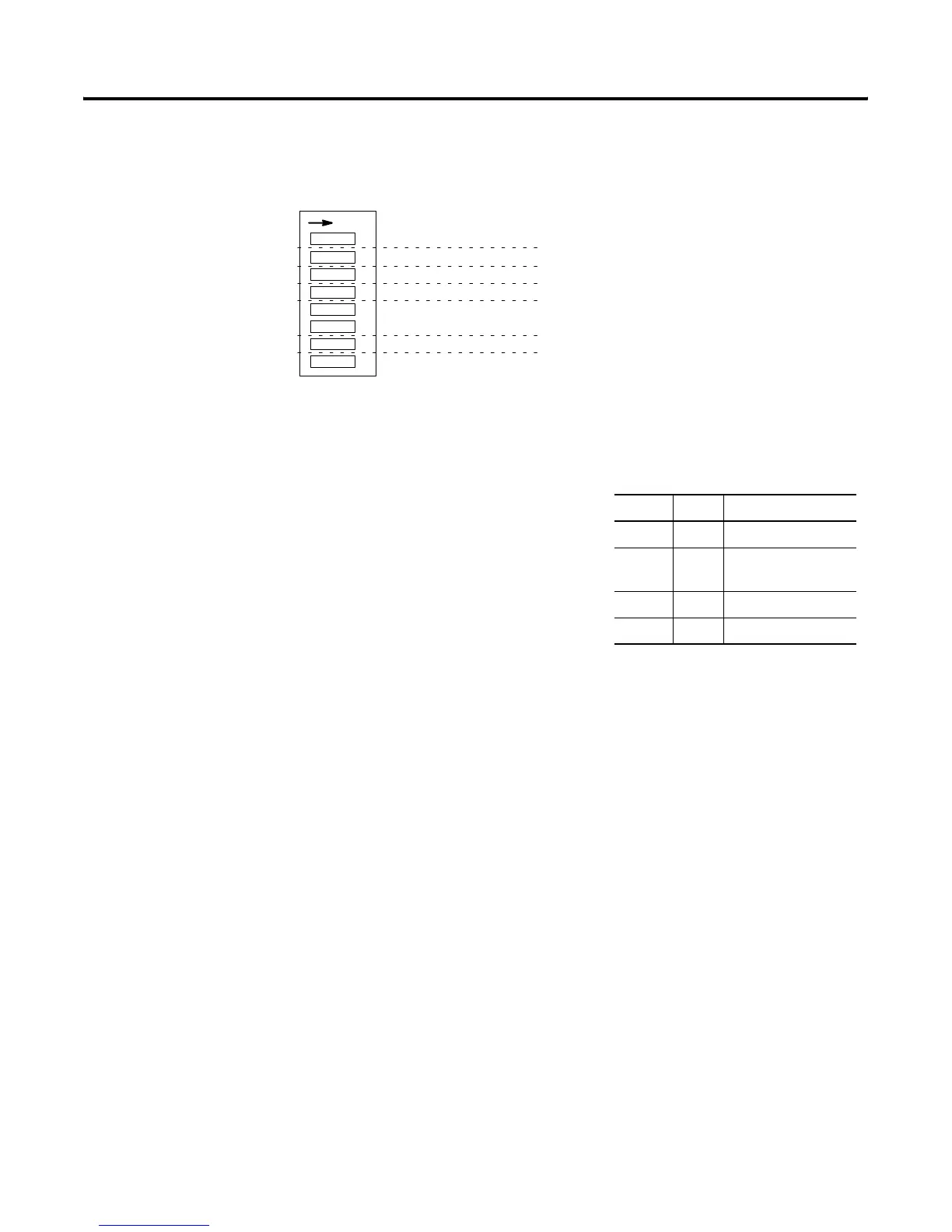

SW3
• Hold Last State
ON=Hold Last State
OFF=Do Not HOld Last State
(default)
• Processor Restart Lockout
ON=Automatic Restart (default)
OFF=Processor Lockout
• Link Response
ON=Restricted (default)
OFF=Unrestricted
• Last Chassis
ON=Not Last Chassis (default)
OFF=Last Chassis
• Addressing Mode
SW3
1
O N
2456783
Hold Last State
Processor Restart Lockout
Link Response
Last Chassis/PLC-3 Backup
Addressing Mode Bit 1 (MSB)
Addressing Mode Bit 0 (LSB)
Specialty I/O Mode
I/O Module Keying
5 6 Address
ON ON Invalid
ON OFF 1-slot Addressing
(default)
OFF ON 1/2-slot Addressing
OFF OFF 2-slot Addressing
