Complete Software Tasks Required at CompactLogix 5370 Controller Installation Chapter 4

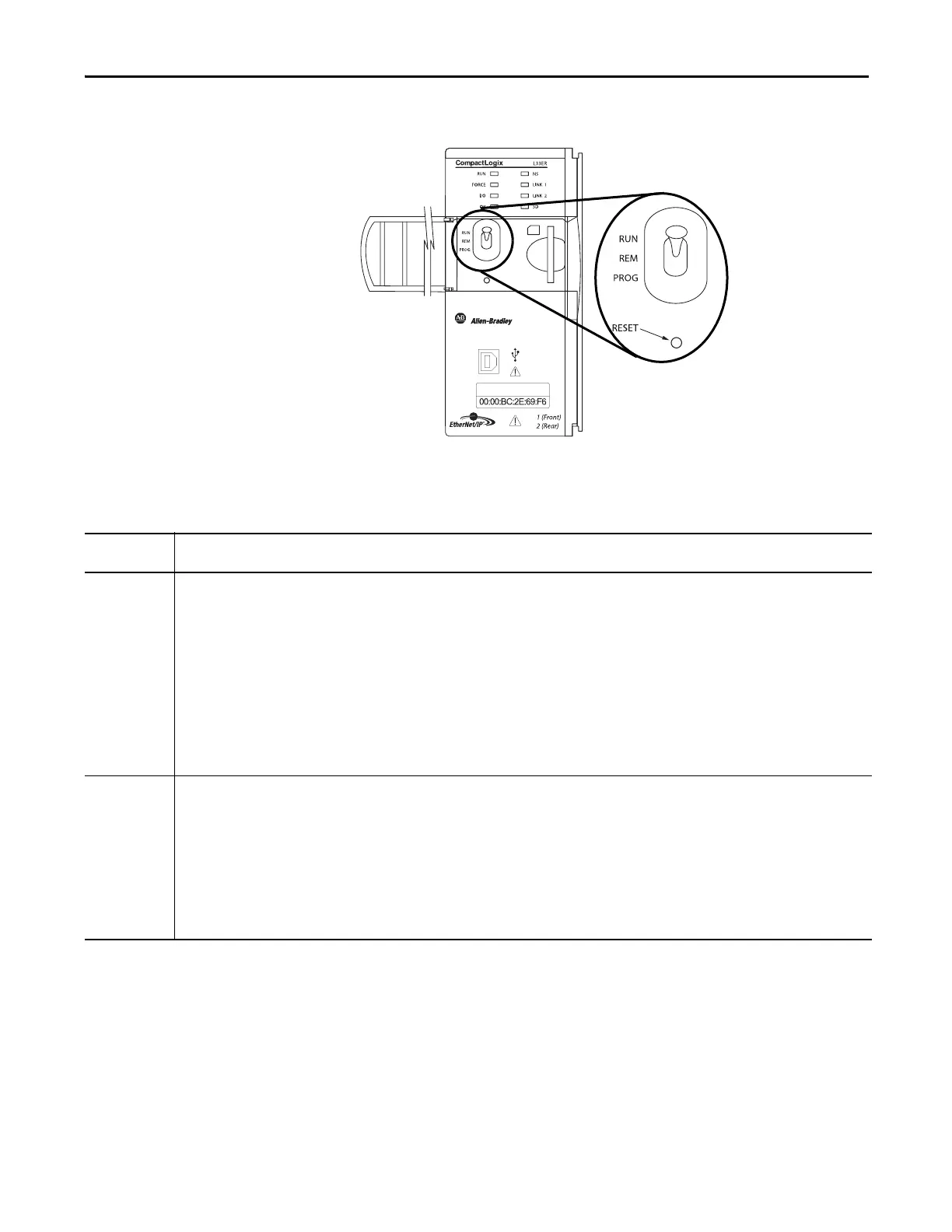

This graphic shows the mode switch on a CompactLogix 5370 L3 controller.
Use the mode switch on the controller to set the operating mode of the
CompactLogix 5370 controller.
Mode Switch
Position
Description
Run You can perform these tasks:
• Upload projects.
• Run the program and enable outputs.
You cannot perform these tasks:
• Update controller firmware.
• Create or delete tasks, programs, or routines.
• Create or delete tags or edit online.
• Import a program to the controller.
• Change the port configuration of the controller, advanced port configuration, nor network configuration settings.
• Change controller configuration parameters that are directly set for operation on a device-level ring (DLR) network topology.
Prog You can perform these tasks:
• Update controller firmware.
• Disable outputs.
• Upload/download projects.
• Create, modify, and delete tasks, programs, or routines.
• Change the port configuration of the controller, advanced port configuration, nor network configuration settings.
You cannot perform these tasks:
• Use the controller to execute (scan) tasks.
