Chapter 4 Complete Software Tasks Required at CompactLogix 5370 Controller Installation
Select the Operating Mode of
the Controller
CompactLogix 5370 controllers have slightly different front designs and mode
switch placements.

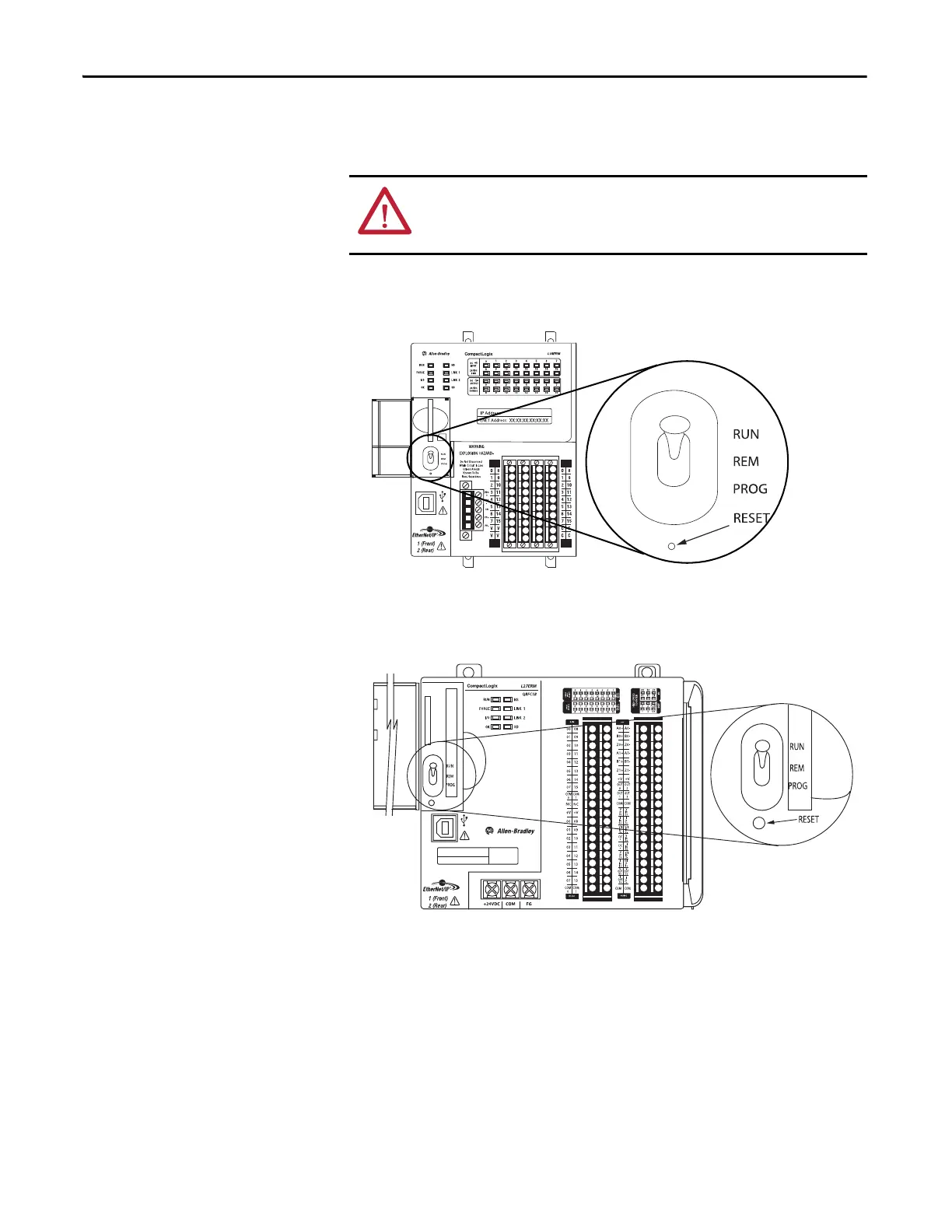

This graphic shows the mode switch on a CompactLogix 5370 L1 controller.
This graphic shows the mode switch on a CompactLogix 5370 L2 controller.
WARNING: When you change switch settings while power is on, an electrical
arc can occur. This could cause an explosion in hazardous location installations.
Be sure that power is removed or the area is nonhazardous before proceeding.
