64 Rockwell Automation Publication 1769-UM021G-EN-P - October 2015
Chapter 3 Install the CompactLogix 5370 L3 Controller
Install the Removable Terminal Block
To remove the terminal block, loosen the upper and lower retaining screws. The
terminal block backs away from the module as you remove the screws. When
replacing the terminal block, torque the retaining screws to 0.46 N
•m (4.1 lb•in).
.
Wire the Terminal Block
When wiring the terminal block, keep the finger-safe cover in place.
1. Loosen the terminal screws to be wired.
2. Route the wire under the terminal pressure plate.
You can use the bare wire or a spade lug. The terminals accept a 6.35 mm
(0.25 in.) spade lug.
3. Tighten the terminal screw making sure the pressure plate secures the wire.
Recommended torque when tightening terminal screws is 0.68 N•m
(6 lb•in).

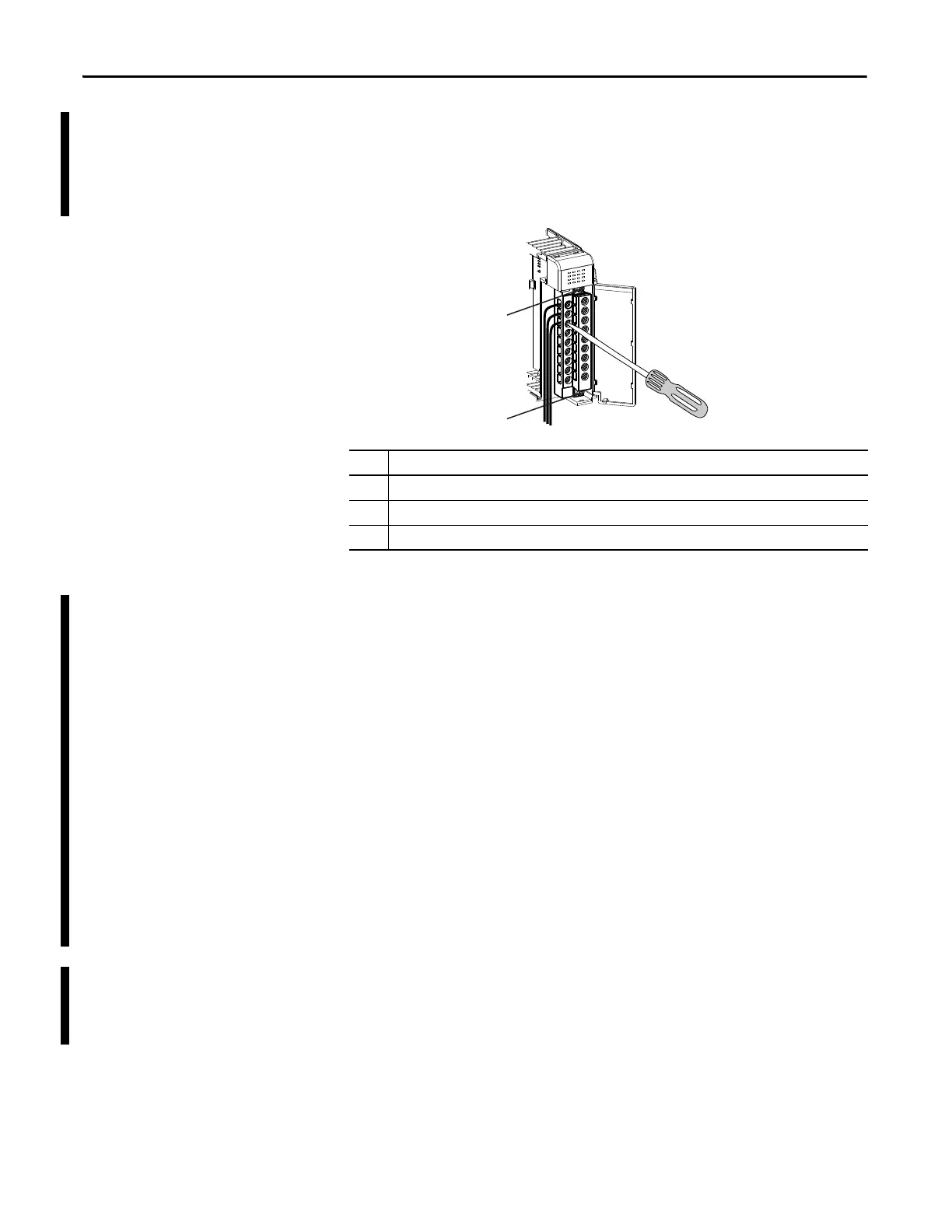

Item Description
1 Wiring the finger-safe terminal block
2 Lower retaining screws
3 Upper retaining screws
The terminal screws are non-captive. You can use a ring lug [maximum 6.35
mm (0.25 in.) o.d. with a 3.53 mm (0.139 in.) minimum i.d. (M3.5)] with the
module.
If you need to remove the finger-safe cover, insert a screwdriver into one of the
square wiring holes and gently pry the cover off. If you wire the terminal block
with the finger-safe cover removed, you cannot put it back on the terminal
block because of wires in the way.
