Allen-Bradley CompactLogix 5370 L1 User Manual

180 Rockwell Automation Publication 1769-UM021G-EN-P - October 2015
Chapter 7 Use I/O Modules with CompactLogix 5370 L1 Controllers

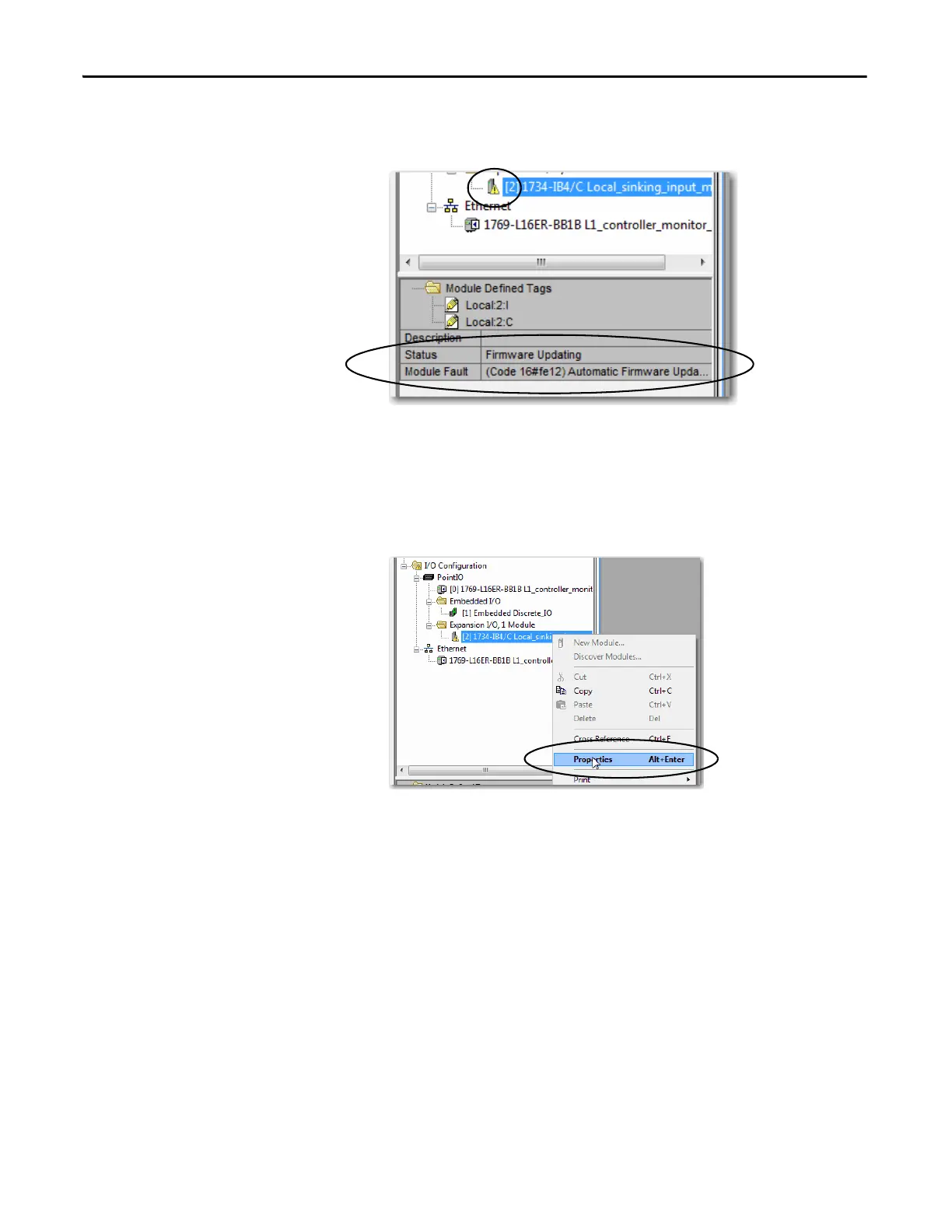

The following graphic shows the Quick View Pane, which indicates the type of
fault.
To see the fault description on the Connection tab in Module Properties dialog
box, complete these steps.
1. In the I/O Configuration, right-click the faulted I/O module and
choose Properties.
