4-18 Configuring a Scanner to Communicate with the 1203-GK5 Module or 1336-GM5 Board
17. Select the records to download, and then click OK. A DeviceNet
Manager Message appears.

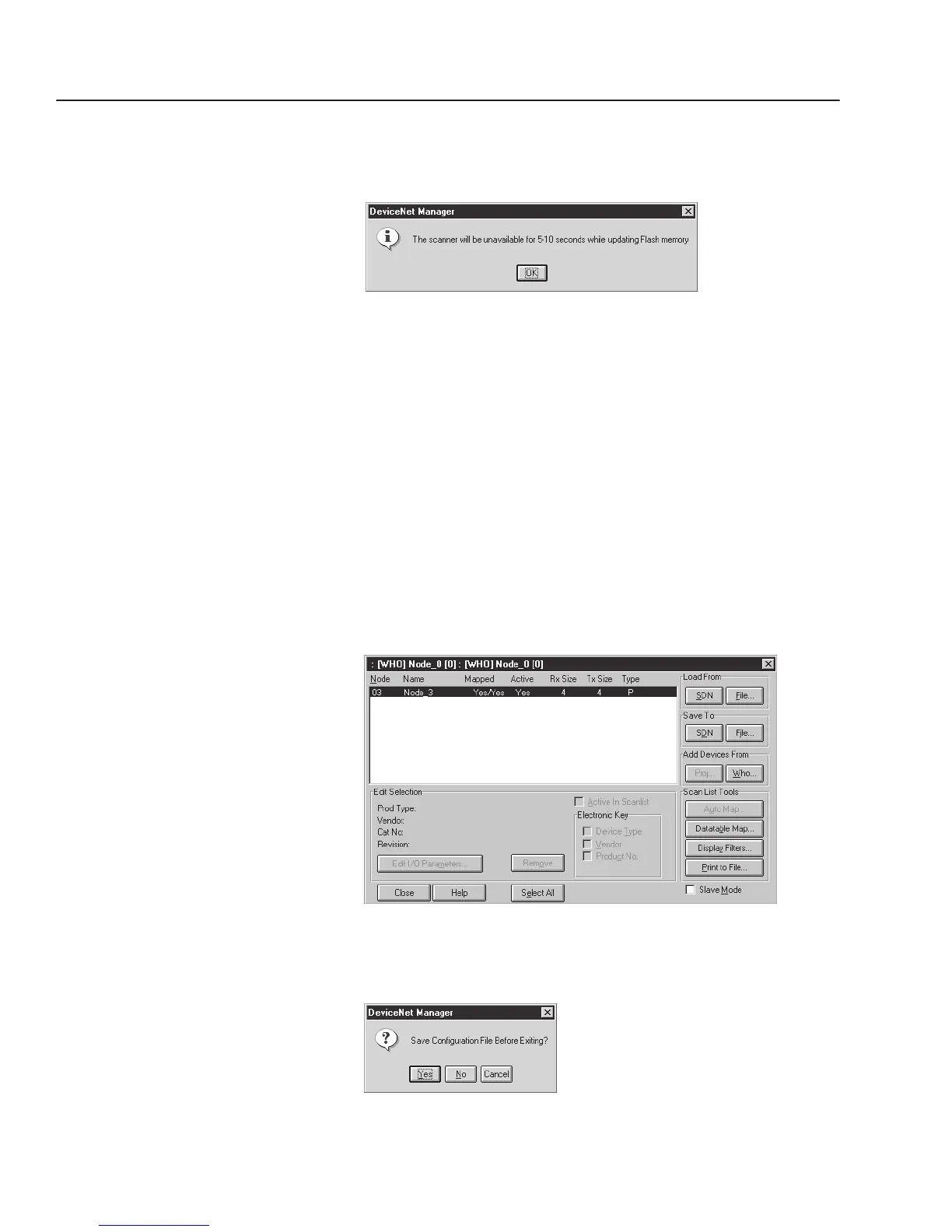

Figure 4.33
DeviceNet Manager Message
18. Click OK to download the new configuration to the SLC. The
1747-SDN Scan List Editor dialog box reappears.
The SLC is now configured to communicate with the product
connected to the network with the 1203-GK5 module or 1336-GM5
board. Refer to the “Saving a Configuration to a File and Quitting
DeviceNet Manager” on page 4-18.
Saving a Configuration to a File and
Quitting DeviceNet Manager
After a configuration is downloaded to a controller, you have the
option of saving it to a disk file. It is recommended that you do save it
to a disk file as you quit DeviceNet Manager so that you have a
backup file on your computer. Follow these instructions:
You begin the process of saving the file in the Scan List Editor dialog
box.
Figure 4.34
Example Scan List Editor Dialog Box
1. Click Close to close the Scan List Editor dialog box. A
DeviceNet Manager message appears.
Figure 4.35
DeviceNet Manager Message
