Chapter 4 Connect the Kinetix 7000 Drive System
This is an example of a grounded B-phase (delta secondary).

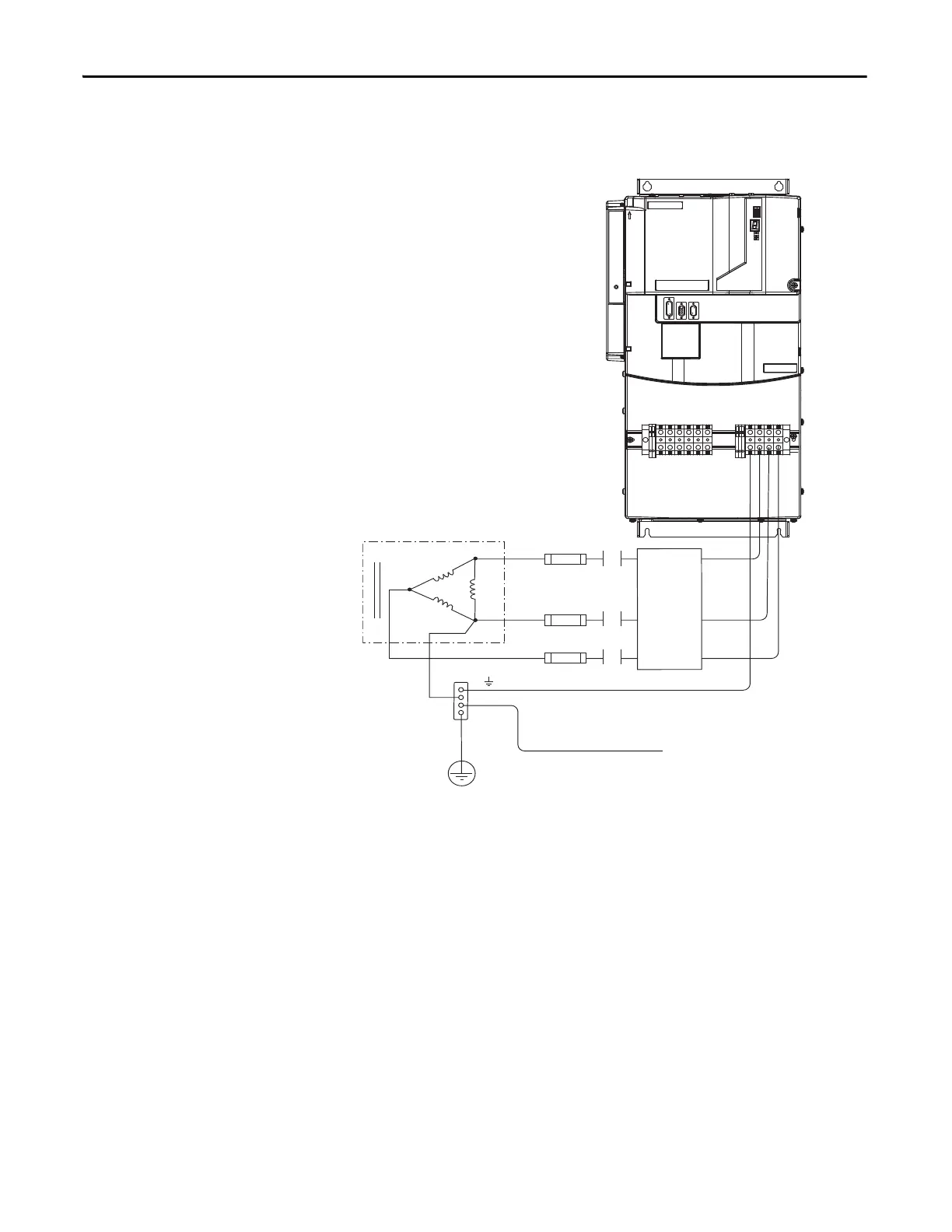

Figure 45 - Grounded B-phase Power Wiring - Delta Secondary
L1
L3
L2
2099-BM08-S Shown with Lower
Front Panel Removed
Transformer (Delta) Secondary
Transf or mer
Bonded Cabinet
Ground
Ground Grid or
Power Distribution Ground
To Ground Stud
Line Filter
