Chapter 4 Connect the Kinetix 7000 Drive System

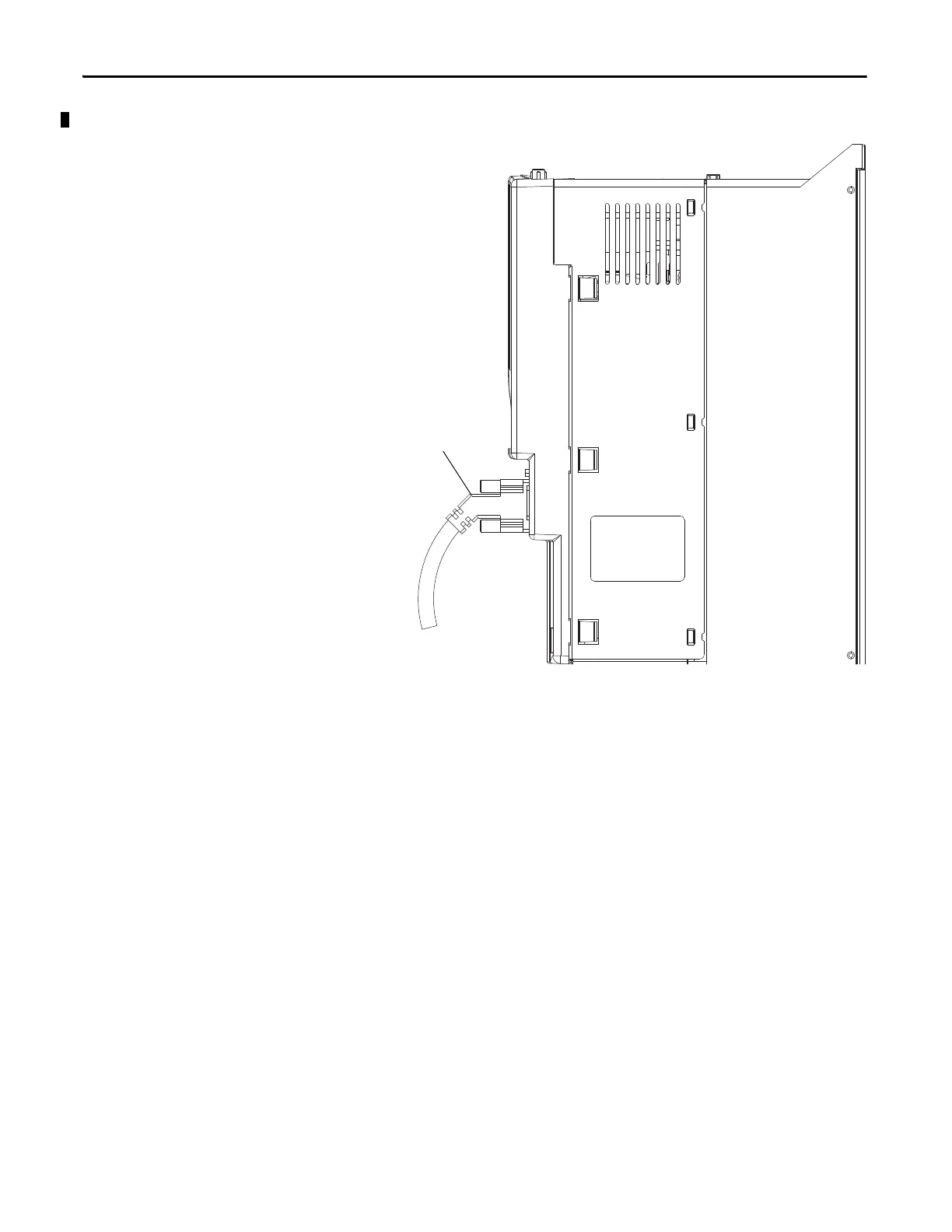

Figure 54 - Premolded Motor Feedback Cable Connection
Wire Panel-mounted Breakout Board Kits
The panel-mounted breakout board kit (catalog number 2090-UXBK-D15xx)
includes a (DIN rail) terminal block and cable. The cable connects between the
terminal block and the motor feedback (MF) connector. Wires from your flying-
lead motor feedback cable connect to the terminals.
Premolded Connector Cable:
2090-CFBM7DD-CEAAxx (standard, non-flex)
or
2090-CFBM7DD-CEAFxx (continuous flex)
Kinetix 7000 Drive
(Side View)
