Chapter 3 Install Your Controller

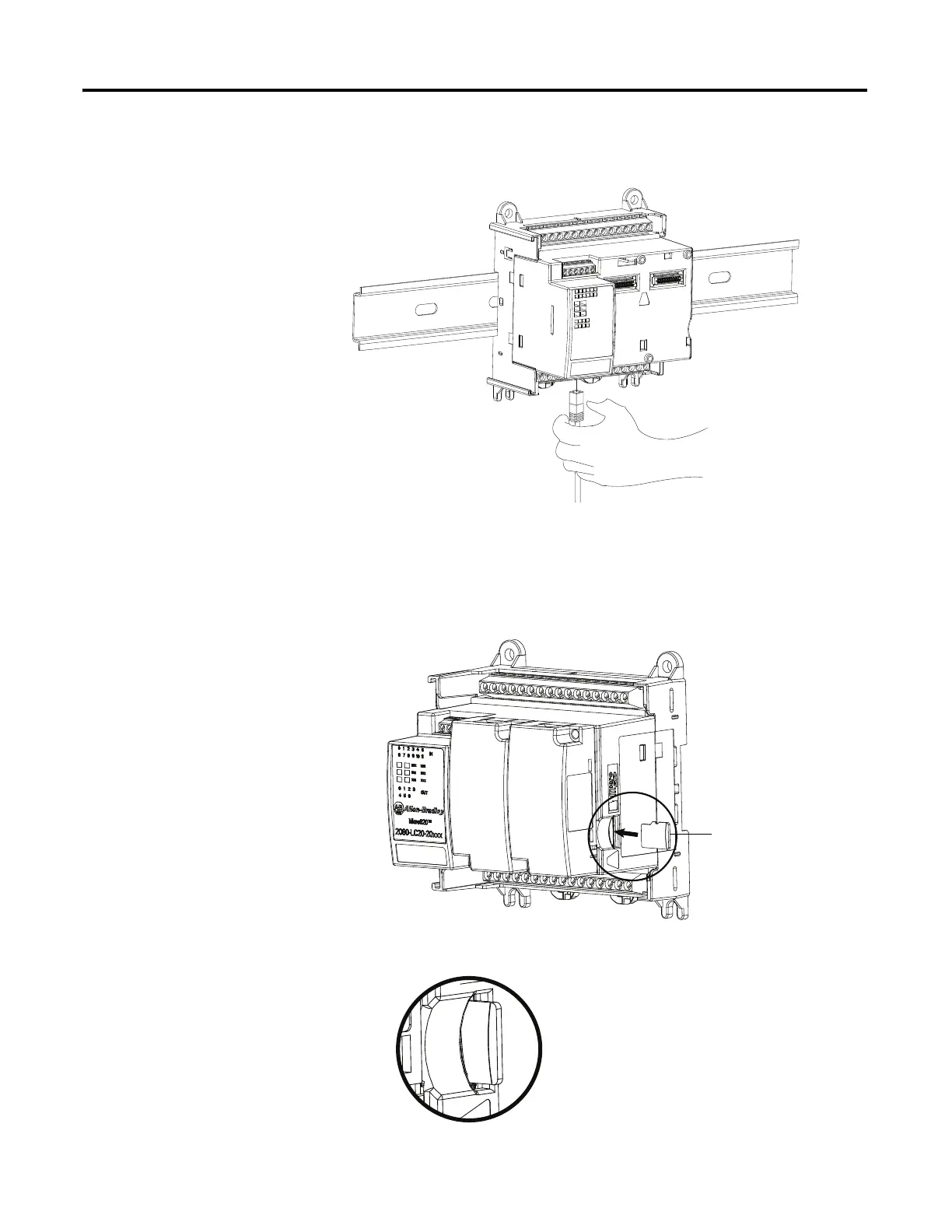

Connect the RJ-45 connector of the Ethernet cable to the Ethernet port on the
controller. The port is on the bottom of the controller.
Install the microSD Card
1. Insert the microSD card into the card slot.
You can install the microSD card in one orientation only. The beveled
corner should be at the bottom. If you feel resistance when inserting the
microSD card, pull it out and change the orientation.
2. Gently press the card until it clicks into place.
Insert the microSD
card into the slot.
46218
