74 Rockwell Automation Publication 2080-UM005B-EN-E - March 2015
Chapter 8 Using the Micro800 Remote LCD
Micro800 Remote LCD
The 2080-REMLCD module is IP65-rated and can be mounted through the
front panel or on the same DIN rail as the Micro820 controller.
It has two modes of operation:
• USB Mode
• Text Display Mode
– I/O Status and Main Menu operations (for example, change to
RUN mode)
– Optional user-defined screens (using the LCD_REM instructions)
USB Mode
In USB mode, the Remote LCD module acts as a USB pass-through for
Connected Components Workbench. The Remote LCD module automatically
enters USB mode when traffic is detected.
For example:
1. Remote LCD is in text display mode showing the I/O Status screen
by default.
2. The user connects a USB cable between the PC and the Remote LCD.
3. Remote LCD is automatically detected by the PC as a USB device and the
Remote LCD automatically goes to USB mode.
4. I/O Status screen is no longer shown. The user is now able to download
program over USB using Connected Components Workbench.
5. When the USB cable is disconnected and no traffic is detected for
30 seconds, the Remote LCD automatically goes back to text display mode
showing the I/O Status screen.

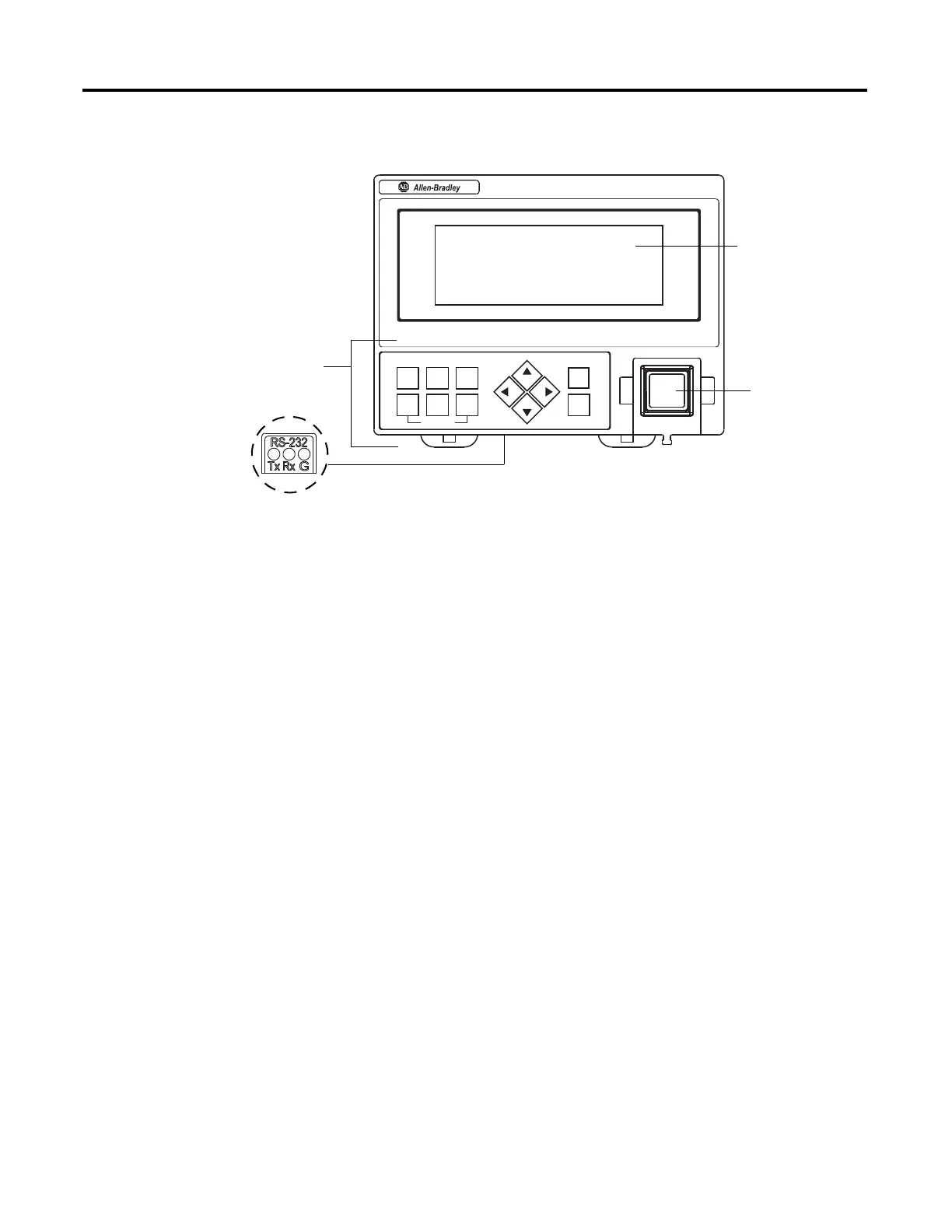

OK
ESC
F4
F5
F1 F2
F3
F6
MENU
USB port
Keypad
3.5-inch LCD
screen
RS232 serial port for
connectivity to the controller
