Initial Configuration
20
NX-Series Controllers - WebConsole & Programming Guide
3. Click the System Settings button to open the Communications Settings dialog (FIG. 5). If there is no system selected, click the
Default Settings button to open the dialog.
4. Select the USB tab to view the USB options (FIG. 6).
5. On the USB tab, highlight the Master you want to connect to and click Select.
6. Click Edit to open the Edit USB Master’s Username/Password dialog to set the user name and password for authentication
access to the Master. This step is optional. You can only change the user name and password in the dialog. The additional
fields are view-only.
7. Click OK to close the USB Master’s Username/Password dialog, and click OK in the Communication Settings dialog to return to
the Communication Settings dialog, now indicating the USB-connected Master as the current connection configuration.
8. Click OK to close the Communication Settings dialog and return to the main application.

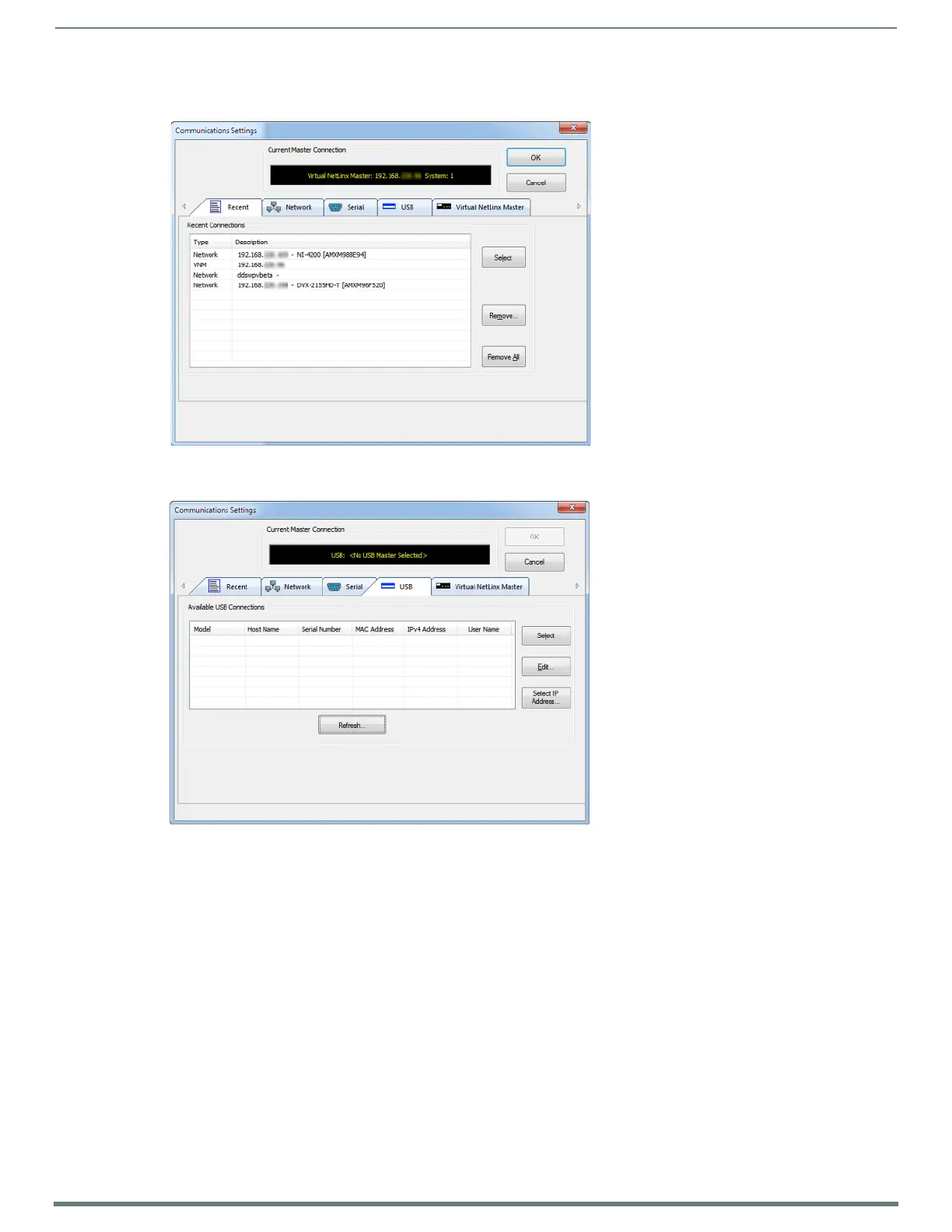

FIG. 5
Communication Settings dialog - Recent tab
FIG. 6 Communications Settings dialog - USB tab
