REPLACING THE HEADLIGHT
BULBS
Read page 106 (BULBS) carefully.
The front fairing is shown removed from
the vehicle for better clarity. In fact, the
high and low beam bulbs can be replaced
with the front fairing in place.

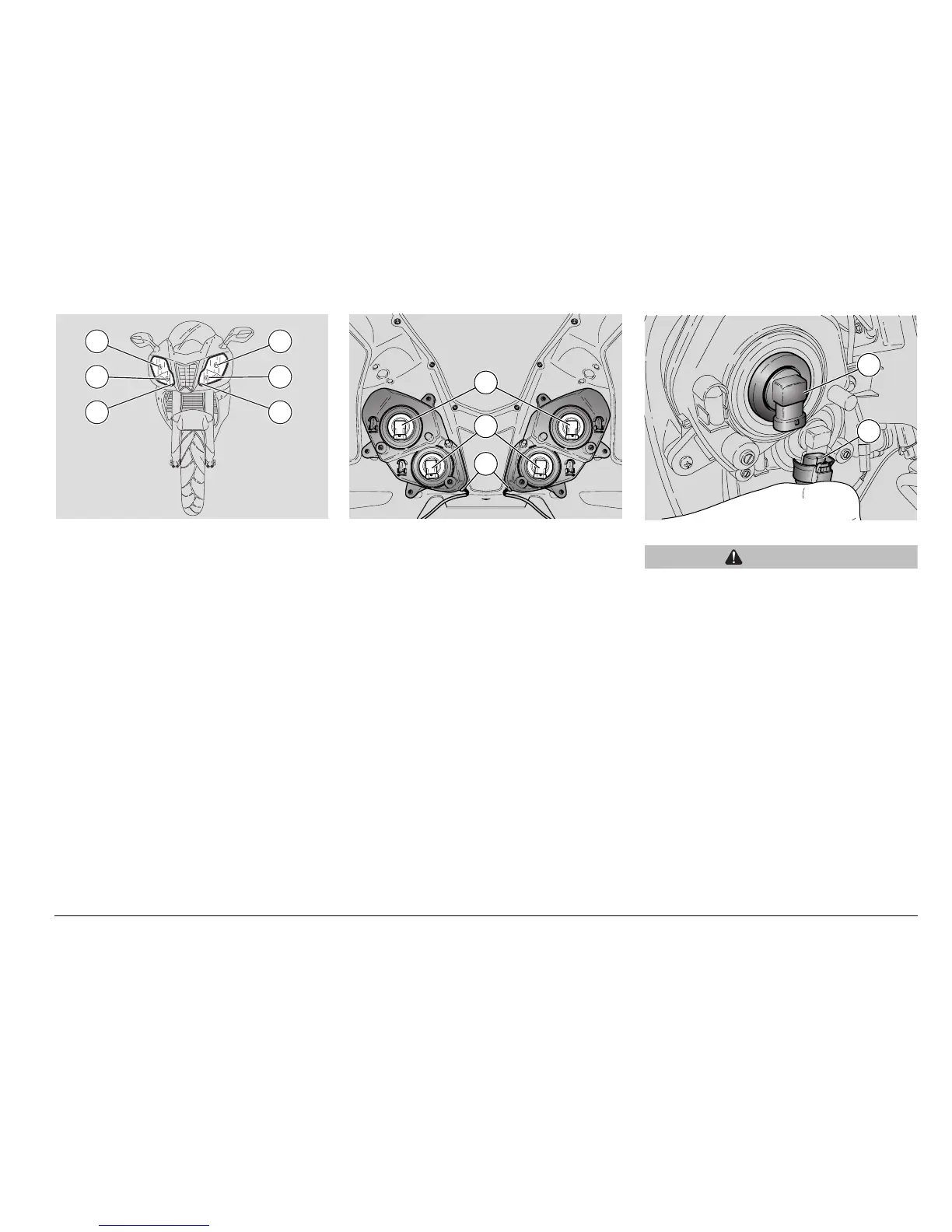

The headlight accommodates the following
bulbs:
√ Two high beam bulbs (1).
√ Two low beam bulbs (2).
√ Two parking light bulbs (3).
High beam and low beam use the same
bulbs.
If one of the bulbs (2) is damaged and no
spare bulb is available, you may replace it
with one of the bulbs (3).
This is only intended to help you ride back
home or reach the nearest parts shop.
Replace the damaged bulb as soon as
possible.
To replace:
◆ Place the vehicle on the stand, see page
60 (PLACING THE VEHICLE ON THE
STAND).
HIGH AND LOW BEAM BULBS
NOTE Disconnect one connector at a
time to avoid confusing the various
connectors when refitting.
When high and low beam bulb connectors
must be removed at the same time, mark
them with their positions and make sure to
refit them in the correct positions on
assembly.
◆ Remove the upper side cover, see page
83 (REMOVING THE FAIRING UPPER
FRONT COVERS).
CAUTION
Never pull on the wiring to disconnect a
bulb connector.
◆ Disconnect the connector (4).
◆ Rotate the lockring anticlockwise and
extract the bulb holder (5).
◆ Fit a new bulb of equal rating.
◆ Refit the bulb holder into the seat and
rotate clockwise to lock in place.
◆ Refit the connector (4).
3
2
1
3
2
1
3
2
1
4
5
