30
use and maintenance RSV 1000 R - RSV 1000 R FACTORY
ACCESSORIES

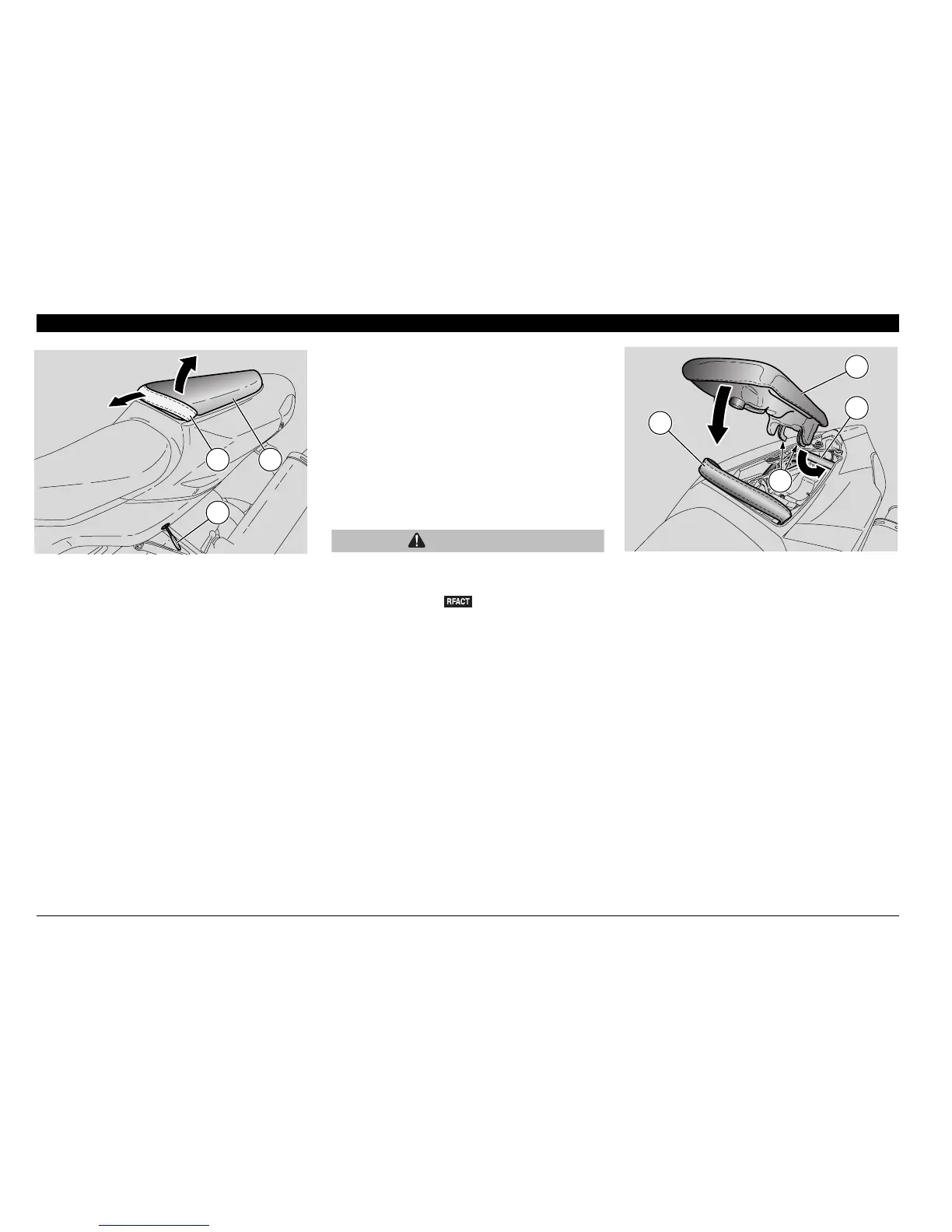

UNLOCKING/LOCKING THE
PASSENGER SEAT
◆ Place the vehicle on the stand, see page
60 (PLACING THE VEHICLE ON THE
STAND).
◆ Insert the key (1) into the seat lock.
◆ Release the passenger seat (2) from the
grab strap (3).
◆ Turn the key (1) anticlockwise.
◆ Raise the front end of the passenger
seat (2).
◆ Withdraw the passenger seat (2).
NOTE Before lowering and locking the
seat (2), make sure that you have not left
the key in the glove/tool kit compartment.
To lock the seat (2), proceed as follows:
◆ Slide the hooks (4) placed at the rear
end of the passenger seat underneath
the frame tube (5) of the rear subframe.
◆ Push the passenger grab strap (3)
forward and lower the front end of the
seat. Make sure to set the grab strap in
the correct position.
◆ Press down on the front end of the seat
so that the lock becomes engaged.
WARNING
Make sure the seat (2) is locked
securely before riding.
NOTE The version is only
approved in the single-seater configuration
for the R market. The corresponding
market version is not fitted with a
passenger seat.
The tail of the vehicle accommodates a
convenient glove / tool kit compartment,
which is accessed by removing the
compartment cover.
NOTE The glove/tool kit compartment
cover can only be used when the
passenger seat (2) is removed and vice
versa.
To use the vehicle with the glove/tool kit
compartment cover it is necessary to
remove the passenger seat as previously
described.
See page 31 (UNLOCKING/LOCKING
THE GLOVE/TOOL KIT COMPARTMENT
COVER) for installation instructions.
1
3 2
5
2
3
4
