use and maintenance RSV 1000 R - RSV 1000 R FACTORY

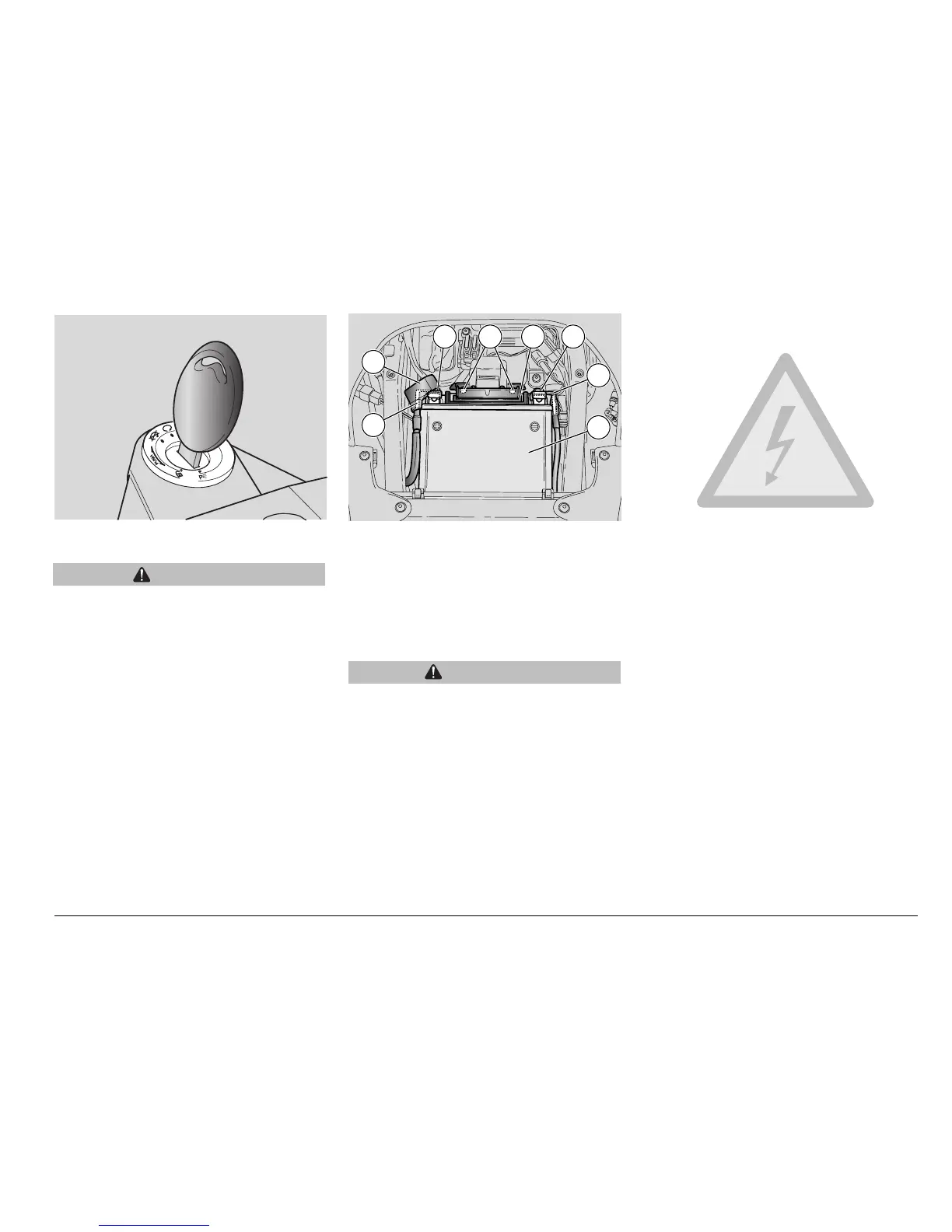

BATTERY REMOVAL
CAUTION
When the battery is removed, the digital
clock and red line setting will be reset to
zero. See page 20 (MULTIFUNCTION
COMPUTER) for instructions on how to
set clock and red line.
Read page 98 (BATTERY) carefully.
◆ Ensure the ignition switch is in the ""
position.
◆ Remove the rider saddle, see page 81
(REMOVING THE RIDER SADDLE).
◆ Release and remove the negative (-)
terminal screw (1).
◆ Slide the negative lead (2) aside.
◆ Lift the red protective cap (3).
◆ Release and remove the positive (+)
terminal screw (4).
◆ Slide the positive lead (5) aside.
◆ Release and remove the two screws (6).
◆ Remove the battery retaining bracket (7).
◆ Grasp the battery (8) firmly and lift it out
of its mount.
WARNING
Once removed, the battery must be
stored in a safe place out of the reach of
children.
◆ Place the battery on a level surface, in a
cool, dry place.
◆ Refit the rider saddle, see page 81
(REMOVING THE RIDER SADDLE).
NOTE See page 101 (INSTALLING
THE BATTERY) for installation
instructions.
3
4 6 7 1
2
8
5
