SWING APRICODE 230
CONTROL UNIT
English
• Hydraulic
operators with hydraulic slowing only during closing
use electronic slowing only during OPENING (the
START
command must be given when the wing reaches the point
at which you require slowing to start). However during
CLOSING 2
START
commands must be given in quick
succession (within 2 seconds of each other) once the wing
reaches the mechanical stop (
WARNING
: rEL
=1
).
Note: the electronic slowing must involve a minimum
movement arc of approximately 15-20°.
Note: if you do not want to use the electronic slowing, give 2
START commands in quick succession (within 2 seconds of
each other) when the wing reaches the mechanical stop.
• Hydraulic
operators
fitted with
hydraulic slowing during
opening and closing
require the unit to learn the slowing
start points performed by the operator itself, therefore the
START
command must be given as soon as wing slowing is
observed (
WARNING
: rEL
=0
).
START
START
SLOWING START
*
STOP
(MECHANICAL STOP)
(
SLOWING)
*
ELECTRONIC SLOWING
*
HYDRAULIC SLOWING
START
when the wing
reaches the point at which
you require slowing to
start
START
SLOWING START
START
as soon as you
observe the wing slowing
SLOWING
START
DEFAULT functioning3.3
After the self-teach procedure the default functioning mode
is AUTOMATIC and with the factory settings (see the table
in the section entitled Programming).
See the section entitled Programming to modify the
functioning parameters.
AUTOMATIC MODE (default logic) (Lo.0)
The complete operating cycle is a follows:
START
with the
gate closed
the gate opens completely
remains open
for the PAUSE TIME set
closes at the end of the pause
time.
For the responses to the controls and input signals during the
functioning cycle: see the section entitled
Functioning
.
Enabling self-teach3.4
IT WILL BE NECESSARY TO:
re-enable self-teaching (
see fi g.7
) and switch OFF then
switch ON the control unit, IF it had been modifi ed:
- number of motors connected;
- connection to the electric lock;
- speed adjustment (
RF valves
) on the hydraulic operators.
re-perform the self-teach movements:
- each time Lrn flashes on the display (after RESET or
modification of the “approach speed” parameter (A9), or
Model (MoD).
Single/twin wing
movements (motor M1)
Only twin wing movements
(motor M2)
M1 opens
START
ELECTRONIC SLOWING
Or
HYDRAULIC SLOWING
START
START
movement end
START
M2 opens
START
ELECTRONIC SLOWING
Or
HYDRAULIC SLOWING
START
START
movement end
START
M2 closes
START
ELECTRONIC SLOWING
Or
HYDRAULIC SLOWING
START
START
movement end M2
M1 closes
START
ELECTRONIC SLOWING
Or
HYDRAULIC SLOWING
START
START
movement end M1
END: gate closed and stopped - the displays are switched OFF
(only in the case of two wings)

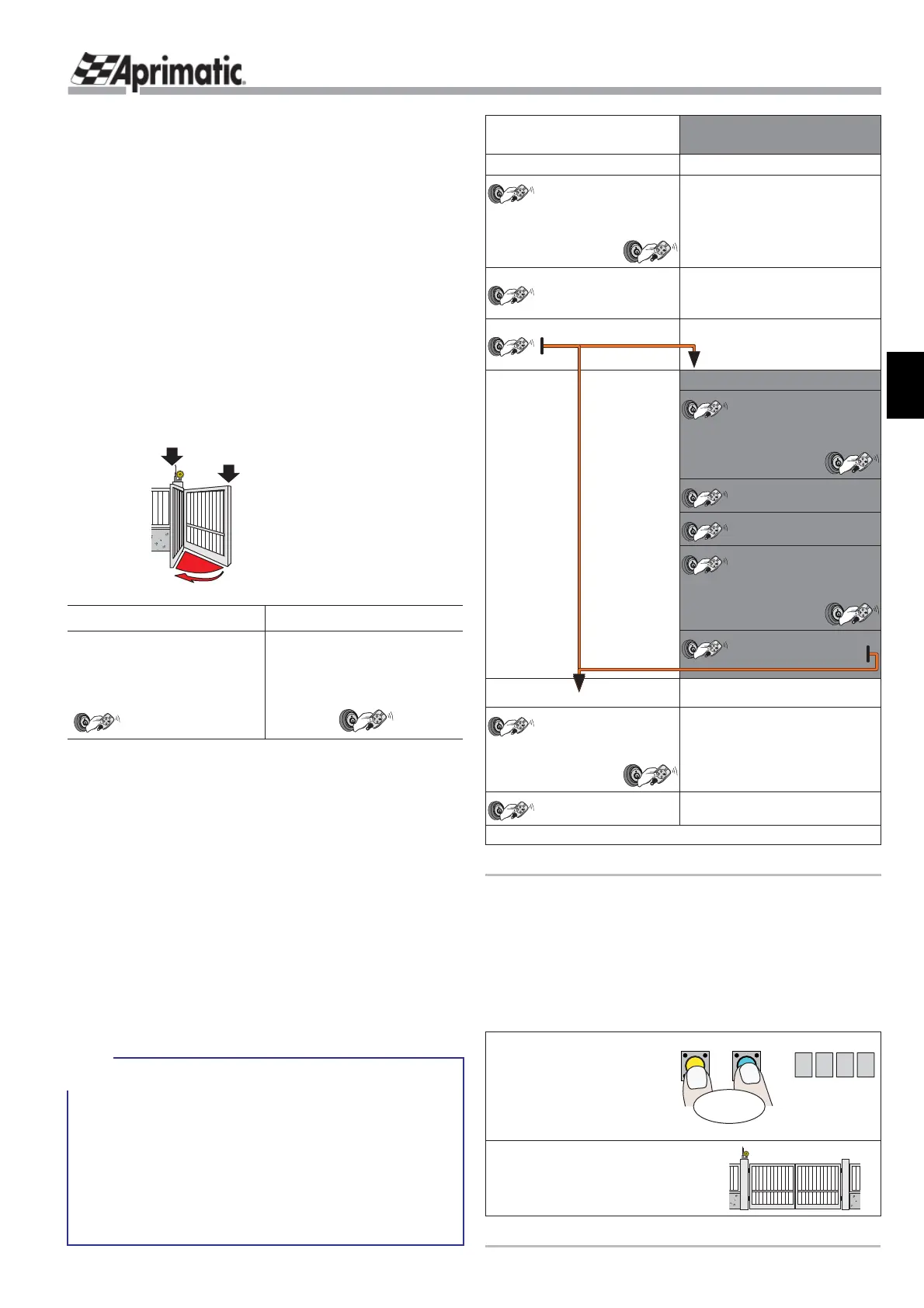

SELF-TEACH movementsfi g. 6 -
IMPORTANT
: to start self-teaching
the gate must be stopped and
closed. Use the special control to
close the gate.
Press the
YELLOW
and
BLUE
buttons
simultaneously for
approximately 3
seconds.
Lrn fl ashes
on the display.
Ö
3 "
L r N
_
_
-
YELLOW
BLUE
display
during
LRn
Enabling SELF-TEACHfi g. 7 -
