- 24 -
English
SWING APRICODE 230
CONTROL UNIT

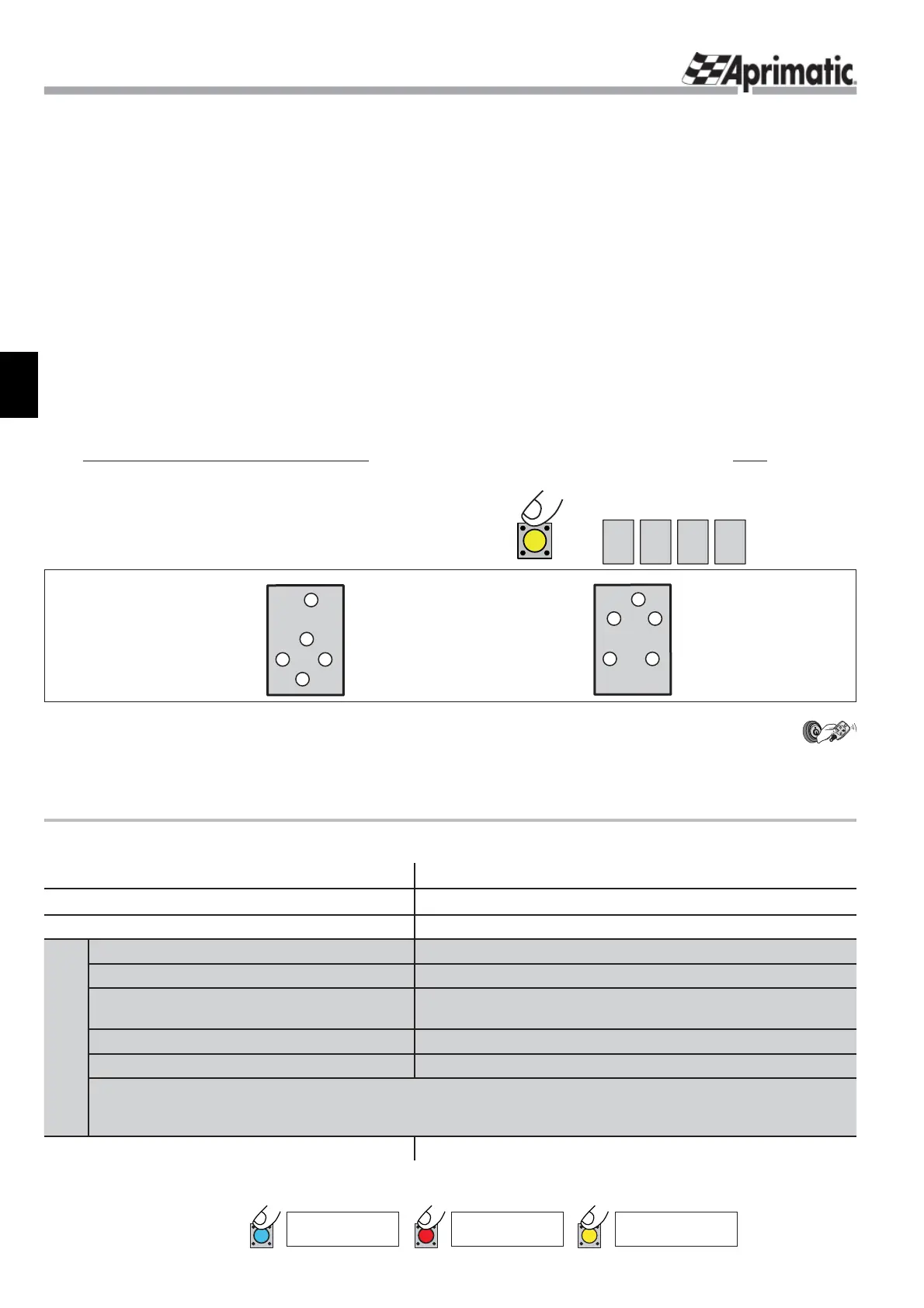

T4.3 esting on the display
To switch ON the display, press the •
YELLOW
button once
quickly. To switch OFF the display, press the
YELLOW
button once quickly.
display 1: GATE STATUS
C =
CLOSED
b =
OPENING
A =
OPEN
d =
CLOSED
E =
LOCKED
8
2
4
5
6
7
display 2: INPUTS
(on=contact closed)
2 = CLOSING PHOTOCELL
4 = PEDESTRIAN START
5 =
SAFETY DEVICE during OPENING
6 = START
7 = STOP
8
1
2
3
46
display 4: OUTPUTS
(on=output active)
1 = FLASHING
2 = ELECTRIC LOCK
3 = WARNING LIGHT
4 = WING 2 MOTOR
6 = WING 1 MOTOR
IMPORTANT:
BLUE
To select
RED
To confi rm
YELLOW
To exit
Inputs and outputs4.2
•
START
(using button with N.O. contact or remote control) - starts the automation (opening or closing) on the basis of the
current state and the operating logic settings.
•
STOP
(button with N.C. contact) - the
input stops the wing immediately. A START pulse is required to continue movement.
The STOP input has priority over all other functions at all times.
• Closing photocells - these photocells are only enabled on the closing stroke. When triggered they will stop the movement
for 1 second and then start to reopen the gate. These photocells will prevent closing as long as they are covered.
• Auxiliary safety edge operating on opening stroke - this is a safety input enabled during the opening stroke. The
safety edge will trigger if it touches an obstruction during the opening stroke. The wings will reverse for a short distance
and then stop. To complete the movement which has been interrupted in this way, you must press
START
. This will complete
the movement in safe mode, i.e. at slow speed with the warning light permanently lit.
• Auxiliary opening safety photocells - these photocells detect obstacles on the opening and closing strokes; they will
trigger on detecting an obstruction and stop the wings. The movement will only restart when the photocells are uncovered.
After a pause of 1 second, the movement will restart in the original direction.
• Flashing light - to signal the status of the automation: • fl ashing every 1 sec.
normal functioning; • light ON
operation
under safe conditions; • fl ashing every 0.5 sec.
routine maintenance required. If the fl ashing light is not used then the
pre-fl ashing function must be disabled (lam) by setting it to 0 seconds.
• Warning light - this is a remote signal indicating the current status of the operator: • light OFF
gate closed; • light ON
gate open or opening; • light fl ashing
gate closing. /Auxiliary output using external relay depending on (ae) parameter:
2 sec pulse type with activation by remote control (
ch1
-
4
) (ex: pedestrian gate electric lock actuation) OR timer (ex: lighting).
• Courtesy light - ON when
START
or
PEDESTRIAN START
is pressed, with programmable timer (ae).
Error codes and Warnings4.3.1
when • Init appears
press the
YELLOW
and
BLUE
simultaneously for approx. 3 seconds.
Lrn fl ashes on display
press
START
Routine maintenance is required if • MAN fl ashes for approximately 3 seconds when programming is accessed.
ERRORS: • Er0 = access to both memories; Er1 = access to plug-in memory module; Er2 = photocell test; Er3 = safety edge test.
PROGRAMMING5.
IMPORTANT
! The gate must be stopped and closed before you can start programming.
WARNING: All input signals will be ignored during programming.
Press and hold
RED button
the display shows PROC
Release the
RED button
displays the fi rst parameter with the value set LO.0
BLUE
scrolls through the parameters
MODIFICATIONS to
SETTINGS
RED
when a parameter shown
shows the value set (marked by the bullet)
pressing the BLUE button
scrolls through the values
Press and hold the
RED
button for 3 seconds
to select a new value
3 fl ashes confi rm the modifi cation
Release the
RED button
the new setting is displayed
YELLOW
returns to the parameters
The parameter has now been modifi ed. More modifi cations can be made before you exit the programming function.
WARNING: modifi cations are only confi rmed when you exit the programming function (display switched OFF).
If the power supply fails for any reason during programming, all the modifi cations you have made will be lost.
To EXIT programming:
press the
YELLOW
button until the display is switched OFF
Parameters enabling RESET or operations involving MEMORIES: before the modifi cation is confi rmed the display shows SURE,
if confi rmation is given (RED button) fl ashes for 3 sec. donE (positive outcome) o Er + error code in the event of failure.
Ö
8 8 8 8
1 2 3 4
YELLOW
DISPLAY
