- 22 -
English
SWING APRICODE 230
CONTROL UNIT
Saving the remote controls3.5
IMPORTANT
! The gate must be closed before you can start
saving or cancelling settings.
At the end of programming, check the functioning of the
saved remote controls : button 1 will give the
START
command and button 2 will give the
PEDESTRIAN START
command
(see beside fi gure)
- unless otherwise output channel
programming
.
On the built-in receiver APRICODE3.5.1
NOTE
:
These instructions are only valid for remote controls in
mode 0.
Enter the programming menu • (see
Par. Programming
).
Select the parameter • rad I and press the RED button to
confi rm
the menu "Memories" opens.
Press the RED button to confi rm • Open
the saving time
is enabled for 15 sec. (the displays show SEED).
Until the displays show • SEED, press any button on the
remote control to be memorised
the displays show
memo and the
NUMBER
of the remote control (ADDRESS) this
confi rm the remote control has been saved.
! Record the ADDRESS so you can delete this remote control
as required. Until the displays show SEED other remote
controls can be memorised.
The programming procedure ends when 15 seconds •
elapse without any remote controls is saved.
IMPORTANT NOTE:
●
To LEAVE programming before the 15 seconds has elapsed,
press one of the buttons on the programmed remote control; all
the values confi rmed will be saved.
●
To DELETE all the programmed remote controls use the r.tr
parameter (see Programming), confi rm the fi rst time using the
RED button
1
.
●
To DELETE an individual remote control - parameter rn; scroll
to the address of the remote control you wish to delete and
confi rm using the RED button
1
.
●
To export all the remote controls saved you require a plug-in
memory module (see our catalogue) - parameter UPLd and
dnLd; confi rm using the RED button
1
.
1
_ before making the change the word SURE is shown on the
display, if you wish to continue press the RED button again
the display fl ashes for 3 seconds and then the word donE is
displayed (positive conclusion) or the words Er + (see error
codes) are displayed (failure).
On the optional receivers, Unico (Memory 3.5.2
System) or RPL-ECO
WARNING!
To use the optional Unico (Memory System) or
RPL-ECO receivers, unplug and remove the built-in receiver
and its antenna
(see unit layout diagram)
.
● Plug the
UNICO
receiver into the connector
CN2
or the
RPL-ECO
receiver into the connector
CN1
(see unit layout
diagram)
.
● Connect the antenna and complete the remote control
teach programming using the instructions supplied with the
receiver.
12
34
2
1
1 ch1
2 ch2
3 ch3
4 ch4
see par. Programming.
2
1

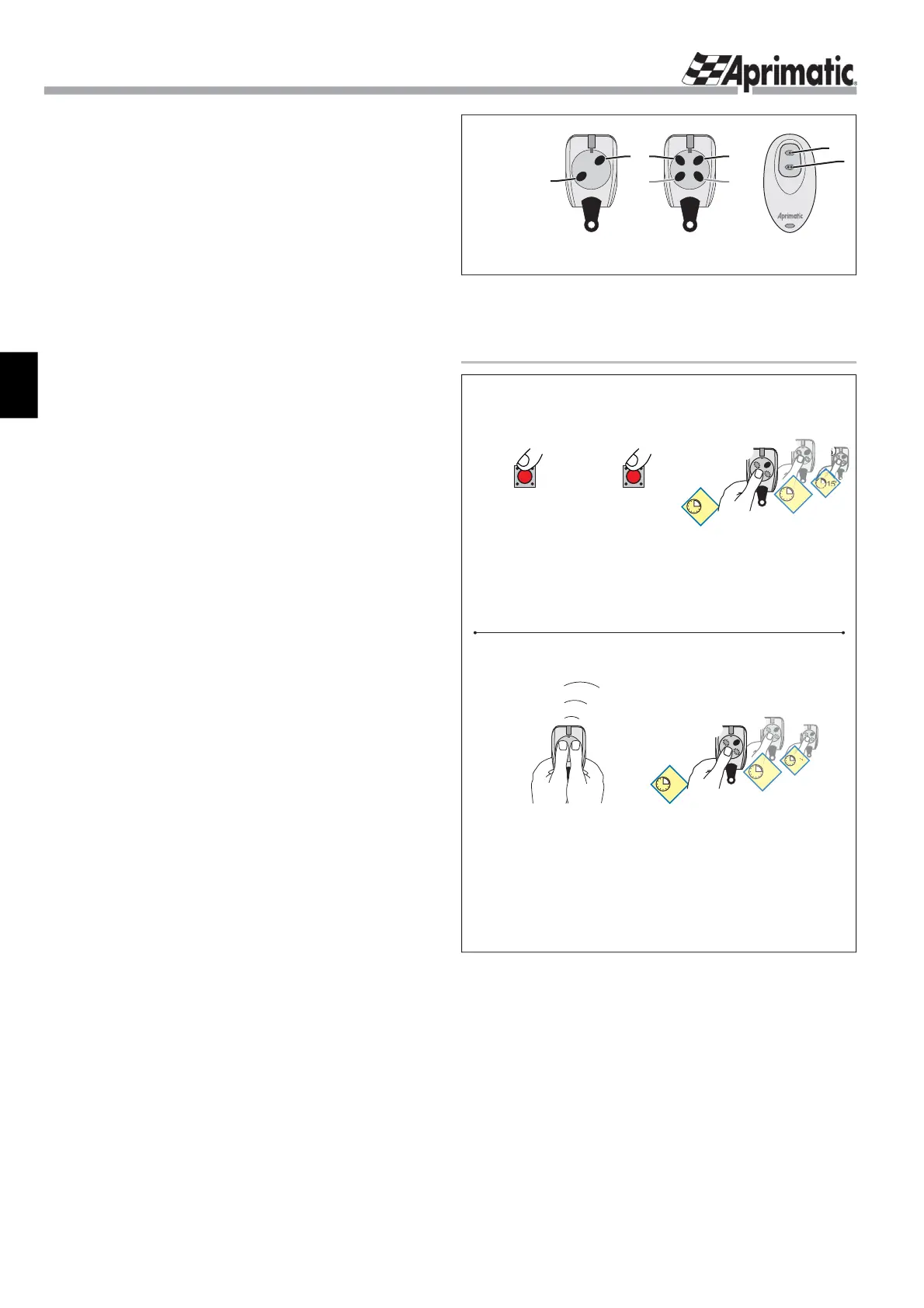

Saving the built-in receiver APRICODEfi g. 8 -
rad I
RED
15"
15"
c
d
e
open
RED
15"
15"
c
d
e
seed
seed
Using programming parameters
Remote control
already memorised
Press simultaneously the buttons • 1 and 2 on a remote
control already memorised.
Press any button on the remote control to be •
memorised (until the displays show SEED).
Remote controls
to be memorised
The saving can be quickly enabled using a remote
control already memorised.
Saving confi rmation: the displays show memo and the
NUMBER
of the remote control (ADDRESS).
memo 001 ÷ 999
memo 001 ÷ 999
