2-4 Chapter 2: Hardware information

Chapter 2

M4A88TD-V EVO

2.2.3 Placement direction

When installing the motherboard, ensure that you place it into the chassis in the correct

orientation. The edge with external ports goes to the rear part of the chassis as indicated in

the image below.

2.2.4 Screw holes

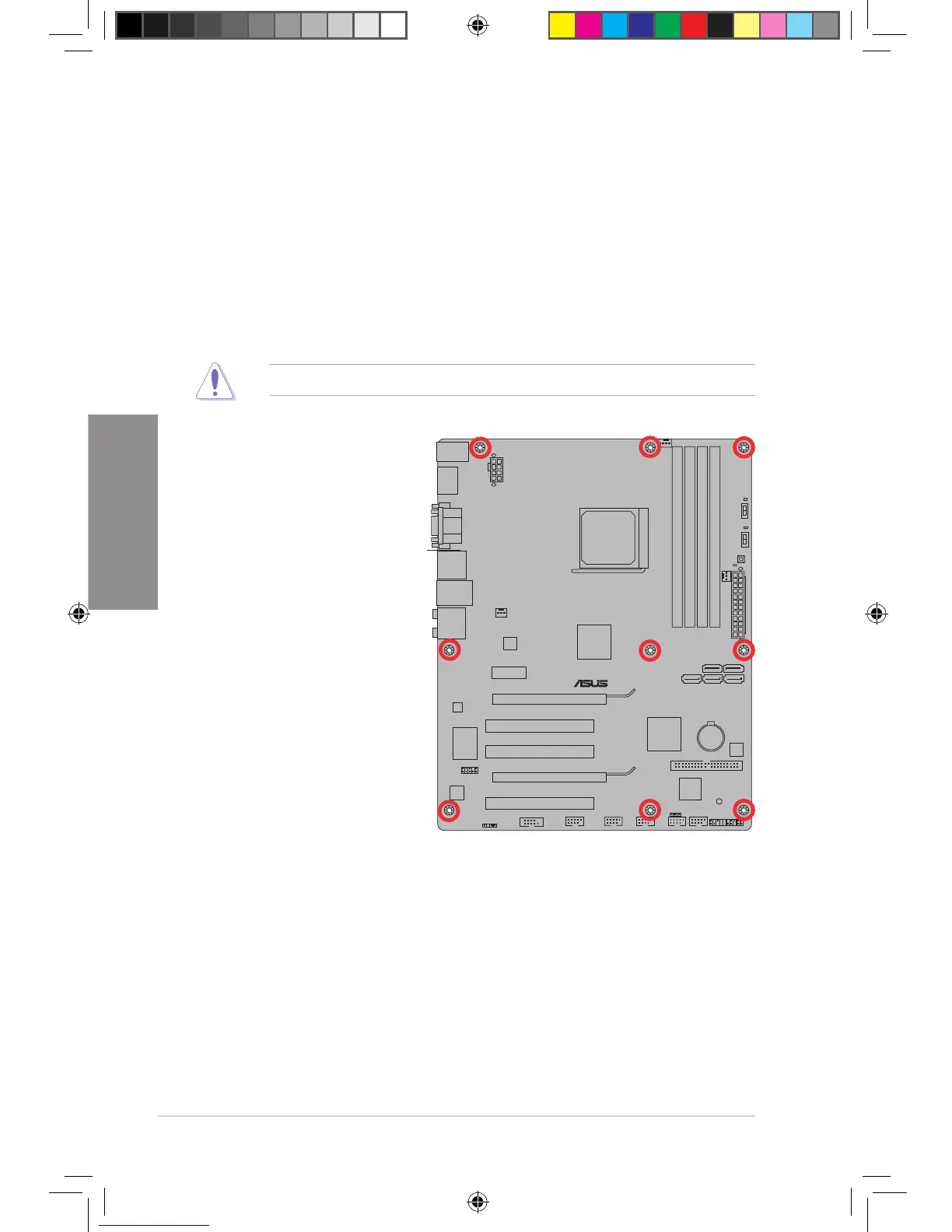

Place nine screws into the holes indicated by circles to secure the motherboard to the

chassis.

DO NOT overtighten the screws! Doing so can damage the motherboard.

Place this side towards

the rear of the chassis

E5889_M4A88TD-V EVO_Contents V2.4 4 5/26/10 4:03:35 PM
