2.9 Onboard LEDs

1. Standby Power LED

The motherboard comes with a standby power LED. The green LED lights up to

indicate that the system is ON, in sleep mode, or in soft-off mode. This is a reminder

that you should shut down the system and unplug the power cable before removing or

plugging in any motherboard component. The illustration below shows the location of

the onboard LED.

2. DRAM LED

DRAM LED checks the DRAM in sequence during motherboard booting process. If an

error is found, the LED next to the error device will continue lighting until the problem is

solved. This user-friendly design provides an intuitional way to locate the root problem

within a second.

M4A88TD-V EVO

SB_PWR

Standby Power Powered Off

OFF

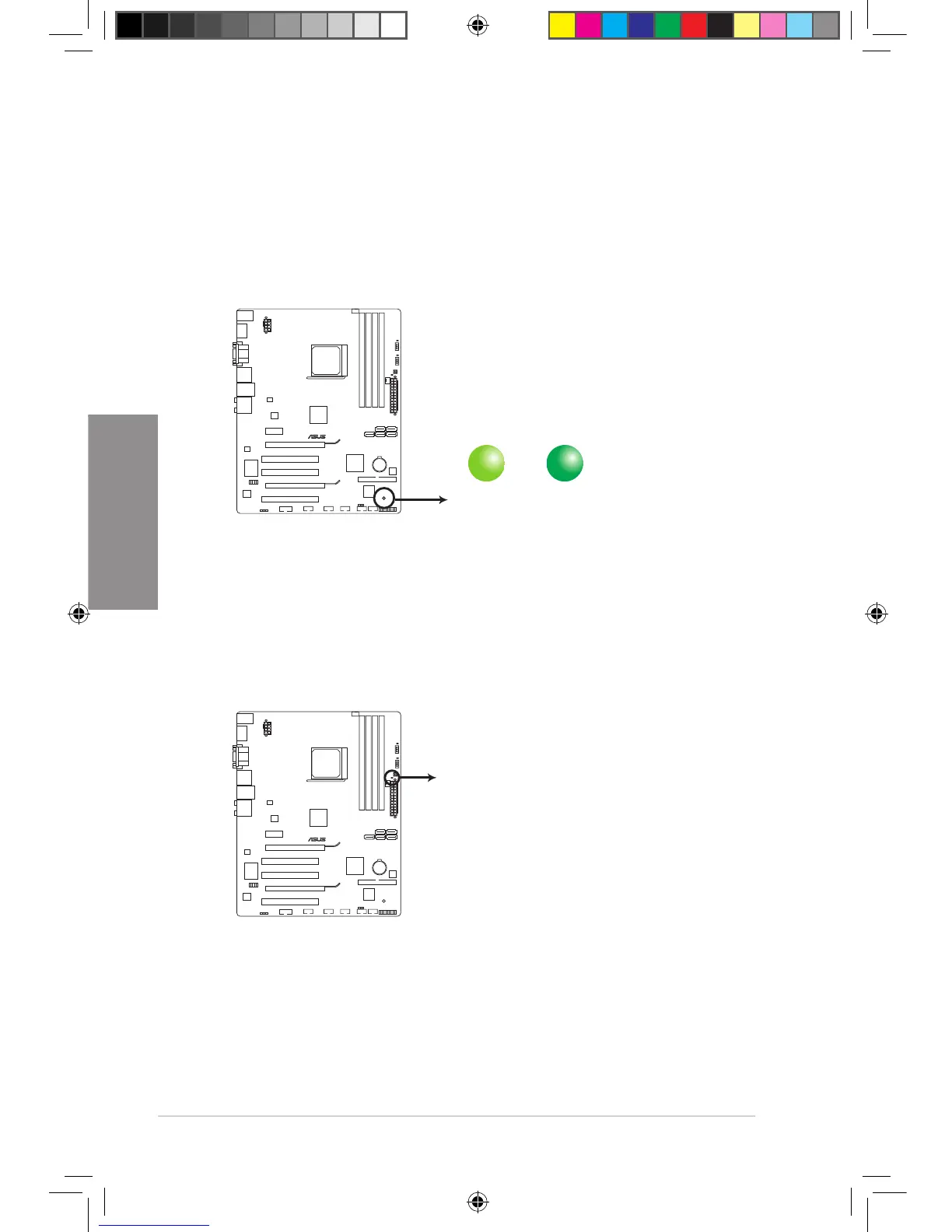

M4A88TD-V EVO Onboard LED

M4A88TD-V EVO

M4A88TD-V EVO DRAM LED

DRAM LED
