Asus M4A88TD-V EVO User Manual

ASUS M4A88TD-V EVO 2-7
Chapter 2
2.3.2 Installing the CPU heatsink and fan
The AMD
®
AM3 processor requires a specially designed heatsink and fan assembly to ensure
optimum thermal condition and performance.
To install the CPU heatsink and fan:

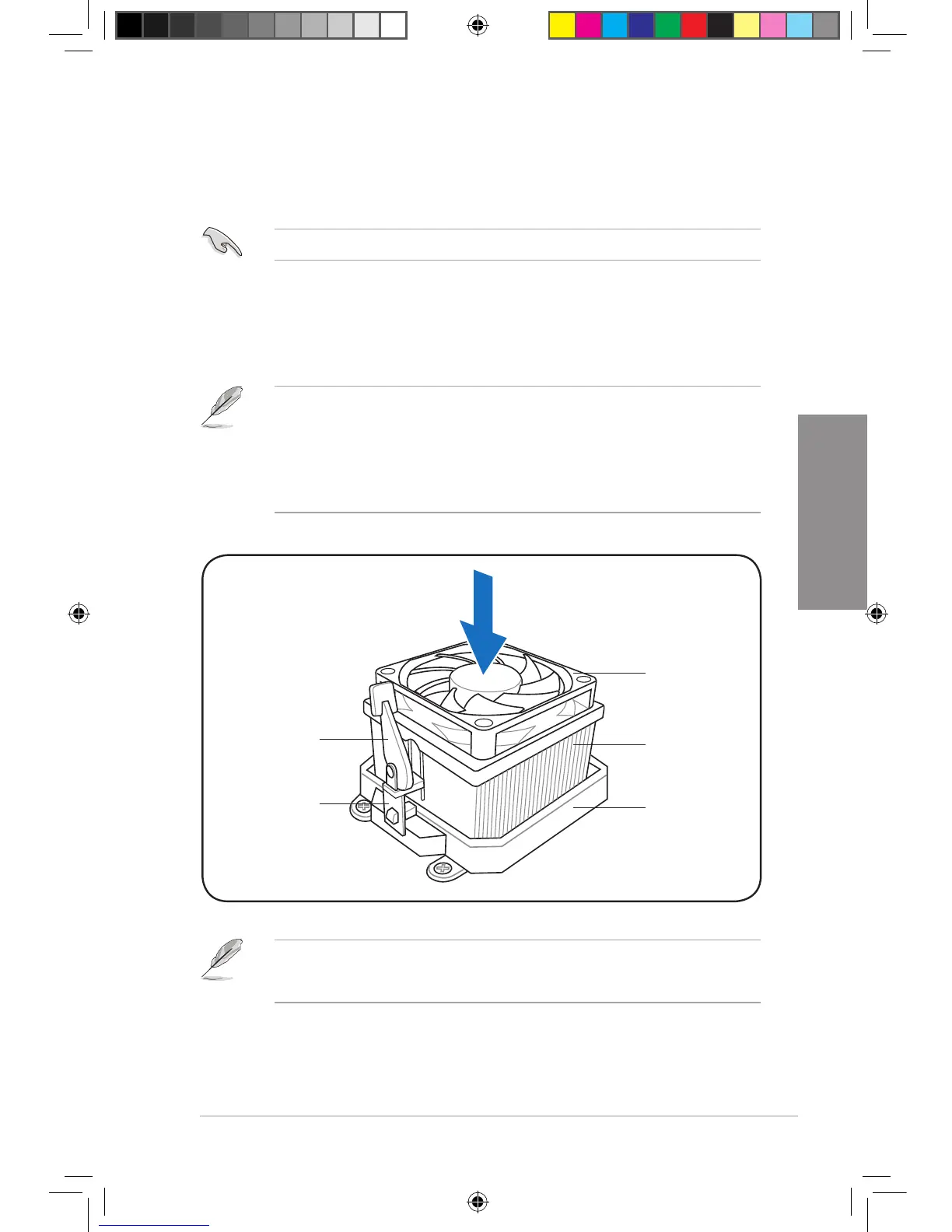

1. Place the heatsink on top of the installed CPU, ensuring that the heatsink ts properly
on the retention module base.
Your boxed CPU heatsink and fan assembly should come with installation instructions for
the CPU, heatsink, and the retention mechanism. If the instructions in this section do not
match the CPU documentation, follow the latter.
• The retention module base is already installed on the motherboard upon purchase.
• You do not have to remove the retention module base when installing the CPU or
installing other motherboard components.
• If you purchased a separate CPU heatsink and fan assembly, ensure that a Thermal
Interface Material is properly applied to the CPU heatsink or CPU before you install
the heatsink and fan assembly.
Ensure that you use only AMD-certied heatsink and fan assembly.
Retention module
base
CPU heatsink
CPU fan
Retention bracket
lock
Retention bracket
E5889_M4A88TD-V EVO_Contents V2.7 7 5/26/10 4:03:47 PM
