ASUS M4A88TD-V EVO 3-25
Chapter 3
NorthBridge Chipset Conguration

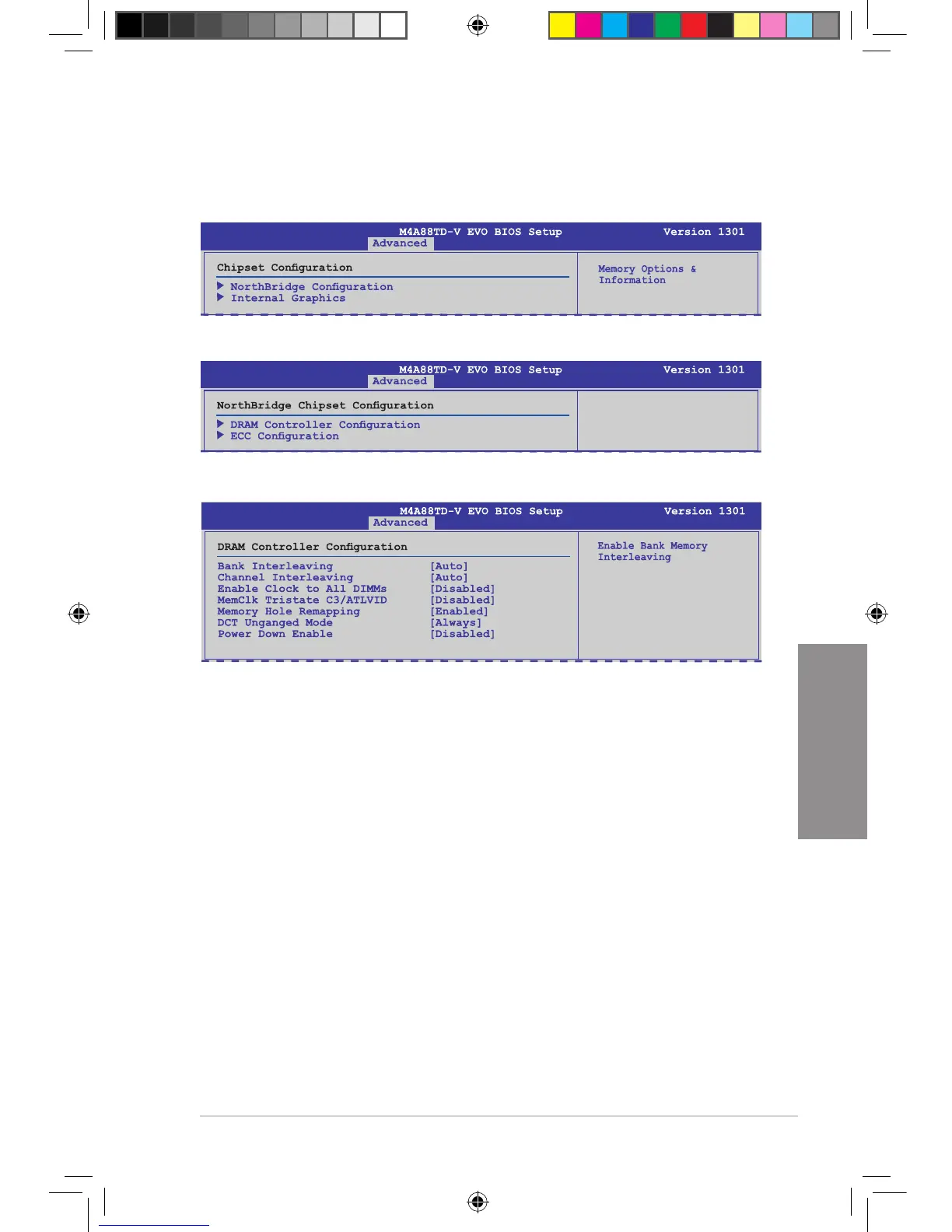

3.6.2 Chipset
The Chipset menu allows you to change the advanced chipset settings. Select an item then
press <Enter> to display the submenu.
DRAM Controller Conguration
Bank Interleaving [Auto]
Allows you to enable the bank memory interleaving. Conguration options: [Auto] [Disabled]
Channel Interleaving [Auto]
Conguration options: [Disabled] [Address bits 6] [Address bits 12] [Auto]
[XOR of Address bits [20:16, 6]] [XOR of Address bits [20:16, 9]
Enable Clock to All DIMMs [Disabled]
Enables unused Clocks to DIMMs even though memory slots are not populated.
Conguraiton options: [Enabled] [Disabled]
MemClk Tristate C3/ATLVID [Disabled]
Conguration options: [Disabled] [Enabled]
E5889_M4A88TD-V EVO_Contents V2.25 25 5/26/10 4:05:14 PM

Asus M4A88TD-V EVO Specifications

General

Socket	AM3
Chipset	AMD 880G
Memory Slots	4
Memory Type	DDR3
Max Memory	16GB
Memory Standard	DDR3 2000(O.C.)/1333/1066
PCI Express x16	2
PCI Express x1	1
PCI Slots	2
SATA 3Gb/s	5
SATA 6Gb/s	1
USB 2.0 Ports	12
USB 3.0 Ports	2
Form Factor	ATX
Onboard Video	ATI Radeon HD 4250
Onboard LAN	Realtek 8111E Gigabit LAN
CrossFire Support	Yes
Onboard Audio	Realtek ALC892
RAID Support	RAID 0, 1, 10
