Atari 130XE User Manual

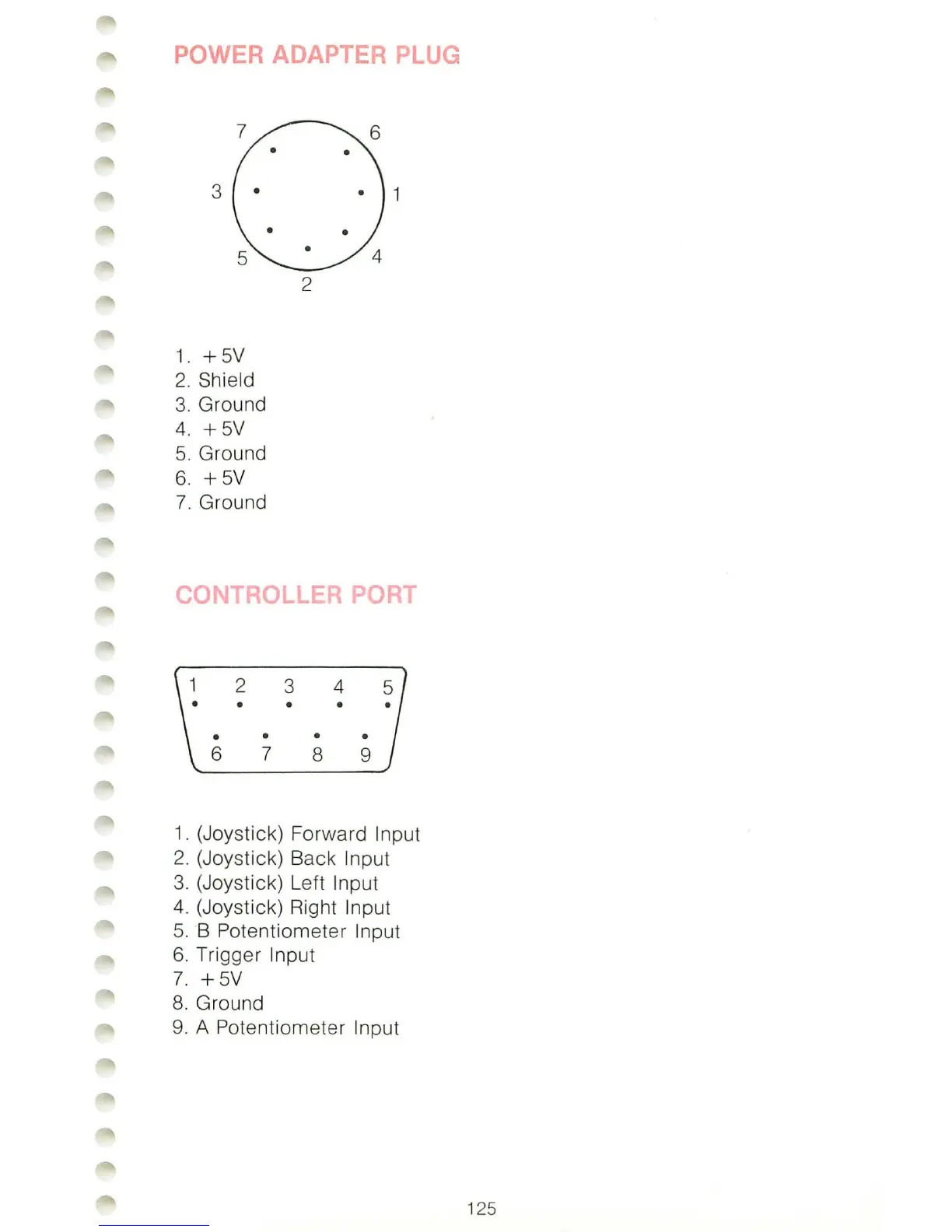

POWER ADAPTER PLUG
3
2
1. + 5V
2. Shield
3. Ground
4. +5V
5. Ground
6. +5V
7. Ground
CONTROLLER PORT
234
•
6 7
8 9
1. (Joystick) Forward Input
2. (Joystick) Back Input
3. (Joystick) Left Input
4. (Joystick) Right Input
5. B Potentiometer Input
6. Trigger Input
7. +5V
8. Ground
9. A Potentiometer Input
125
