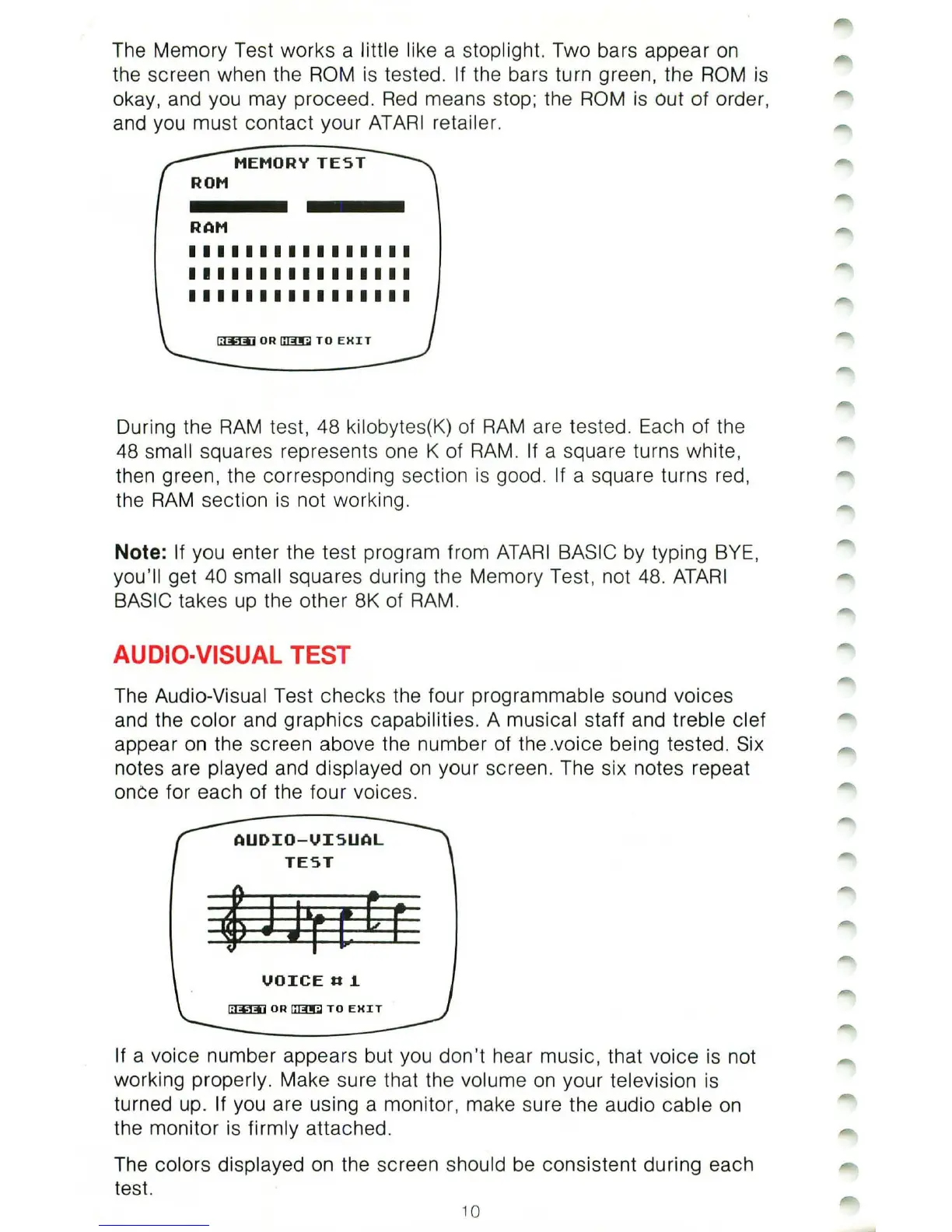

The Memory Test works a little like a stoplight. Two bars appear on
the screen when the ROM is tested. If the bars turn green, the ROM is
okay, and you may proceed. Red means stop; the ROM is out of order,
and
you must contact your ATARI retailer.
MEMORY TEST
ROM
RAM
I I I I I I I I I I I I I I I I
1111111111111111
I I I I I I I I I I I I I I I I
~ OR I:§!Ii1 TO EKIT
During the RAM test, 48 kiloby te s (K) of RAM are tested. Each of the
48 small squares represents one K of RAM . If a square turns white,
then green, the corresponding section is good.
If a square turns red,
the
RAM section is not working .
Note: If you enter the test program from ATARI BASIC by typing BYE ,
you'll
get 40 small squares during the Memory Test, not 48. ATARI
BASIC takes up the other 8K of RAM .
AUDIO·VISUAL TES T
The Audio-Visual Test checks the four programmable sound voices
and the color and graphics capabilities. A musical staff and treble
clef
appear on the screen above the number of the .voice being tested. Six
notes are played and displayed on your screen. The six notes repeat
once for each of the four voices.
AUDIO-VISUAL
TEST
VOICE
n 1.
If a voice number appears but you don't hear music, that voice is not
working properly. Make sure that the volume
on your television is
turned up . If you are using a monitor, make sure the audio cable on
the monitor is firmly attached.
The colors displayed
on the screen should be consistent during each
test.
10
