2.3 Cooling and condensate system

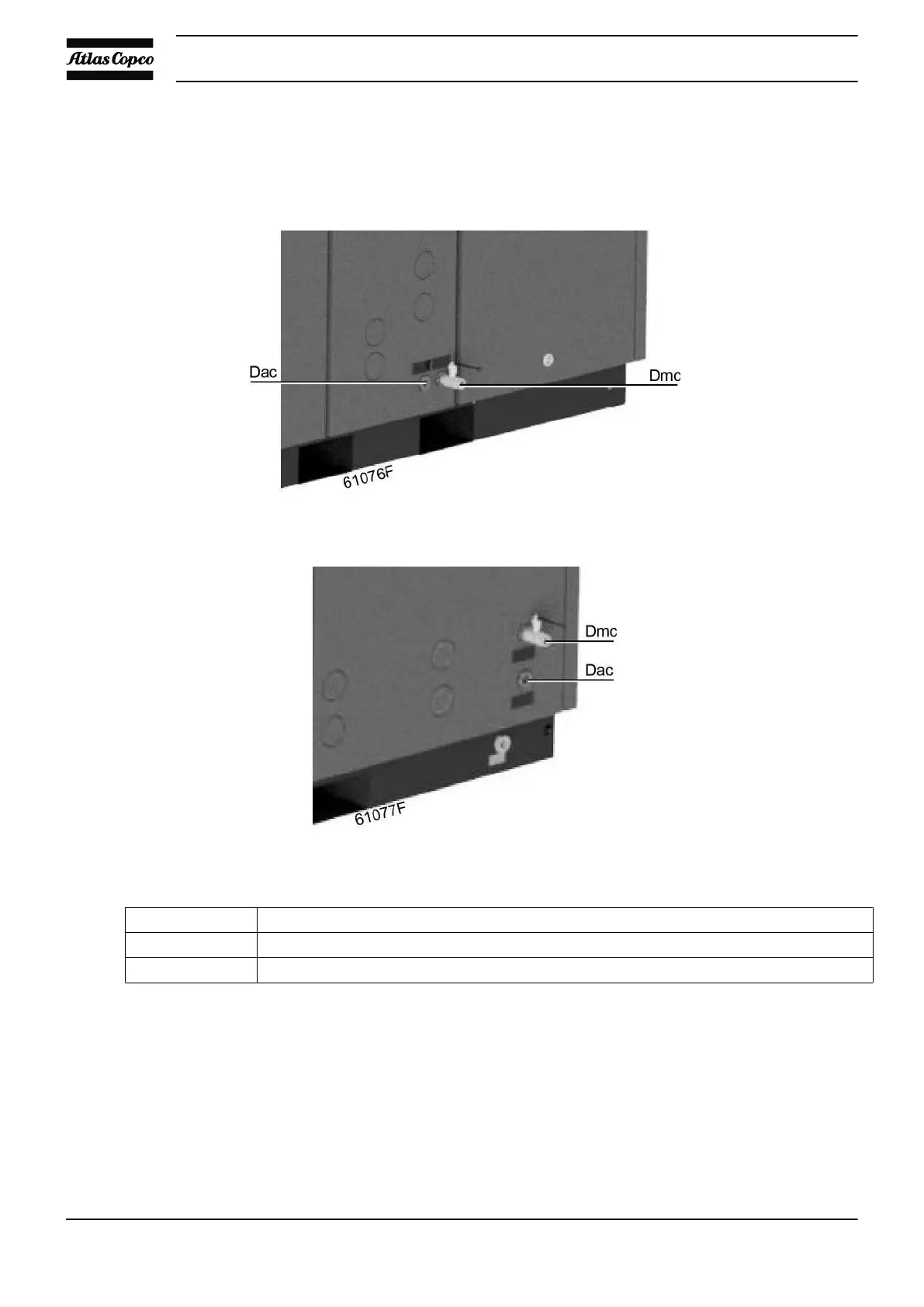

Condensate drain system
Condensate drains, Pack version
Condensate drains, Full-Feature version
Reference Designation
Dac Automatic condensate drain outlet
Dmc Manual condensate drain outlet
A condensate trap is installed downstream of the air cooler to prevent condensate from entering
the air outlet pipe. The trap is provided with a level sensor and solenoid valve for automatically
draining condensate and with a manual drain valve.
This condensate can contain small amounts of oil and should be processed according to local
environmental legislation.
On Full-Feature units, the condensate formed in the dryer collects in the lower part of the heat
exchanger/evaporator. When the condensate in the electronic drain reaches a certain level, it is
drained via the automatic drain outlet (Dac)
